What Is a FanGrid?

A Smarter, More Reliable Solution for Air Handling Systems

In modern HVAC engineering, achieving consistent airflow, energy efficiency, and system reliability is more critical than ever. Traditional large single-fan configurations are giving way to a more intelligent, scalable alternative — the FanGrid system.

But what exactly is a FanGrid, and why is it becoming the preferred solution for many air handling units (AHUs) and ventilation systems?

Let’s break it down.

What Is a FanGrid?

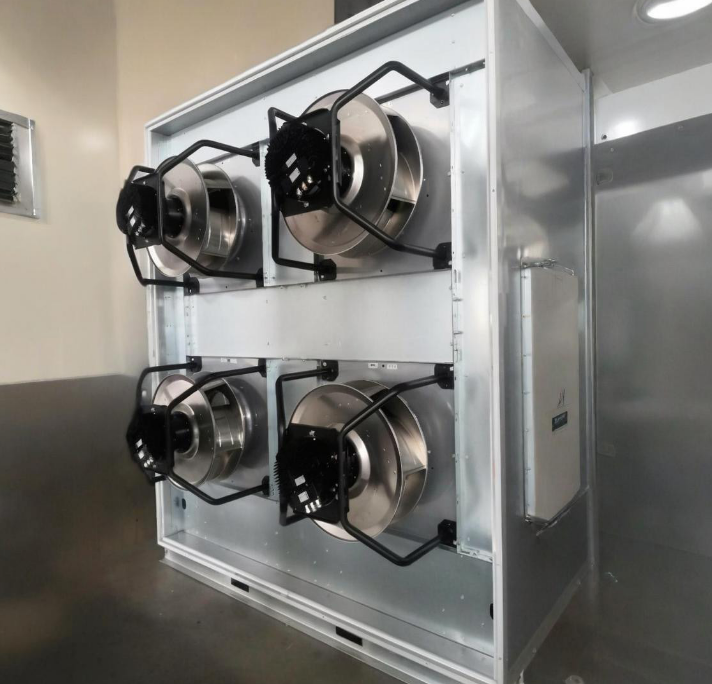

A FanGrid, also known as a modular fan wall or parallel fan array, is a configuration where multiple smaller fans are installed side-by-side to replace a single large fan in an air handling unit (AHU) or ventilation chamber.

These fans work in parallel, distributing airflow evenly across the outlet and improving both air distribution and redundancy. Each fan in the grid is typically an EC plug fan — energy-efficient, quiet, and easy to control.

✅ Key Advantages of FanGrid Systems

1. Redundancy and Reliability

If one fan fails, the system continues operating with the remaining fans. This built-in backup prevents system shutdowns, making FanGrid systems ideal for mission-critical HVAC applications such as:

• Data centers

• Hospitals

• Cleanrooms

• Laboratories

2. Even Airflow Distribution

With multiple fans operating simultaneously, FanGrids produce more uniform airflow across the coil face, improving the performance of heat exchangers and reducing energy waste.

3. Compact & Space-Saving Design

Because smaller fans can be arranged to fit within shorter or tighter air chambers, FanGrids reduce the length of the fan section in AHUs — a major advantage in retrofits or compact equipment designs.

4. Energy Efficiency

FanGrid configurations use EC motors (electronically commutated), which offer up to 50% energy savings over conventional AC fans.
They also support 0–10V or PWM control signals, enabling stepless speed control and smart automation via BMS systems.

5. Easy Maintenance

No belts, no pulleys, no lubrication. Most EC plug fans in FanGrids use sealed maintenance-free ball bearings, simplifying service and reducing downtime.

6. Flexible Expansion

Need more airflow capacity? Simply add more fans to the grid. This modular design makes scaling up easy for AHU manufacturers and HVAC contractors.

Where Are FanGrid Systems Used?

FanGrid systems are increasingly adopted in:

• ️ Commercial HVAC AHUs

• Cleanroom ventilation

• Data center cooling

• Hospital and healthcare HVAC systems

• Industrial ventilation projects

• Retrofit upgrades for existing fan units

Belmont Fan's FanGrid-Ready Solutions

At Belmont Fan, we manufacture a wide range of EC plug fans optimized for FanGrid use.

Our FanGrid-ready centrifugal fans feature:

• ✅ Backward curved impeller design for high static pressure

• ✅ Power range from 250W to 3000W

• ✅ Sizes: 250mm to 630mm

• ✅ IP54/IP55 ratings for humid or dusty environments

• ✅ Support for MODBUS-RTU, PWM, and 0–10V control

With over 24 years of fan manufacturing experience, we support OEMs and system integrators with OEM/ODM customization, technical drawings, and fast delivery worldwide.

Ready to Upgrade to a FanGrid?

Whether you're building a new AHU or retrofitting an outdated fan section, a FanGrid system offers better airflow control, lower energy consumption, and unmatched redundancy.

Let Belmont Fan help you design the most efficient ventilation system for your application.

Email: ann@belmont-tech.com
Website: www.belmont-tech.com
WhatsApp: +86 133 2817 6208
