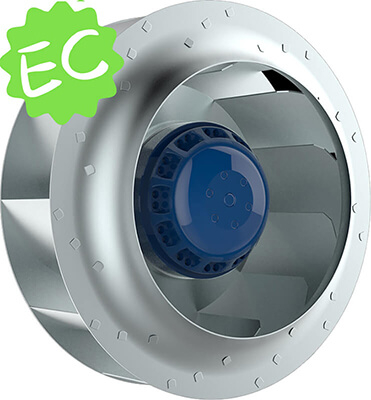

BMF-280-400 Series EC Backward Curved Centrifugal Fans
Product Description
EC Backward Centrifugal Fans.pdf
OUR PRODUCTS
BMF-280-400 Series EC Backward Curved Centrifugal Fans
Centrifugal fan with backward curved blades is mainly used for air intake. Since most of the pressure buildup occurs in the impeller, a vortex housing is generally not required. Centrifugal fans have excellent hydraulic efficiency and low noise levels, making them ideal for high pressures.
Application: centrifugal fans are used in applications such as central air conditioning installation or ventilation systems of buildings.
Customized manufacturing available
SPECIFICATIONS
Model | Size (mm) | Voltage (V) | Frequency (Hz) | Input Power (W) | Current (A) | Air Volume (m3/h) | Noise (dBA) | Max Environmental Temperture(℃) | Weight (Kg) |
BMF-6E280 | 280 | 230 | 50/60 | 245 | 1.7 | 1700 | 75 | 50 | 3.6 |
BMF-6E280-01 | 280 | 230 | 50/60 | 745 | 5.43 | 3500 | 83 | 50 | 6.8 |
BMF-6D280 | 280 | 400 | 50/60 | 1140 | 1.86 | 4150 | 74 | 50 | 6.8 |
BMF-6E280-02 | 280 | 230 | 50/60 | 730 | 3.2 | 3600 | 73 | 50 | 7.0 |
BMF-6E310 | 310 | 230 | 50/60 | 250 | 1.87 | 2100 | 69 | 50 | 3.8 |
BMF-6E310 | 310 | 230 | 50/60 | 410 | 303 | 3400 | 69 | 50 | 6.7 |
BMF-8D310 | 310 | 400 | 50/60 | 1650 | 2.8 | 4900 | 82 | 50 | 13.0 |
BMF-6E355 | 355 | 230 | 50/60 | 270 | 2.3 | 2700 | 70 | 50 | 5.5 |
BMF-8D355 | 355 | 400 | 50/60 | 1100 | 1.8 | 6360 | 73 | 50 | 12.5 |
BMF-8D355-01 | 355 | 400 | 50/60 | 3250 | 5.1 | 8350 | 86 | 50 | 17.0 |
BMF-8D355-02 | 355 | 400 | 50/60 | 1700 | 2.7 | 6600 | 75 | 50 | 13.0 |
BMF-8D400 | 400 | 230 | 50/60 | 560 | 4.0 | 5050 | 75 | 50 | 7.0 |
BMF-8E400 | 400 | 230 | 50/60 | 370 | 1.65 | 3920 | 67 | 50 | 6.5 |
BMF-8D400-01 | 400 | 400 | 50/60 | 3350 | 5.0 | 9100 | 86 | 50 | 22.0 |
BMF-8D400-02 | 400 | 400 | 50/60 | 1580 | 2.5 | 7600 | 77 | 50 | 22.0 |
