Product Description
EC Backward Centrifugal Fans.pdf
OUR PRODUCTS

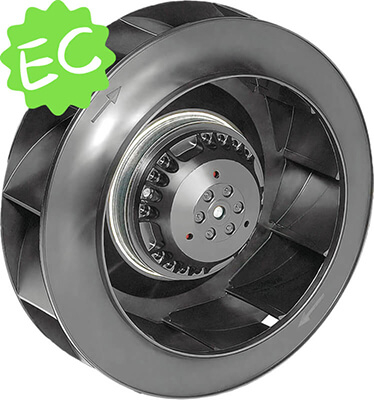

BMF-133-250 Series EC Backward Curved Centrifugal Fans
Centrifugal fan with backward curved blades is mainly used for air intake. Since most of the pressure buildup occurs in the impeller, a vortex housing is generally not required. Centrifugal fans have excellent hydraulic efficiency and low noise levels, making them ideal for high pressures.
Application: centrifugal fans are used in applications such as central air conditioning installation or ventilation systems of buildings.
Customized manufacturing available
SPECIFICATIONS
Model | Size (mm) | Voltage (V) | Frequency (Hz) | Input Power (W) | Current (A) | Air Volume (m3/h) | Noise (dBA) | Max Environmental Temperture(℃) | Weight (Kg) |
BMF-4E133 | 133 | 230 | 50/60 | 47 | 0.39 | 335 | 64 | 50 | 1.2 |
BMF-4E175 | 175 | 230 | 50/60 | 125 | 1.0 | 720 | 75 | 50 | 1.3 |
BMF-4C190 | 190 | 24 | 65 | 2.7 | 670 | 68 | 50 | 1.0 | |
BMF-4E192 | 192 | 230 | 50/60 | 120 | 1.0 | 750 | 65 | 50 | 1.5 |
BMF-6E192 | 192 | 230 | 50/60 | 171 | 1.3 | 956 | 73 | 50 | 2.2 |
BMF-4E220 | 220 | 230 | 50/60 | 115 | 1.0 | 1000 | 65 | 50 | 1.5 |
BMF-6E220 | 220 | 230 | 50/60 | 105 | 1.0 | 990 | 66 | 50 | 2.4 |
BMF-6E220-01 | 220 | 230 | 50/60 | 180 | 1.3 | 1200 | 68 | 50 | 2.4 |
BMF-4E225 | 225 | 230 | 50/60 | 95 | 0.8 | 1025 | 65 | 50 | 1.7 |
BMF-6E225 | 225 | 230 | 50/60 | 210 | 1.6 | 1280 | 68 | 50 | 2.6 |
BMF-6E250 | 250 | 230 | 50/60 | 270 | 1.8 | 1550 | 72 | 50 | 3.4 |
BMF-6E250-01 | 250 | 2130 | 50/60 | 540 | 2.38 | 2850 | 74 | 50 | 5.2 |
BMF-6E250-02 | 250 | 230 | 50/60 | 598 | 4.55 | 2750 | 76 | 50 | 5.2 |
BMF-6E250-03 | 250 | 230 | 50/60 | 803 | 3.47 | 2850 | 75 | 50 | 7.2 |
BMF-6D250 | 250 | 400 | 50/60 | 840 | 1.4 | 2850 | 75 | 50 | 7.2 |
RELATED PRODUCTS
BMF-280-400 Series EC Backward Curved Centrifugal Fans |
BMF-450-630 Series EC Backward Curved Centrifugal Fans |
 |  |
 |  |
 |  |
Introduction
◆ Founded in 2001 to provide high-quality products and sourcing solutions at a competitive cost.
◆ Manufacturing Facilities
Manufacturing plants located in multiple regions in China
◆ Service locations:
Fort Wayne, Indiana, USA(Responsible for after-sales service of products)
Changzhou, Jiangsu, China
◆ 2021 sales of $650 million
In 2021, 1 million fans and 600,000 motors will be produced
◆ The total number of employees is 268, including 20 technical teams and 26 sales team
Our Quality Control
◆ Quality is everyone’s job → TQM -Total Quality Management
◆ Higher quality means lower costs → TQC – Total Quality Cost Control.
◆ Continuous Improvement → ISO9000 & Six Sigma Tools
◆ Working with customer as a Team → Teamwork & Two Way Communications
Our customers
Your satisfaction is always our goal
