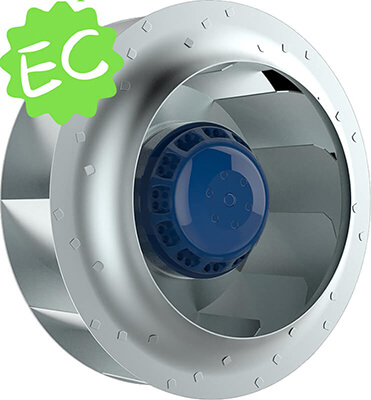

BMF-450-630 Series EC Backward Curved Centrifugal Fans
Belmont
BMF-450-630 Series EC Backward Curved Centrifugal Fans
Product Description
EC Backward Centrifugal Fans.pdf
OUR PRODUCTS
BMF-450-630 Series EC Backward Curved Centrifugal Fans
Centrifugal fan with backward curved blades is mainly used for air intake. Since most of the pressure buildup occurs in the impeller, a vortex housing is generally not required. Centrifugal fans have excellent hydraulic efficiency and low noise levels, making them ideal for high pressures.
Application: centrifugal fans are used in applications such as central air conditioning installation or ventilation systems of buildings.
Customized manufacturing available
SPECIFICATIONS
Model | Size (mm) | Voltage (V) | Frequency (Hz) | Input Power (W) | Current (A) | Air Volume (m3/h) | Noise (dBA) | Max Environmental Temperture(℃) | Weight (Kg) |
BMF-8E450 | 450 | 230 | 50/60 | 562 | 4.38 | 5500 | 74 | 50 | 10.5 |
BMF-8E450-01 | 450 | 230 | 50/60 | 795 | 3.44 | 5800 | 75 | 50 | 12.5 |
BMF-8D450 | 450 | 400 | 50/60 | 2950 | 4.5 | 10600 | 83 | 50 | 23.0 |
BMF-8D500 | 500 | 400 | 50/60 | 1250 | 2.1 | 8200 | 72 | 50 | 22.0 |
BMF-8D500-01 | 500 | 400 | 50/60 | 3460 | 5.75 | 12660 | 86 | 50 | 22.0 |
BMF-8D500-02 | 500 | 400 | 50/60 | 2800 | 4.4 | 12800 | 79 | 50 | 22.0 |
BMF-8E560 | 560 | 230 | 50/60 | 650 | 4.3 | 9500 | 70 | 50 | 22.0 |
BMF-8D560 | 560 | 400 | 50/60 | 3100 | 4.9 | 13500 | 81 | 50 | 26.0 |
BMF-8D560-01 | 560 | 400 | 50/60 | 3530 | 5.5 | 13500 | 85 | 50 | 22.0 |
BMF-8D560-02 | 560 | 400 | 50/60 | 3200 | 4.9 | 15100 | 81 | 50 | 26.0 |
BMF-8D630 | 630 | 400 | 50/60 | 2580 | 4.0 | 14200 | 80 | 50 | 37.0 |
BMF-8D630 | 630 | 400 | 50/60 | 3760 | 5.7 | 17000 | 79 | 50 | 64.0 |
