BMM-40ZYN
Belmont
BMM-40ZYN
Product Description

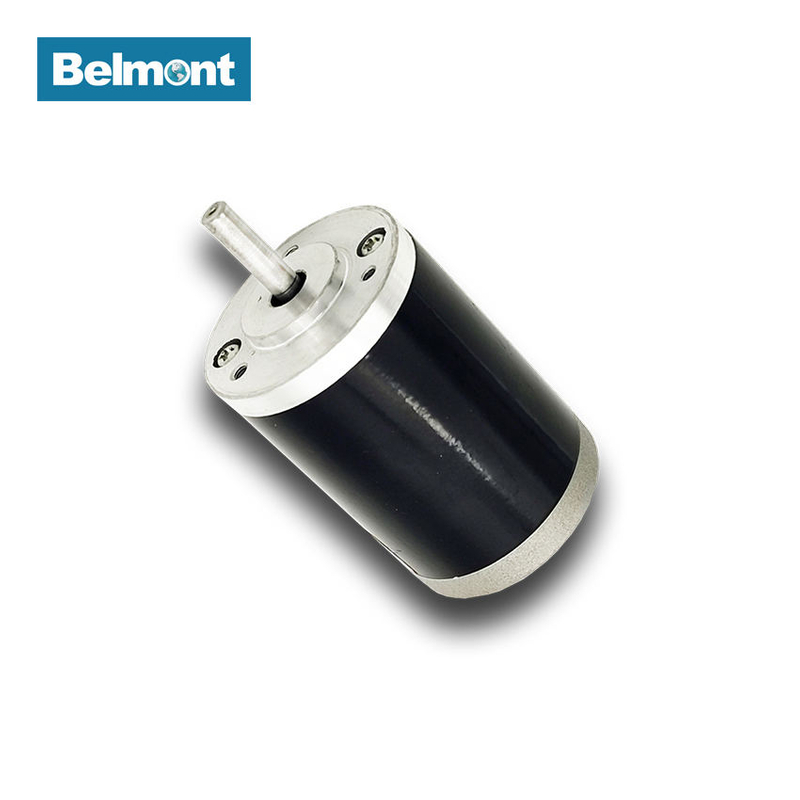

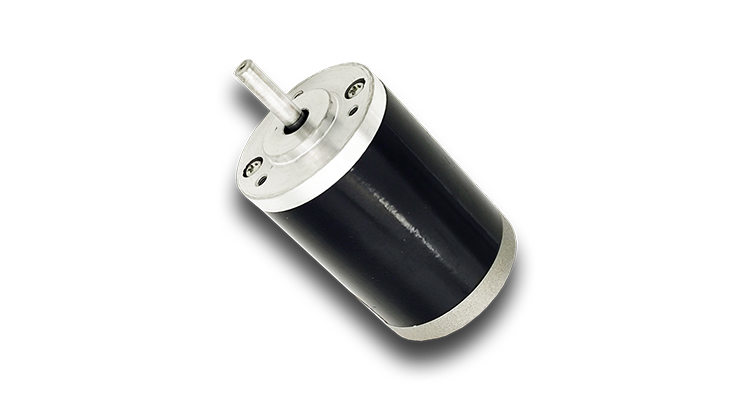

40mm high speed high torque 3000rpm 10w 24V electric dc motor
Product Application: Outdoor advertising, medical equipment, logistics transmission, mechanical equipment, solar tracking device, precision equipment etc.
Customized manufacturing available
| Model | VOLTAGE (VDC) | NO LOAD | RATED LOAD | TORQUE (Nm) | Power (W) | LENGTH (mm) | ||
CURRENT (A) | SPEED (r/min) | CURRENT (A) | SPEED (r/min) | |||||
BMM-40ZYN-1 | 24 | ≤300 | 3600±8% | ≤900 | 3000±8% | 0.04 | 13 | 71 |
BMM-40ZYN-2 | 24 | ≤300 | 4000±8% | ≤800 | 3200±8% | 0.03 | 10 | 63 |
BMM-40ZYN-3 | 24 | ≤300 | 4500±8% | ≤1000 | 3800±8% | 0.03 | 12 | 58 |
BMM-40ZYN-4 | 24 | ≤350 | 4200±8% | ≤1800 | 3700±8% | 0.065 | 25 | 71 |
BMM-40ZYN-5 | 24 | ≤400 | 4800±8% | ≤2200 | 4000±8% | 0.08 | 34 | 75 |
We use reliable packaging and logistics, for customer to receive the products in good condition. Also, we could customize according to your requirements.
