Welcome to Belmont, our main products are: axial fans, centrifugal fans, plug fans and DC/AC motors, etc. Welcome to submit your inquiry for the latest product offer.
 |
| Quantity: | |
|---|---|
BMM-73ZYT
Belmont
BMM-73ZYT
Product Description

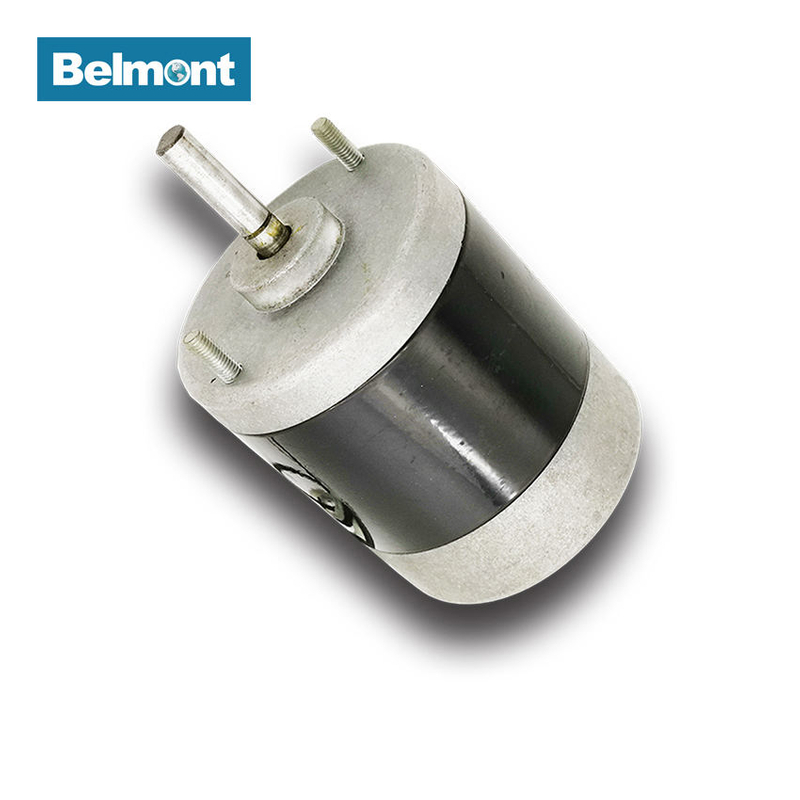

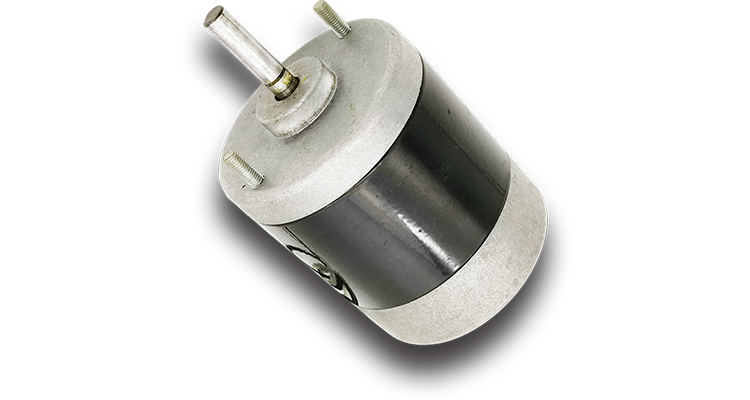

73mm High Speed High Torque 1600rpm 100W 12v 24V Electric DC Motor
Product Application: Outdoor advertising, medical equipment, logistics transmission, mechanical equipment, solar tracking device, precision equipment etc.
Customized manufacturing available
| Model | VOLTAGE (VDC) | NO LOAD | RATED LOAD | TORQUE (Nm) | Power (W) | LENGTH (mm) | ||
CURRENT (mA) | SPEED (r/min) | CURRENT (A) | SPEED (r/min) | |||||
BMM-73ZYT-1 | 13.5 | ≤600 | 2000±8% | ≤3.8 | 1600±8% | 0.2 | 34 | 84 |
BMM-73ZYT-2 | 24 | ≤500 | 1600±8% | ≤2.3 | 1250±8% | 0.25 | 33 | 91 |
BMM-73ZYT-3 | 12 | ≤1030 | 2210±8% | ≤12.6 | 1650±8% | 0.6 | 104 | 130 |
We use reliable packaging and logistics, for customer to receive the products in good condition. Also, we could customize according to your requirements.
