In the rapidly growing heat pump and HVAC industry, manufacturers are constantly looking for ways to improve system efficiency, reduce energy consumption, and enhance durability.
At Belmont-Fan, we’ve developed the X-TBlade Axial Fan Series — a new generation of high-performance fans designed to deliver maximum airflow efficiency, quiet operation, and long-lasting reliability.
Engineered with CFD aerodynamic design and built to ErP 2026 energy efficiency standards, our X-TBlade series is the perfect fit for heat pumps, air conditioners, chillers, and industrial ventilation systems.
The Belmont X-TBlade Axial Fan Series combines cutting-edge aerodynamics with robust engineering to meet the demands of modern heat pump systems.
Its advanced bionic blade design ensures stable airflow, minimal vibration, and low noise — even under heavy load operation.
Available Models: BEF92-A450 / BEF92-A500 / BEF102-A630
Applications: Heat Pumps, HVAC Units, Air Conditioners, Refrigeration Equipment, Chillers
| Model | Voltage (VAC) | Speed (RPM) | Input Power (W) | Noise (dB[A]) | Efficiency Grade (ErP2026) |
|---|---|---|---|---|---|
| BEF92-A450 | 1~230V | 1100 | 145 | 57 | ηₛₜₐₜ = 41.1% |
| BEF92-A500 | 1~230V | 1100 | 170 | 61 | ηₛₜₐₜ = 41.5% |
| BEF102-A630 | 1~230V | 780 | 360 | 55 | ηₛₜₐₜ = 41.2% |
All Belmont X-TBlade fans comply with the ErP 2026 Directive and are certified by China Energy Efficiency of Ventilators (Grade 1).
| Feature | Description |
|---|---|
| Easy Installation | One-piece assembly — motor, blade, and grill are pre-matched for fast installation. Compact structure fits both external and internal rotor designs. |
| Excellent Efficiency | High static pressure performance and aerodynamic optimization using CFD technology ensure minimal energy loss. |
| High Quality & Reliability | Over 40 reliability tests conducted, including vibration, thermal, and salt-spray testing. |
| Low Noise Operation | Advanced motor balance and precision manufacturing deliver quieter operation. |
| High Protection Level (IP55) | Dustproof and waterproof motor design with optional C3/C4 anti-corrosion coatings for outdoor environments. |
| Industry | Application Examples |
|---|---|

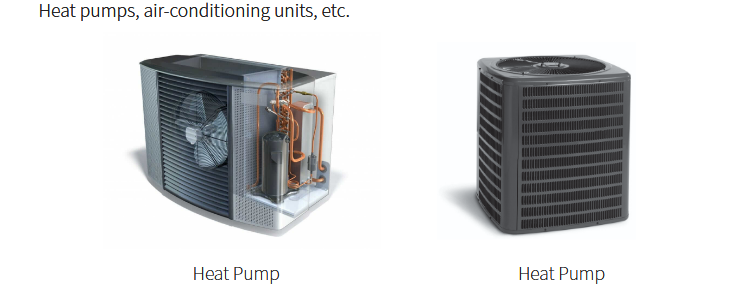

| Heat Pump Systems | Residential and commercial outdoor heat pumps |
| HVAC Systems | Air conditioners, rooftop units, packaged systems |
| Refrigeration Equipment | Condensers, chillers, cold storage fans |
| Industrial Ventilation | Cooling systems for machinery and power electronics |

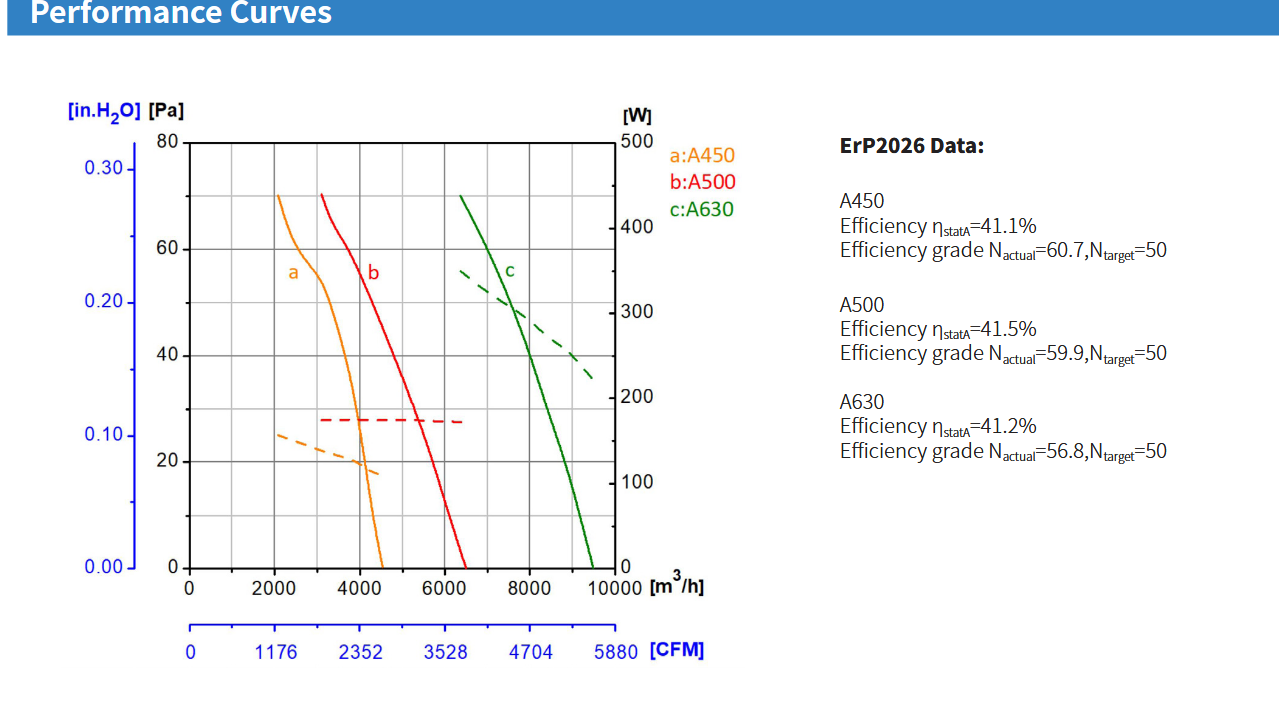

The X-TBlade series achieves consistent, energy-efficient airflow across all speed ranges.
| Model | Airflow (CFM) | Static Pressure (Pa) | Efficiency (%) |
|---|---|---|---|
| A450 | 2350–4200 | 20–70 | 41.1 |
| A500 | 2600–4700 | 25–75 | 41.5 |
| A630 | 3500–5880 | 30–80 | 41.2 |
Over 24+ years of experience in industrial fan design and manufacturing
OEM/ODM customization available for global HVAC and heat pump brands
Certified energy-efficient and noise-optimized designs
Fast delivery and full technical support for international partners
Trusted by manufacturers across Europe, USA, and Asia
Belmont-Fan is not just a supplier — we’re your engineering partner for better airflow solutions.
They are specifically designed for heat pump and HVAC applications, using aerodynamic CFD technology to deliver high static pressure, low noise, and IP55 protection suitable for both indoor and outdoor environments.
Yes. We provide OEM/ODM customization including fan size, voltage, coating type, and airflow range. Our engineers help design fans that perfectly match your system performance requirements.
Yes. All models meet or exceed the ErP 2026 Directive and are China Energy Efficiency Grade 1 certified, ensuring top-level energy efficiency and performance.
Axial fans move air straight along the shaft — ideal for heat pumps, condensers, and air-cooled systems.
Centrifugal fans move air at a 90° angle and are best for ducted HVAC and ventilation systems requiring higher pressure.
Each fan is engineered for over 50,000 operating hours, thanks to advanced materials, bearings, and corrosion-resistant coatings.
Yes. We serve customers in Europe, North America, and Asia, offering fast logistics, multilingual support, and international OEM cooperation.
Simply contact our team via email at sales@belmont-fan.com, and we’ll provide datasheets, performance curves, and CAD drawings tailored to your application.
All motors are rated IP55, with optional C3/C4 anti-corrosion coatings for outdoor or coastal installations.
Fill out our online contact form or email us your fan requirements (voltage, airflow, application type).
We’ll respond within 24 hours with a custom quotation and engineering advice.
