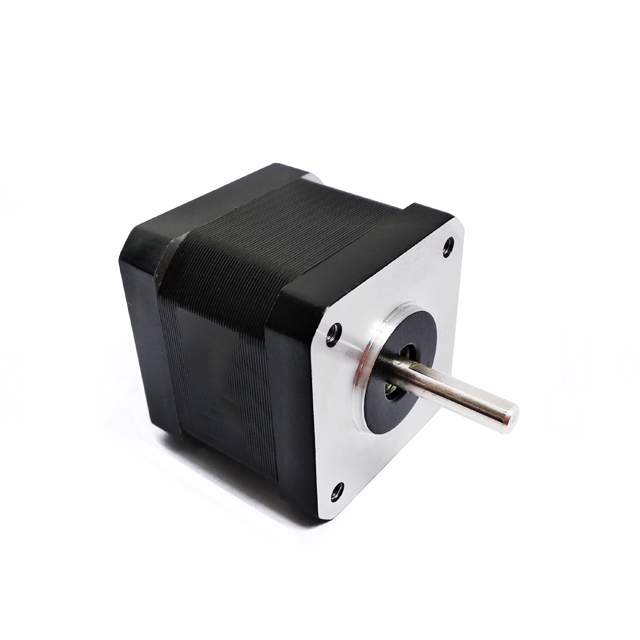

NEMA17 42HS 2 PHASE 1.8° HYBRID STEPPER MOTOR
SPECIFICATIONS
| Item | Specifications |
| Step Angle Accuracy | ±5% |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80℃ Max |
| Ambient Temperature | -20℃～+50℃ |
| Insulation Resistance | 100MΩMin.500VDC |
| Dielectric Strength | 500VAC for one minute |
| Shaft Radial Play | 0.02Max.(450g-load) |
| Shaft Axial Play | 0.08Max.(450g-load) |
| Model | Step | Rated | Rated | Phase | Phase | Holding Torque (Kg.cm) | Detent Torque (g.cm Max) | Rotor | Motor | Leads No. | Axis | Motor Weight (Kg) |
42HS29- 0804 | 1.8 | 2.3 | 0.8 | 2.9 | 3 | 1.8 | 180 | 25 | 29 | 4 | D CUT | 0.16 |
42HS34- 0306 | 1.8 | 10.3 | 0.3 | 34.2 | 25.5 | 2.2 | 200 | 345 | 34 | 6 | D CUT | 0.22 |
42HS34- 0844 | 1.8 | 4.8 | 0.84 | 5.75 | 8 | 2.8 | 200 | 34 | 34 | 4 | D CUT | 0.22 |
42HS34- 1704 | 1.8 | 2.2 | 1.7 | 1.3 | 1.8 | 2.8 | 200 | 34 | 34 | 4 | D CUT | 0.22 |
42HS40- 0404 | 1.8 | 12.0 | 0.4 | 30 | 60 | 4.2 | 220 | 54 | 40 | 4 | D CUT | 0.28 |
42HS40- 0806 | 1.8 | 6.0 | 0.8 | 7.5 | 6.7 | 2.8 | 220 | 54 | 40 | 6 | D CUT | 0.28 |
42HS40- 1684 | 1.8 | 2.8 | 1.68 | 1.68 | 3.4 | 4 | 220 | 54 | 40 | 4 | D CUT | 0.28 |
42HS40- 1206 | 1.8 | 4.0 | 1.2 | 3.3 | 3.5 | 2.97 | 220 | 54 | 40 | 6 | D CUT | 0.28 |
42HS48- 0404 | 1.8 | 12.0 | 0.4 | 30 | 45 | 4.5 | 280 | 68 | 48 | 4 | D CUT | 0.38 |
42HS48- 1304 | 1.8 | 4.6 | 1.3 | 3.5 | 6.6 | 5.5 | 280 | 68 | 48 | 4 | D CUT | 0.38 |
42HS48- 1504 | 1.8 | 4.2 | 1.5 | 2.8 | 5.5 | 5.5 | 280 | 68 | 48 | 4 | D CUT | 0.38 |
42HS48- 1684 | 1.8 | 3.4 | 1.68 | 2 | 3.8 | 5.2 | 280 | 68 | 48 | 4 | D CUT | 0.38 |
42HS52- 1504 | 1.8 | 4.5 | 1.5 | 3 | 7 | 6.8 | 300 | 80 | 52 | 4 | D CUT | 0.45 |
42HS60- 1504 | 1.8 | 3.8 | 1.5 | 2.5 | 6 | 7 | 360 | 95 | 60 | 4 | D CUT | 0.55 |
Above only for representative products, products of special request can be made according to the customer request. | ||||||||||||
