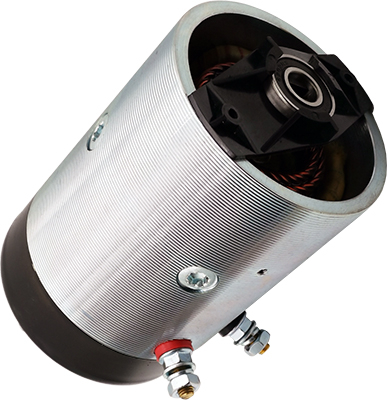

BHM Series
Belmont
BHM Series
Product Description
OUR PRODUCTS
Model | Voltage (VDC) | No Load | Max. Torque | Rotation | Power (W) | Diameter (mm) | ||||||
Current (A) | Speed (r/min) | Toque (N.m) | Current (A) | Speed (r/min) | Eff % | Power (W) | ||||||
BHM-223A | 24 | 17 | 4500 | 6.33 | 106 | 2700 | 70.50% | 1800 | CW | 2200 | 114 | |
BHM-1230 | 12 | 58 | 7300 | 6 | 212 | 2350 | 58 | 1466 | CW | 1600 | 114 | |
BHM-2420 | 24 | 28 | 5570 | 6 | 109 | 2700 | 67 | 1750 | CW | 2200 | 114 | |
BHM-N1612 | 24 | 58 | 7300 | 6 | 212 | 2350 | 58 | 1470 | CW | 1600 | 114 | |
Model | Max. Efficiency | Max. Output power | ||||||||||
Eff % | Speed (r/min) | Toque (N.m) | Current (A) | Power (W) | Eff | Speed (r/min) | Toque (N.m) | Current (A) | Power (W) | |||
BHM-223A | 73% | 3000 | 4.2 | 78 | 1360 | 71% | 2700 | 6.3 | 106 | 1800 | ||
BHM-1230 | 67 | 5950 | 1 | 74 | 630 | 58 | 2325 | 6 | 212 | 1466 | ||
BHM-2420 | 67 | 2900 | 5 | 98 | 1575 | 67 | 2750 | 6 | 109 | 1750 | ||
BHM-N1612 | 67 | 6000 | 1 | 74 | 630 | 58 | 2325 | 6 | 212 | 1466 | ||
Model | Voltage (V) | Power (W) | Speed (r/min) | Rotaion | O.D. (mm) | Operating Mode | Insulation |
BHM-XQD-3C | 24 | 4000 | 3100 | CW | 142 | S2 | F |
BHM-2373 | 24 | 3000 | 2850 | CW | 125 | S3 | F |
BHM-W5692 | 12 | 1600 | 2500 | CW | 114 | S3 | F |
BHM-2973A | 24 | 3000 | 3100 | CW | 127 | S2 | F |
BHM-W8901P | 12 | 1500 | 2220 | CW | 114 | S3 | F |
BHM-2973BF | 24 | 3000 | 3000 | CCW | 127 | F | |
BHM-W9405 | 24 | 2000 | 2600 | CCW | 114 | S3 | F |
BHM-Y113 | 12 | 800 | 3500 | CW | 80 | S3 | F |
BMM-1221 | 12 | 2000 | 2900 | CW | 114 | F |
PACKING & SHIPPING
We use reliable packaging and logistics, for customer to receive the products in good condition. Also, we could customize according to your requirements.
Introduction
◆ Founded in 2001 to provide high-quality products and sourcing solutions at a competitive cost.
◆ Manufacturing Facilities
Manufacturing plants located in multiple regions in China
◆ Service locations:
Fort Wayne, Indiana, USA(Responsible for after-sales service of products)
Changzhou, Jiangsu, China
◆ 2021 sales of $650 million
In 2021, 1 million fans and 600,000 motors will be produced
◆ The total number of employees is 268, including 20 technical teams and 26 sales team
