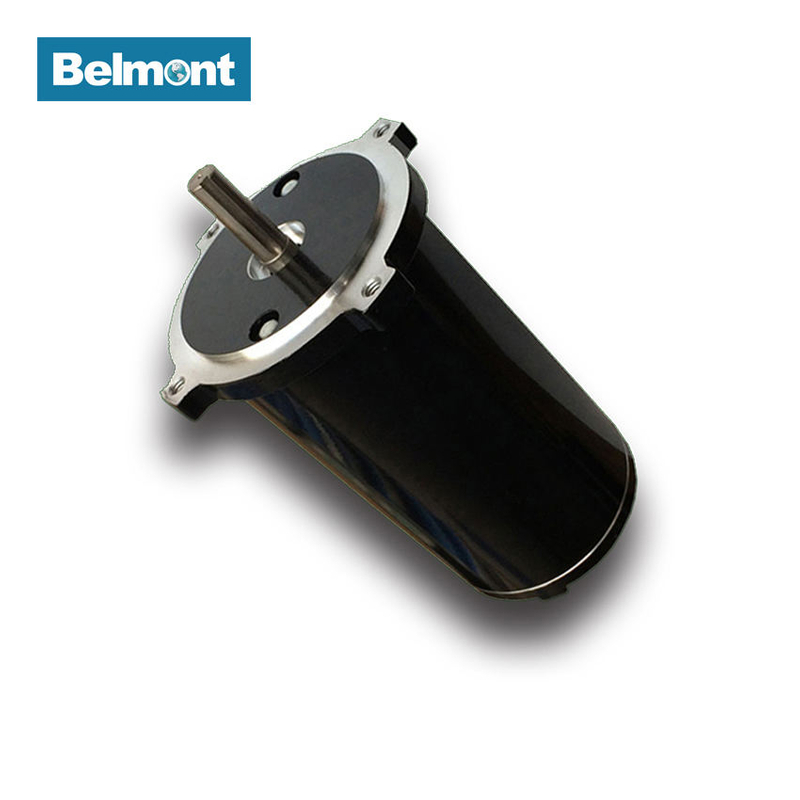

BMM-120ZYT 120mm High Speed High Torque 12V 24V 48V Electric DC Motor

Product Application: Outdoor advertising, medical equipment, logistics transmission, mechanical equipment, solar tracking device, precision equipment, etc.
Customized manufacturing available

Quantity:
  • BMM-120ZYT
  • Belmont
  • BMM-120ZYT

Product Description


Our Products

120mm high speed high torque 3000rpm 500W 12V 48V electric dc motor

Product Application: Outdoor advertising, medical equipment, logistics transmission, mechanical equipment, solar tracking device, precision equipment, etc.

Customized manufacturing available

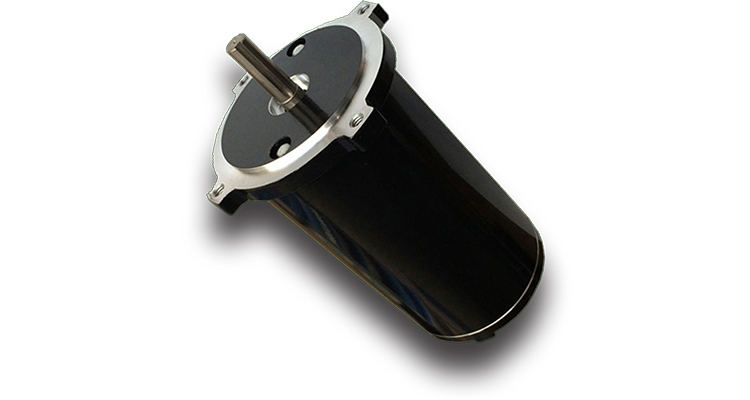

BM-387(平台正文)


Specifications

Model

VOLTAGE

(VDC)

NO LOAD

RATED LOAD

TORQUE

(Nm)

LENGTH

(mm)

CURRENT

(A)

SPEED

(r/min)

CURRENT

(A)

SPEED

(r/min)

BMM-120ZYT-1

12

5.76

1941

38.39

1650

2

222

BMM-120ZYT-2

48

1.44

1941

9.6

1650

2

222

BMM-120ZYT-3

12

5.1

2294

34.03

1950

1.5

183

BMM-120ZYT-4

12

2.09

941

13.96

800

1.5

183

BMM-120ZYT-5

12

8.64

3882

57.59

3300

1.5

183

BMM-120ZYT-6

24

2.75

2470

18.32

2100

1.5

199

BMM-120ZYT-7

12

9.16

2058

61.08

1750

3

284

BMM-120ZYT-8

12

8.64

1941

57.59

1650

3

284

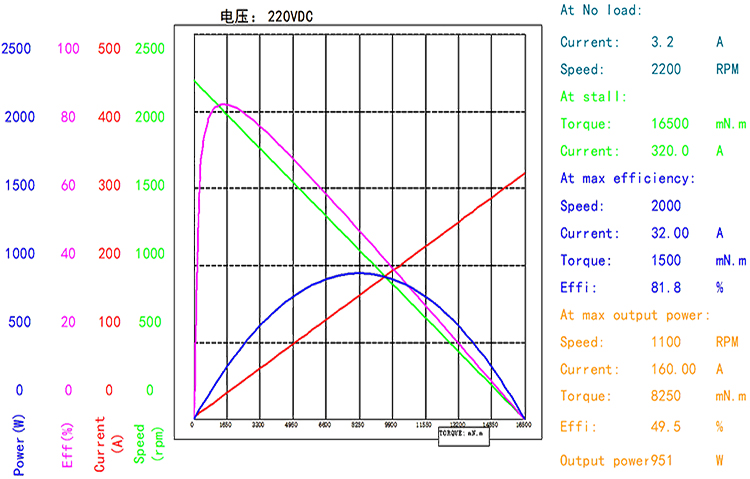

Performance Curve

BMM-120ZYT(官网曲线图)

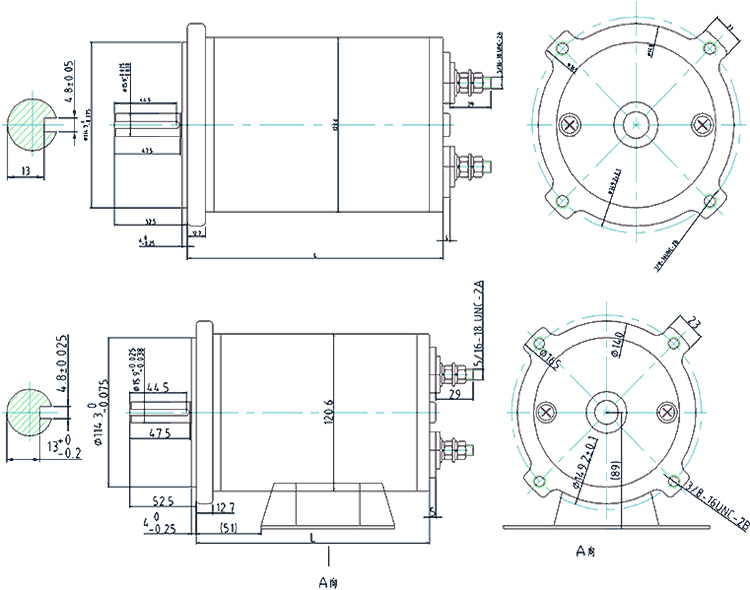

Outline Drawing

BMM-120ZYT(官网外形图)


Packing & Shipping


We use reliable packaging and logistics, for customer to receive the products in good condition. Also, we could customize according to your requirements.
