Product Description

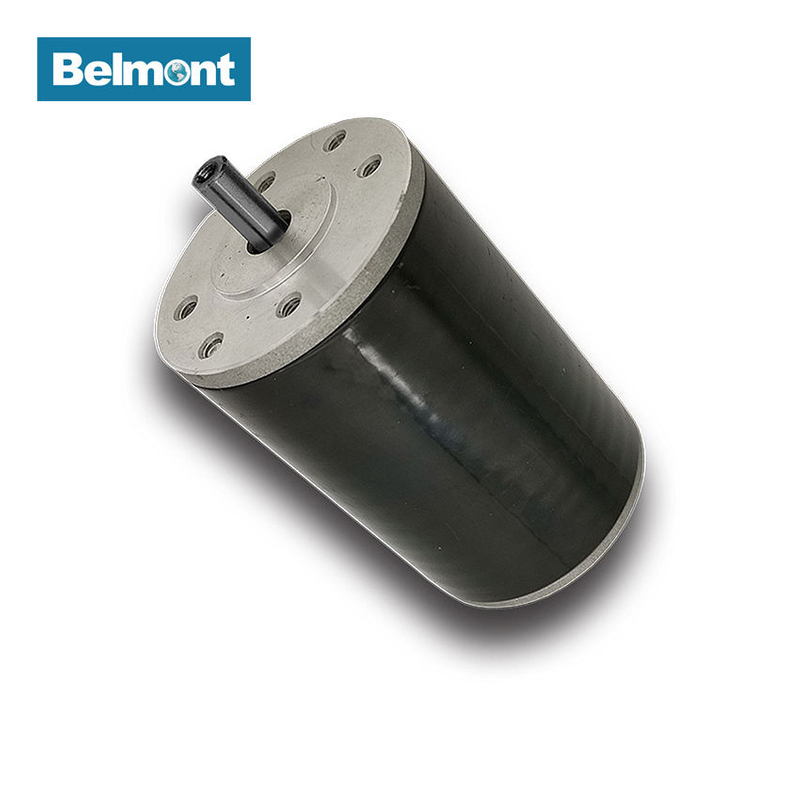

63mm high speed high torque 3800rpm 120w 12v 24V electric dc motor
Product Application: Outdoor advertising, medical equipment, logistics transmission, mechanical equipment, solar tracking device, precision equipment etc.
Customized manufacturing available
| Model | VOLTAGE (VDC) | NO LOAD | RATED LOAD | TORQUE (Nm) | Power (W) | LENGTH (mm) | ||
CURRENT (mA) | SPEED (r/min) | CURRENT (A) | SPEED (r/min) | |||||
BMM-63ZYT -1 | 24 | ≤800 | 4500±8% | ≤4.5 | 3800±8% | 0.18 | 72 | 117 |
BMM-63ZYT -2 | 12 | ≤1200 | 4000±8% | ≤10.5 | 3000±8% | 0.24 | 75 | 127 |
BMM-63ZYT -3 | 24 | ≤650 | 4000±8% | ≤5 | 3000±8% | 0.24 | 75 | 127 |
BMM-63ZYT -4 | 24 | ≤800 | 4000±8% | ≤7.3 | 3000±8% | 0.35 | 110 | 147 |
BMM-63ZYT -5 | 24 | ≤800 | 4000±8% | ≤8.3 | 3000±8% | 0.4 | 126 | 156 |
We use reliable packaging and logistics, for customer to receive the products in good condition. Also, we could customize according to your requirements.
