Welcome to Belmont, our main products are: axial fans, centrifugal fans, plug fans and DC/AC motors, etc. Welcome to submit your inquiry for the latest product offer.
 |
| Quantity: | |
|---|---|
BMM-66ZYT
Belmont
BMM-66ZYT
Product Description

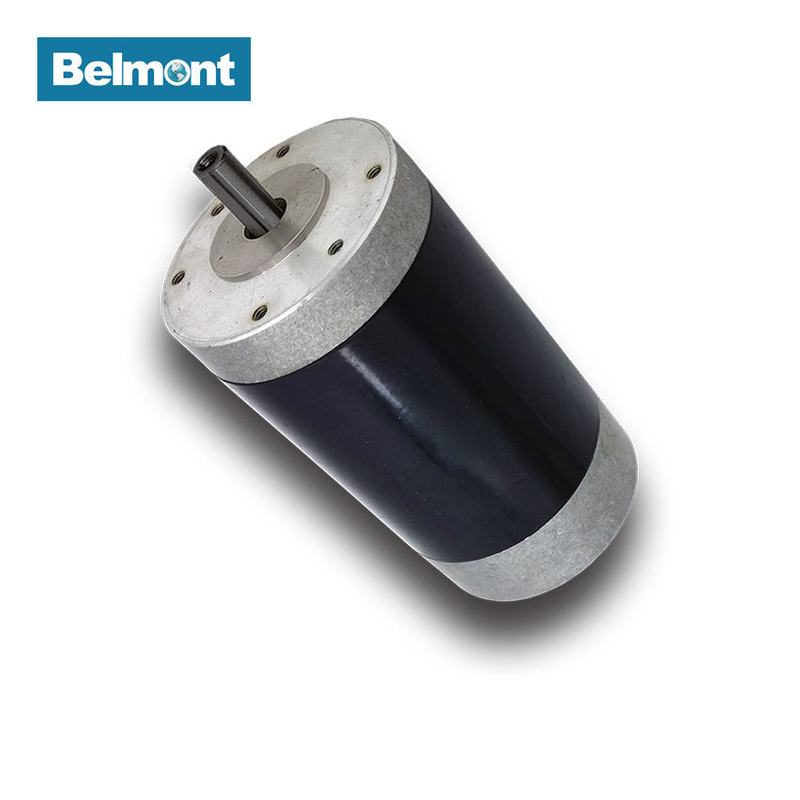

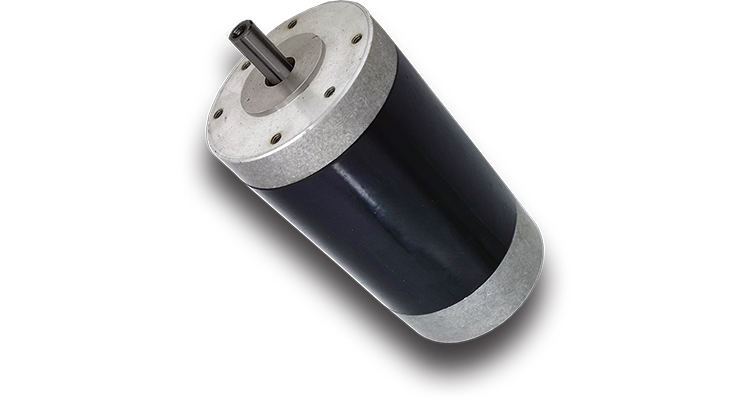

66mm High Speed High Torque 4000rpm 160w 12v 24v 110V Electric Dc Motor
Product Application: Outdoor advertising, medical equipment, logistics transmission, mechanical equipment, solar tracking device, precision equipment etc.
Customized manufacturing available
| Model | VOLTAGE (VDC) | NO LOAD | RATED LOAD | TORQUE (Nm) | Power (W) | LENGTH (mm) | ||
CURRENT (mA) | SPEED (r/min) | CURRENT (A) | SPEED (r/min) | |||||
BMM-66ZYT-1 | 24 | ≤800 | 3600±8% | ≤6 | 3000±8% | 0.3 | 94 | 107 |
BMM-66ZYT-2 | 24 | ≤800 | 3800±8% | ≤8 | 3100±8% | 0.4 | 130 | 117 |
BMM-66ZYT-3 | 110 | ≤1000 | 4800±8% | ≤10.3 | 4000±8% | 0.4 | 168 | 117 |
BMM-66ZYT-4 | 12 | ≤900 | 1800±8% | ≤10 | 1100±8% | 0.5 | 58 | 117 |
We use reliable packaging and logistics, for customer to receive the products in good condition. Also, we could customize according to your requirements.
