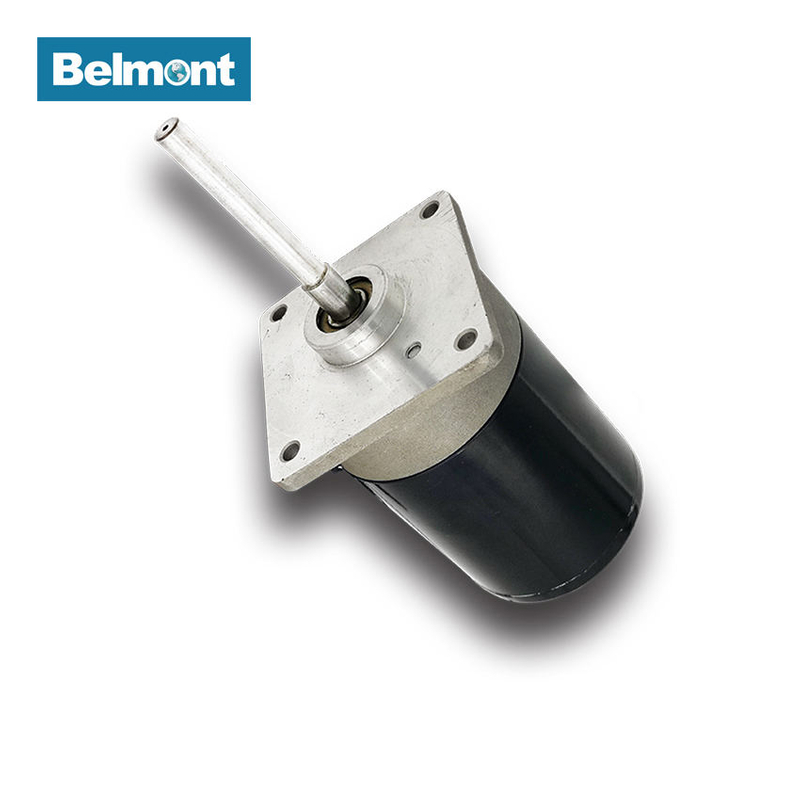

BMM-70ZYT 70mm High Speed High Torque 6000rpm 80W 12v 24v 110V Electric DC Motor

Product Application: Outdoor advertising, medical equipment, logistics transmission, mechanical equipment, solar tracking device, precision equipment etc.
Customized manufacturing available

Quantity:
  • BMM-70ZYT
  • Belmont
  • BMM-70ZYT

Product Description


Our Products

70mm high speed high torque 6000rpm 80W 12v 24v 110V electric dc motor

Product Application: Outdoor advertising, medical equipment, logistics transmission, mechanical equipment, solar tracking device, precision equipment etc.

Customized manufacturing available

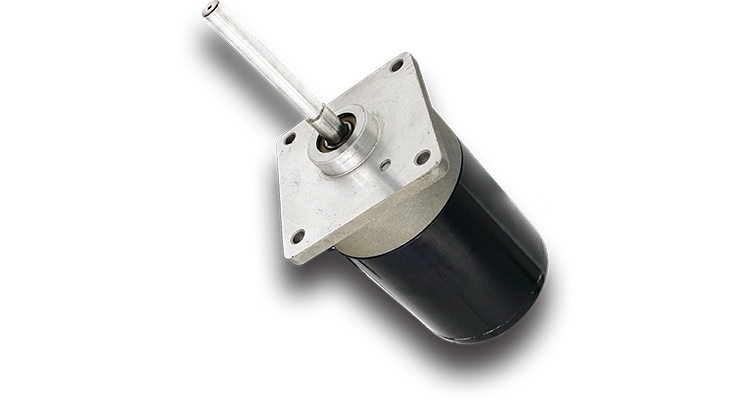

BM-337(平台正文)


Specifications

Model

VOLTAGE

(VDC)

NO LOAD

RATED LOAD

TORQUE

(Nm)

LENGTH

(mm)

CURRENT

(mA)

SPEED

(r/min)

CURRENT

(mA)

SPEED

(r/min)

BMM-70ZYT -1

110

90

4117

510

3500

0.1

94

BMM-70ZYT -2

110

90

4117

510

3500

0.1

94

BMM-70ZYT -3

24

460

2235

2680

1900

0.21

110

BMM-70ZYT -4

110

180

7500

1050

6000

0.12

94

BMM-70ZYT -5

110

70

2500

440

2000

0.15

110

BMM-70ZYT -6

24

210

1875

1210

1500

0.12

94

BMM-70ZYT -7

110

100

4375

620

3500

0.12

94

BMM-70ZYT -8

24

660

6000

3870

4800

0.12

110

BMM-70ZYT -9

12

1830

5000

10740

4000

0.2

110

BMM-70ZYT -10

24

850

5000

4990

4000

0.2

110

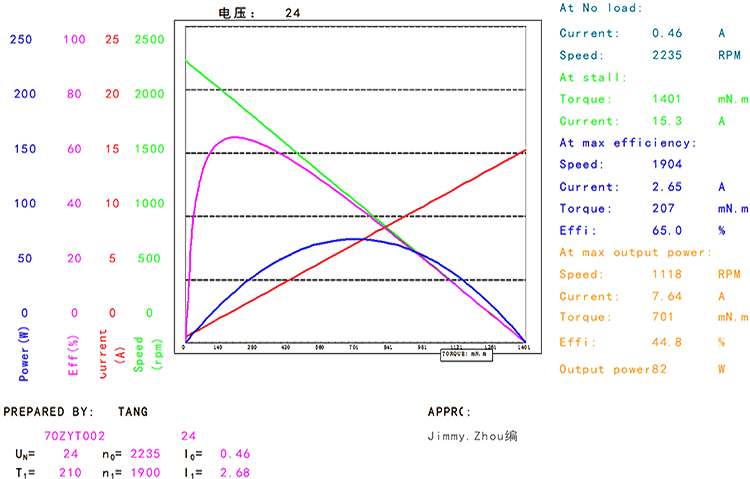

Performance Curve

BMM-70ZYT(官网曲线图)

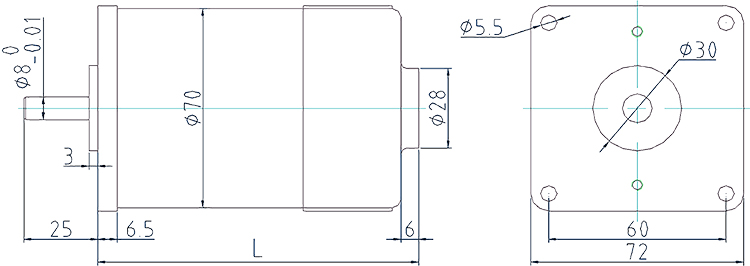

Outline Drawing

BMM-70ZYT(官网外形图)


Packing & Shipping


We use reliable packaging and logistics, for customer to receive the products in good condition. Also, we could customize according to your requirements.
