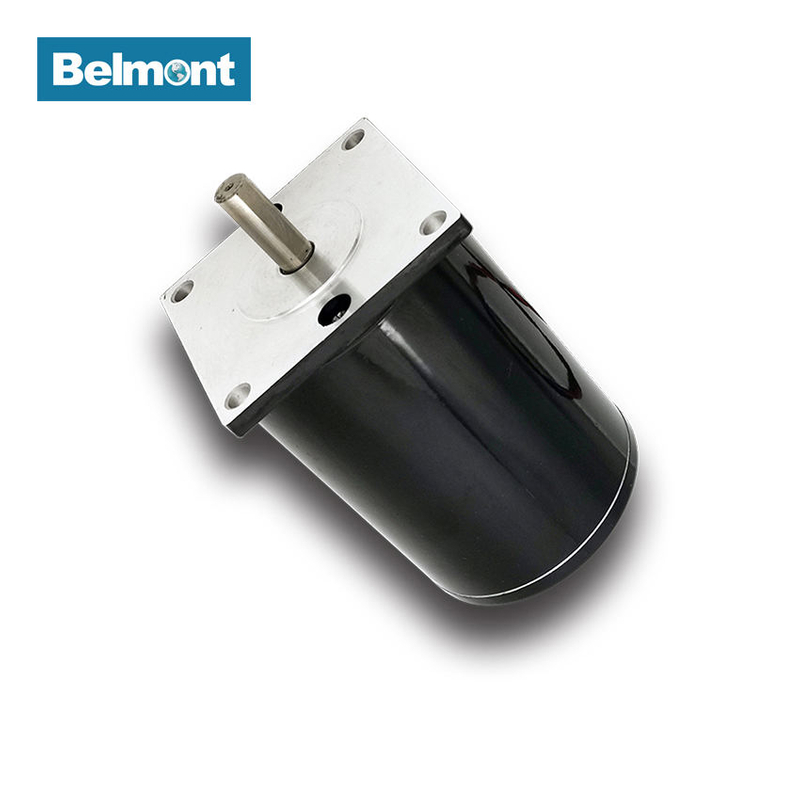

BMM-76ZYT 76mm High Speed High Torque 3000rpm 300W 24v 110V Electric DC Motor

Product Application: Outdoor advertising, medical equipment, logistics transmission, mechanical equipment, solar tracking device, precision equipment etc.
Customized manufacturing available

Quantity:
  • BMM-76ZYT
  • Belmont
  • BMM-76ZYT

Product Description


Our Products

76mm Hhigh Speed High Torque 3000rpm 300W 24v 110V Electric DC Motor

Product Application: Outdoor advertising, medical equipment, logistics transmission, mechanical equipment, solar tracking device, precision equipment etc.

Customized manufacturing available

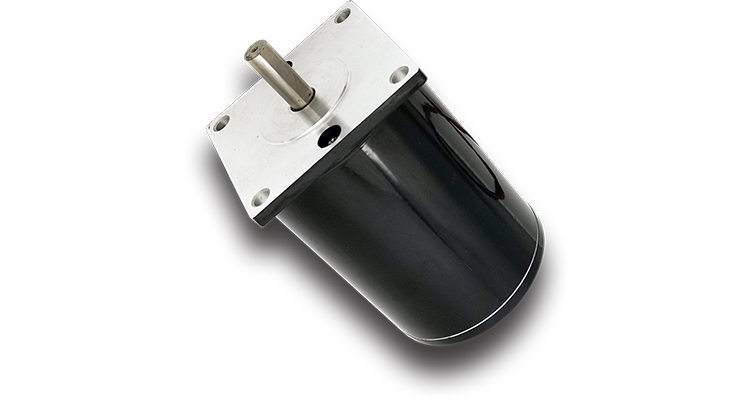

BM-339(平台正文)


Specifications

Model

VOLTAGE

(VDC)

NO LOAD

RATED LOAD

TORQUE

(Nm)

Power

(W)

LENGTH

(mm)

CURRENT

(mA)

SPEED

(r/min)

CURRENT

(A)

SPEED

(r/min)

BMM-76ZYT-1

24

≤800

2500±8%

≤5.3

2000±8%

0.4

84

112

BMM-76ZYT-2

24

≤1000

3600±8%

≤7.5

3000±8%

0.4

126

112

BMM-76ZYT-3

100

≤200

2400±8%

≤1.3

1900±8%

0.4

80

112

BMM-76ZYT-4

24

≤500

1500±8%

≤4.7

1100±8%

0.6

69

137

BMM-76ZYT-5

24

≤1300

3000±8%

≤9.3

2500±8%

0.6

157

137

BMM-76ZYT-6

110

≤300

3700±8%

≤2.5

3200±8%

0.6

201

137

BMM-76ZYT-7

24

≤600

3600±8%

≤14

3000±8%

0.75

236

152

BMM-76ZYT-8

24

≤1000

3600±8%

≤18

3000±9%

1

314

177

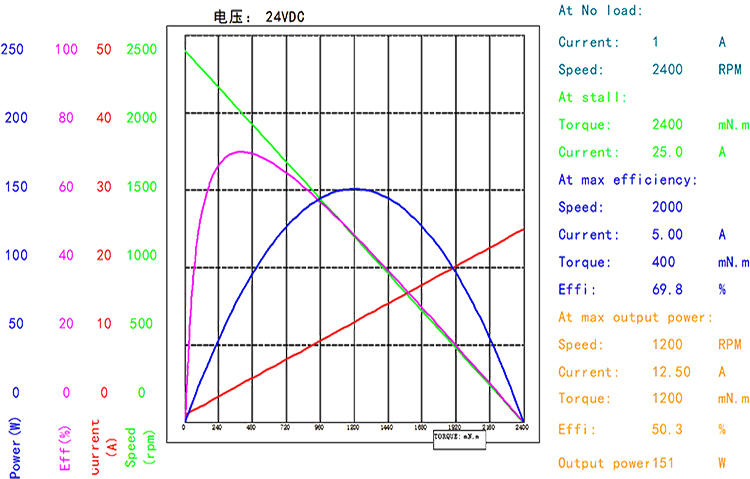

Performance Curve

BMM-76ZYT(官网曲线图)

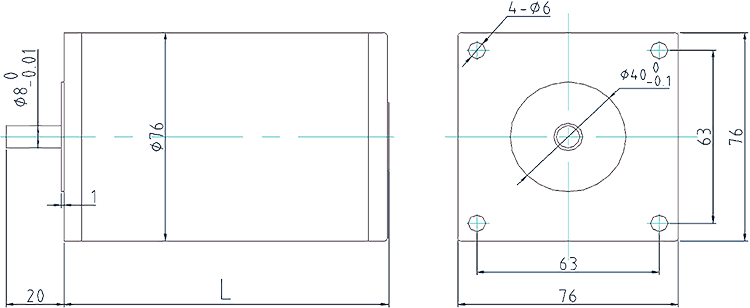

Outline Drawing

BMM-76ZYT(官网外形图)


Packing & Shipping


We use reliable packaging and logistics, for customer to receive the products in good condition. Also, we could customize according to your requirements.
