BMM-78ZYT
Belmont
BMM-78ZYT
Product Description

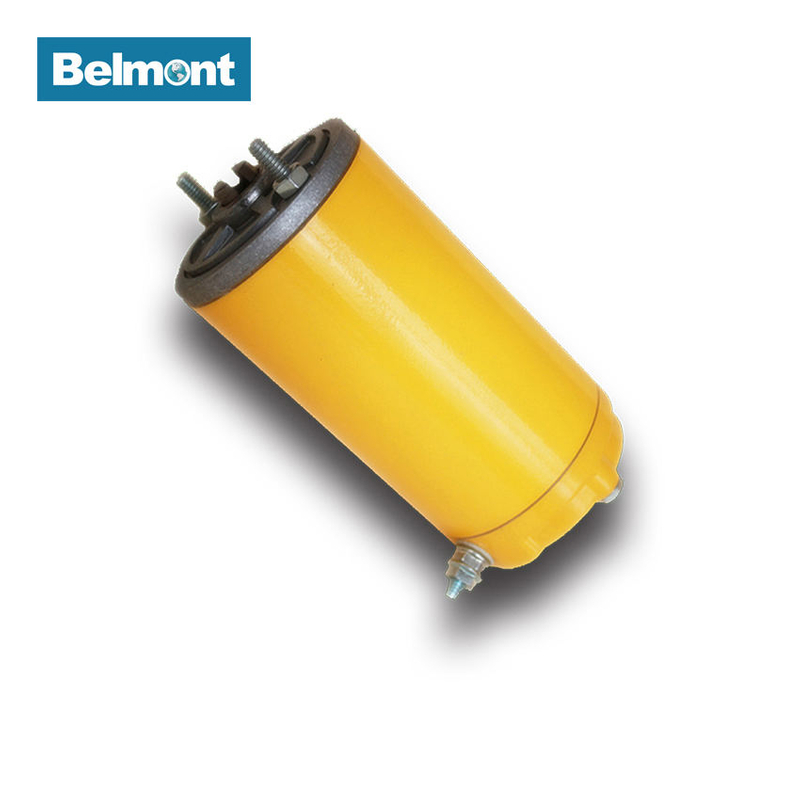

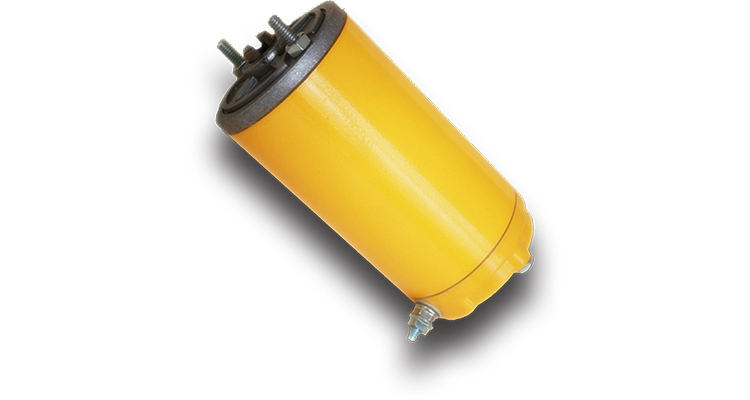

78mm high speed high torque 4000rpm 900W 12V electric dc motor
Product Application: Outdoor advertising, medical equipment, logistics transmission, mechanical equipment, solar tracking device, precision equipment etc.
Customized manufacturing available
| Model | VOLTAGE (VDC) | NO LOAD | RATED LOAD | TORQUE (Nm) | Power (W) | LENGTH (mm) | ||
CURRENT (A) | SPEED (r/min) | CURRENT (A) | SPEED (r/min) | |||||
BMM-78ZYT-1 | 12 | ≤18 | 5000±8% | ≤108 | 4000±8% | 1.5 | 628 | 150.5 |
BMM-78ZYT-2 | 12 | ≤8 | 3500±8% | ≤80 | 2200±8% | 3.3 | 760 | 144 |
BMM-78ZYT-3 | 12 | ≤30 | 5300±8% | ≤88 | 4300±8% | 2 | 901 | 143 |
BMM-78ZYT-4 | 12 | ≤25 | 4500±8% | ≤120 | 3500±8% | 2 | 733 | 176 |
We use reliable packaging and logistics, for customer to receive the products in good condition. Also, we could customize according to your requirements.
