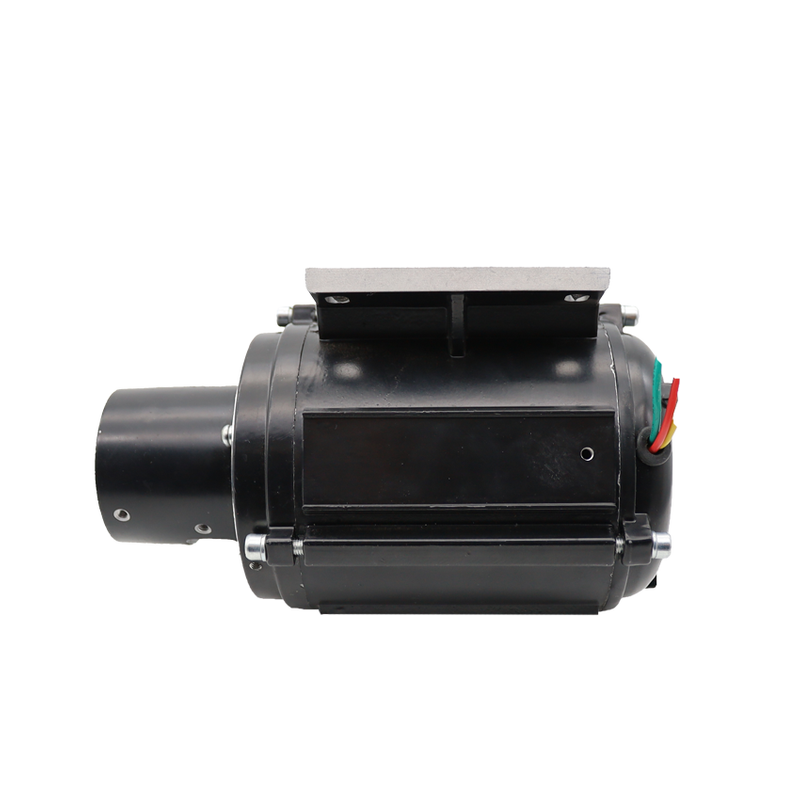

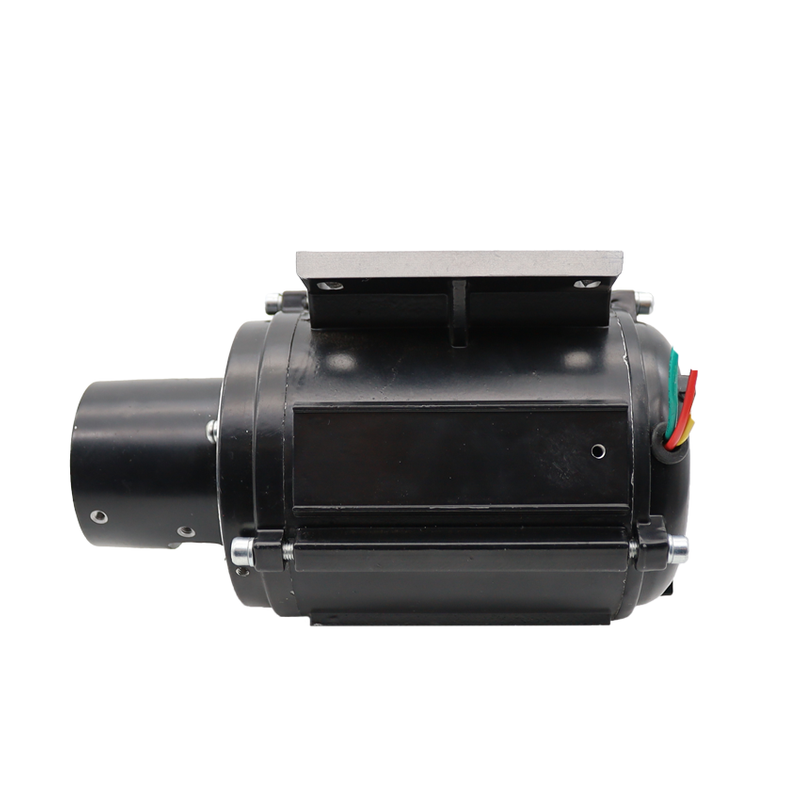

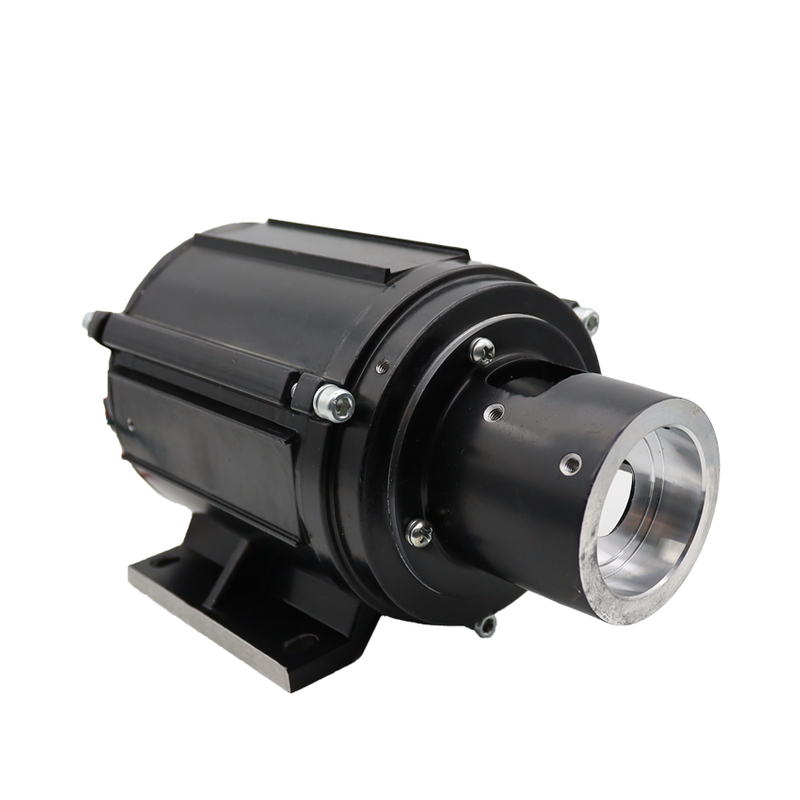

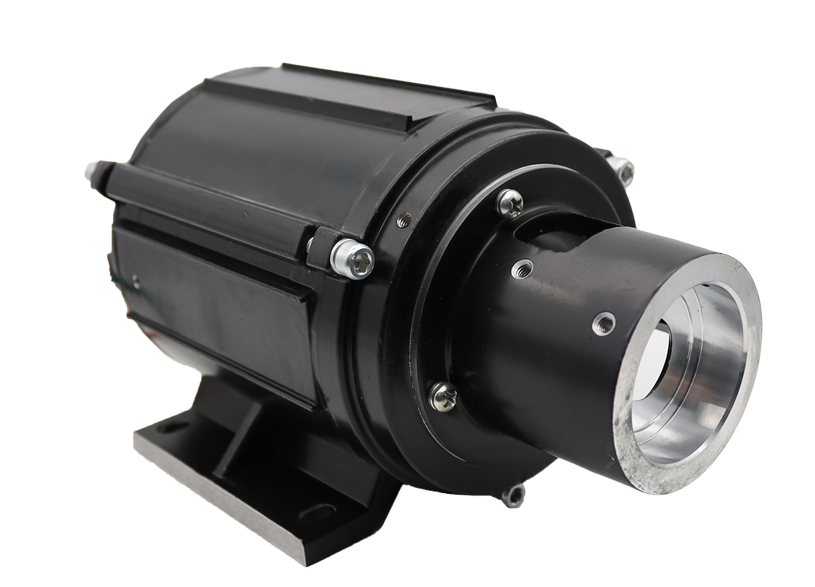

Product:BAM-90-4 series Single Phase Asynchronous Electric AC Motor For Office Equipment
Low noise, large torque, slow heat, over-current, overheat protection
| Voltage (V) | Frequency (Hz) | Output Power (W) | Rated speed (r/min) | Max. Torque (N.m) | Insulation (class) | Capacitor (uF) |
BAM-90-4-1 | 220 | 50 | 102.5 | 2804 | 0.6 | B | 7 |
BAM-90-4-2 | 230 | 50 | 140 | 2800 | 0.7 | B | 8 |
BAM-90-4-3 | 230 | 50 | 210 | 2750 | 1.05 | B | 8 |
BAM-90-4-4 | 120 | 60 | 3000 | 3350 | 1.25 | B | 35 |
We use reliable packaging and logistics, for customer to receive the products in good condition. Also, we could customize according to your requirements.
