Welcome to Belmont, our main products are: axial fans, centrifugal fans, plug fans and DC/AC motors, etc. Welcome to submit your inquiry for the latest product offer.
 |
| Quantity: | |
|---|---|
ZP50‑2‑1.8YSP8‑125
Belmont
Product Description
Model ZP50‑2‑1.8YSP8‑125 is Belmont 50‑inch high‑pressure axial fan, rated power 1.8kW. Equipped with heavy‑duty AC induction motor for 24‑hour continuous operation. Delivers high static‑pressure performance, CE certified. Specially designed for duct ventilation, cooling pad system & closed livestock barns, widely used in modern farms and agricultural greenhouses.

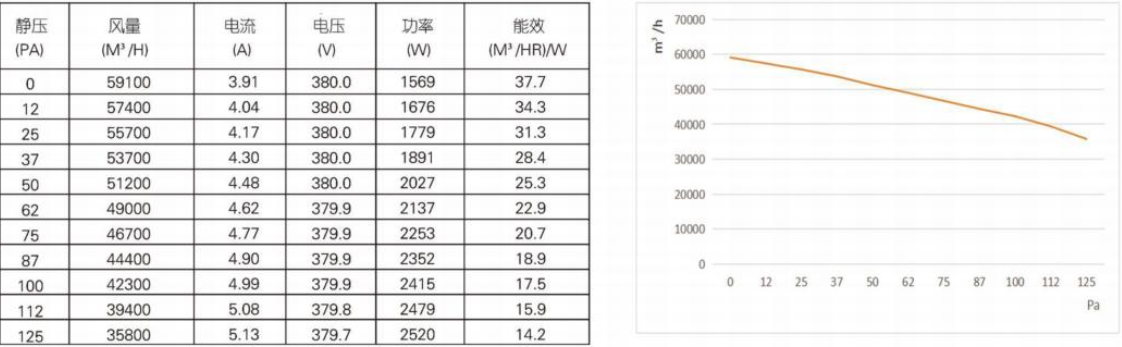

‑ Heavy‑duty AC induction motor, stable for non‑stop 24‑h farm operation ‑ High‑pressure impeller, good performance against duct / cooling pad resistance ‑ Dynamically balanced fan blade, stable running and low noise ‑ CE certification for European market ‑ Complete airflow‑static‑pressure curve for engineering selection ‑ Flange wall‑mount installation; OEM & ODM custom service supported
表格
Item | Parameter |
|---|---|
ART.NO | ZP50‑2‑1.8YSP8‑125 |
Size | 50 Inch High Pressure Fan |
Motor Type | AC Induction Motor |
Rated Power | 1800W (1.8kW) |
Voltage | 380V 3‑Phase |
Operation | Fixed speed, variable speed available with external VFD drive |
Certification | CE |
Rated Current | 4.9A |
Degree of protection | IP66 |
Application | Poultry house, pig barn, closed livestock house, greenhouse, duct ventilation system |
Broiler house, layer house, pig pen, closed livestock barn, agricultural greenhouse, ventilation system with cooling pad or air duct resistance.
PDF catalogue available, technical selection support, OEM & logo customization, CE documents supply.
