ZP50‑2‑1.5ECS‑125
Belmont
Product Description

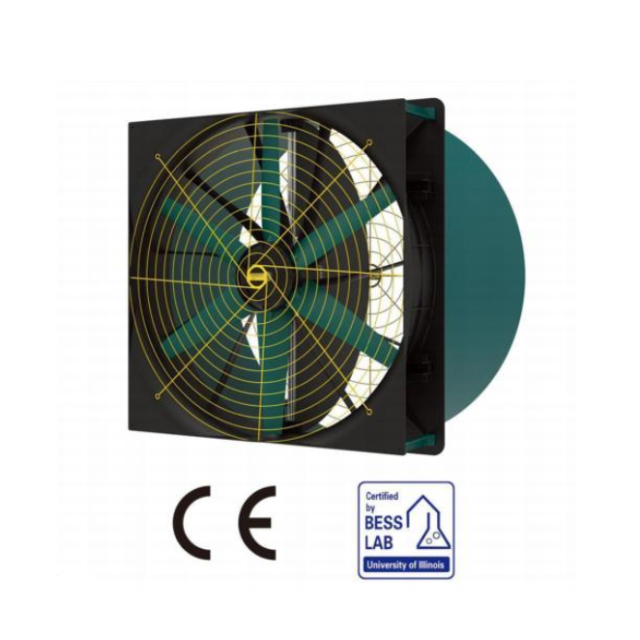

Model ZP50‑2‑1.5ECS‑125 is Belmont 50‑inch high‑pressure axial fan, rated power 1.5kW. Equipped with EC brushless motor for stepless speed regulation. Delivers high static pressure performance, CE certified. Specially designed for duct ventilation & closed livestock barns with system resistance, widely used in modern farms and agricultural greenhouses.

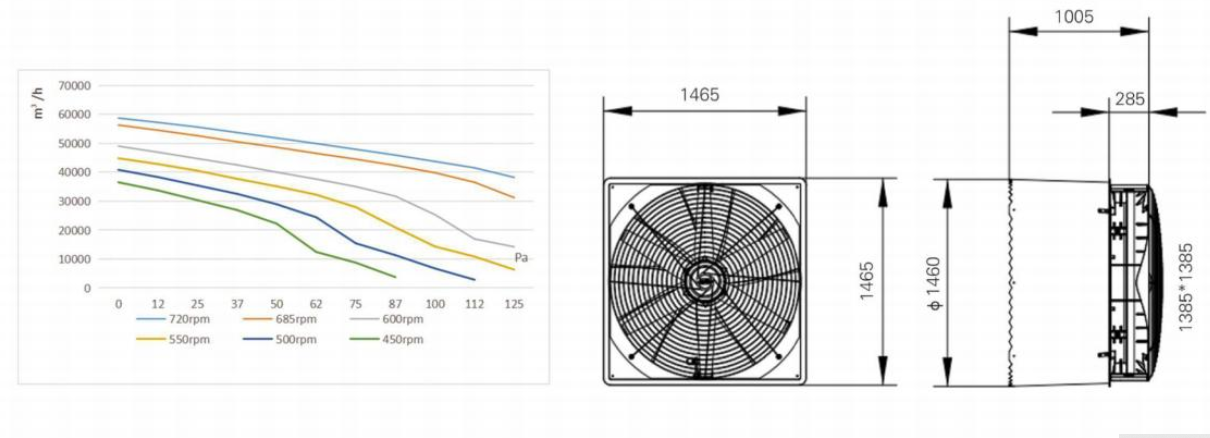

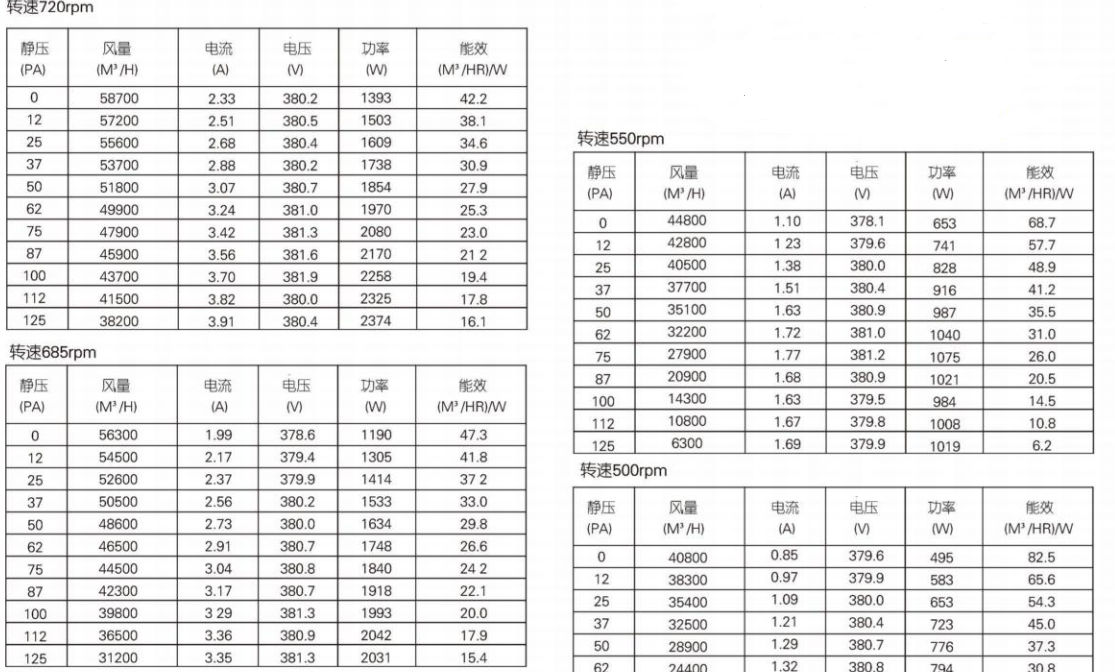

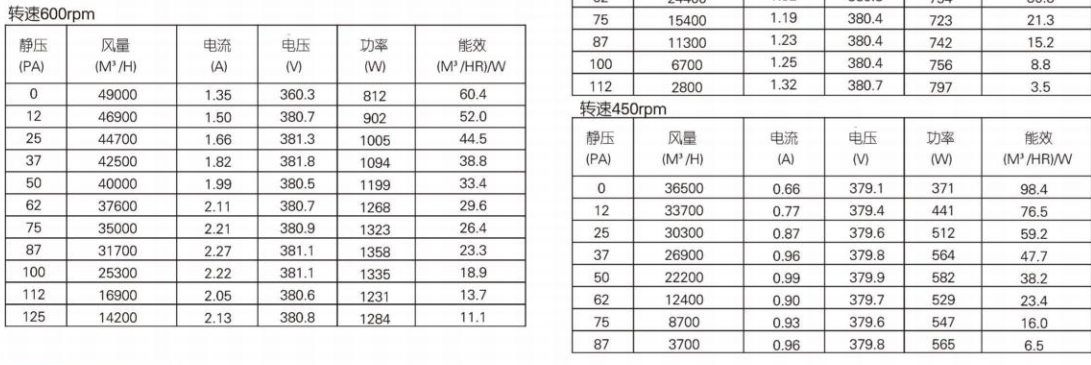

‑ EC brushless motor, 0‑10V / PWM stepless speed control, energy‑saving & low maintenance ‑ High‑pressure design, good performance against duct / cooling pad resistance ‑ Dynamically balanced impeller, stable running and low noise ‑ CE certification for European market, 24‑hour continuous operation available ‑ Complete airflow‑static‑pressure curve for engineering selection ‑ Flange wall‑mount installation; OEM & ODM custom service supported
表格
Item | Parameter |
|---|---|
ART.NO | ZP50‑2‑1.5ECS‑125 |
Size | 50 Inch High Pressure Fan |
Motor Type | EC Brushless Motor |
Rated Power | 1500W (1.5kW) |
Voltage | 380V 3‑Phase |
Speed Range | 450‑720rpm |
Certification | CE |
Number Of Blades | 6 |
Blade of materials | PP |
Application | Poultry house, pig barn, closed livestock house, greenhouse, duct ventilation system |
Broiler house, layer house, pig pen, closed livestock barn, agricultural greenhouse, ventilation system with cooling pad or air duct resistance.
PDF catalogue available, technical selection support, OEM & logo customization, CE documents supply.
