BTM-88JBX
Belmont
BTM-88JBX
Product Description
OUR PRODUCTS

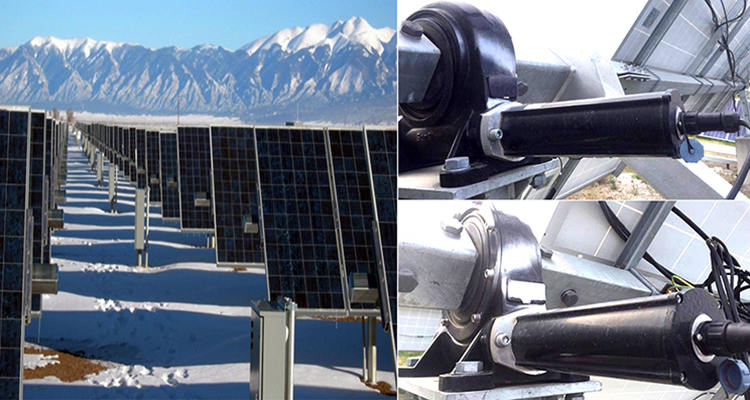

BTM-88JBX 12v ~ 48v automatic solar tracker motor sunlight tracker motor 300Nm
special encoder (4 poles or 8 poles) for solar tracking system, position-limit for solar tracking system, PMDC motor or BLDC motor.
SPECIFICATIONS
| Model | Protect Feature | VOLTAGE (VDC) | Speed Ratio | TORQUE (Nm) | Max. Peak Torque (Nm) | SPEED (r/min) | Temperature (℃) |
| BTM-88JBX | IP65 | 12V -48V | 0 - 2000 | 300 | 500 | 0 - 20 | -40 - +80 |

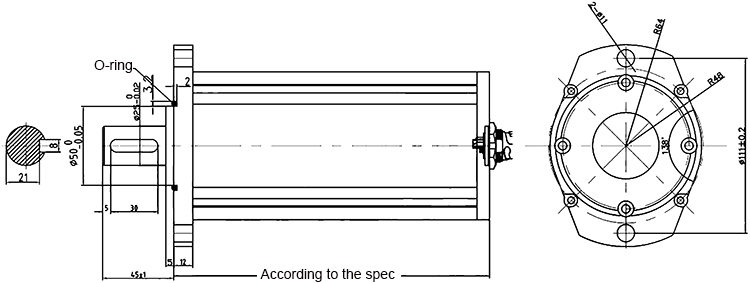

OUTLINE DRAWING
PACKING & SHIPPING
We use reliable packaging and logistics, for customer to receive the products in good condition. Also, we could customize according to your requirements.
RELATED PRODUCTS
Model | Protect Feature | VOLTAGE (VDC) | Speed Ratio | TORQUE (Nm) | Max. Peak Torque (Nm) | SPEED (r/min) | Temperature (℃) |
 BMMST56 | IP65 | 12V -48V | 0 - 2000 | 40 | 100 | 0 - 20 | -40 - +80 |
 BMMST76 | IP65 | 12V -48V | 0 - 2000 | 150 | 250 | 0 - 20 | -40 - +80 |
BMMST120 | IP65 | 12V -48V | 0 - 2000 | 500 | 700 | 0 - 20 | -40 - +80 |
