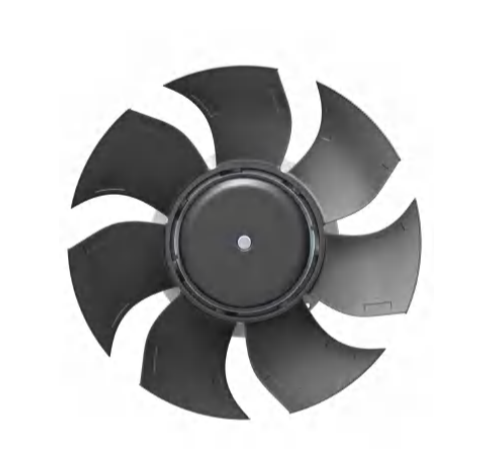

EC92-A250-037
Product Description
Key Advantages:
✔ Up to 30% energy savings over AC fans
✔ Ultra-low noise and compact integrated design
Custom Options:
✔ Integrated diffuser or guide vane
✔ IP44 waterproof grade
✔ Custom connectors
✔ All nameplates, customer logos, cable lengths, and parameters can be customized.
| Motor technology | EC |
| Supply frequency | 50/60 Hz |
| Rated voltage | 220/230 VAC |
| Power input | 140 W |
| Curren | 1.0A |
| Speed | 2900 RPM |
| Max air Volume | 1500 m³/h |
| Perm. amb. temp | -20℃ ~ +60℃ |
| Blades count | 7 |
| Protection class | IP44 |
| Insulation class | F |
| Rotor Material | Carbon Steel |
| Acoustic | 63 dB(A) |
| Blade Material | Plastic |
| Attachment | High Concave Guard Grille |
Performance Curves

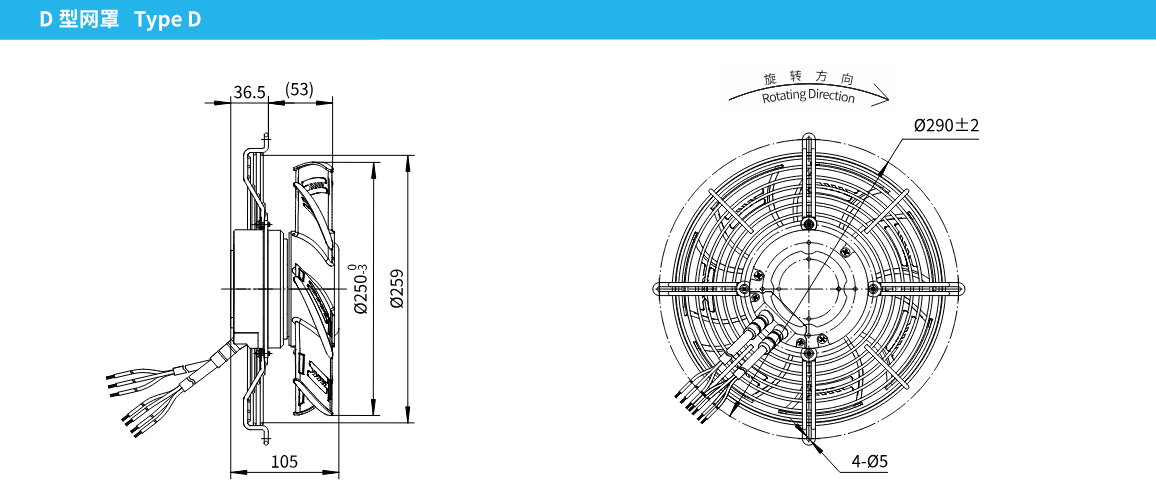

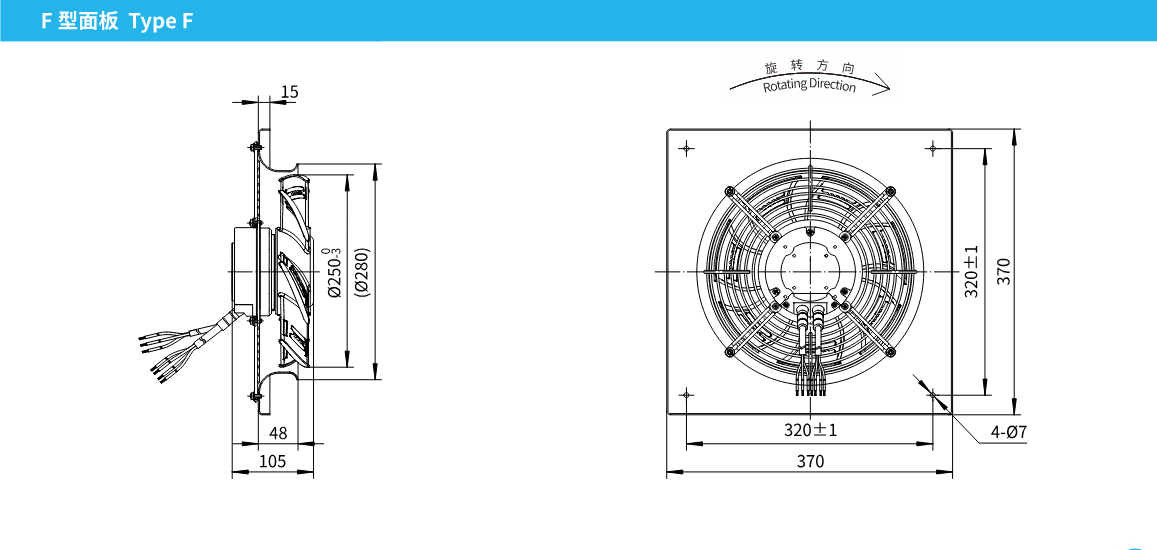

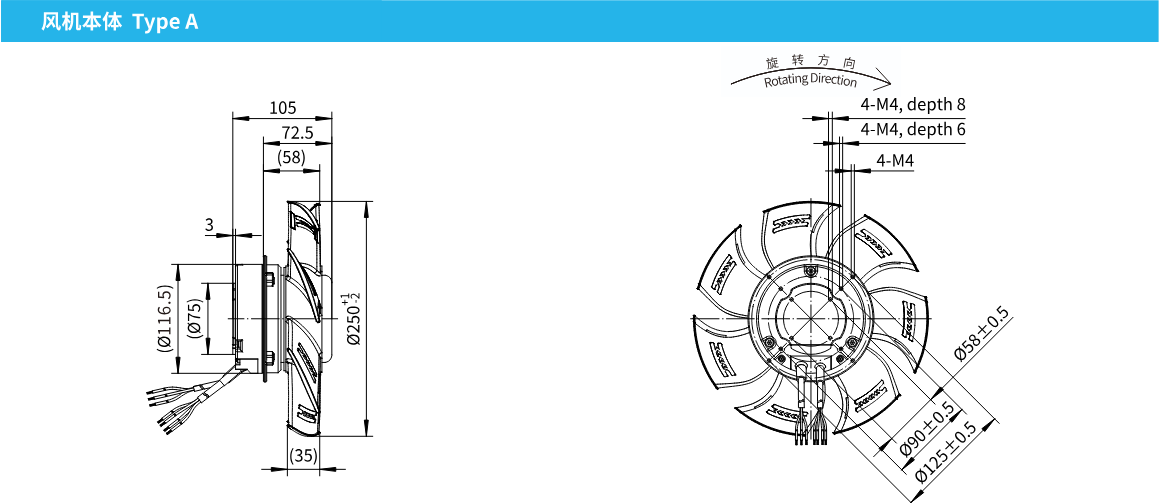

Dimensions (mm)
