Product Description

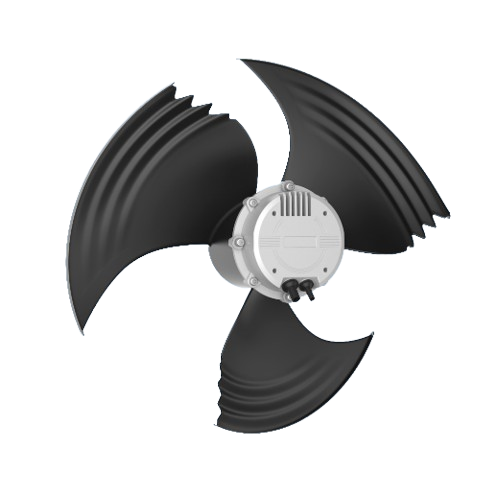

Belmont series of all-new X-TBlade axial fans are developed for the purposes of heat pumps
applications. The blades of the fans are brand-new designed that bring the customers
better user experience.
● Easy Installation
One-piece solution. Motor, blade and guard grill are matched and assembled perfectly
with one piece, users can install the fan assembly easily.
Compact design. The fans have the advantages of both external and internal rotor motor
powered fans.
● Excellent Efficiency

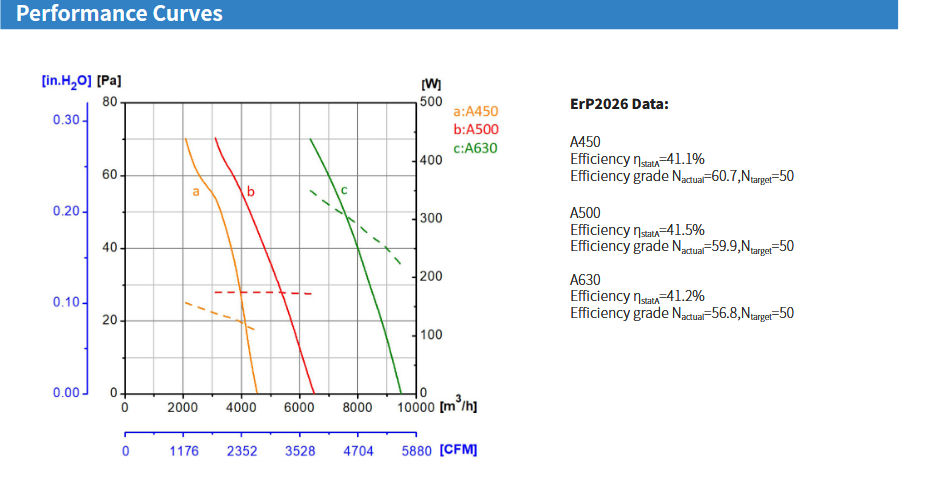

Industry leading static pressure efficiency. All the fans meet up-to-date ErP directive.
Aerodynamic efficiencies of the fans are China Energy Efficiency of Ventilators (Grade 1 )
certified.
● High Quality
Fan vibration and noise performance are leading the motor fan industry.
Optimized aerodynamically bionic blade design by using CFD technology, the fans have
great performance and structural strength.
40+ reliability tests performed.
● High Ingress Protection Level
The ingress protection of the motors is IP55.
Fan assemblies have outstanding anti-corrosion capability, and the factory can
accommodate customer's need to build C3 and C4 anti-corrosion requirement fans.

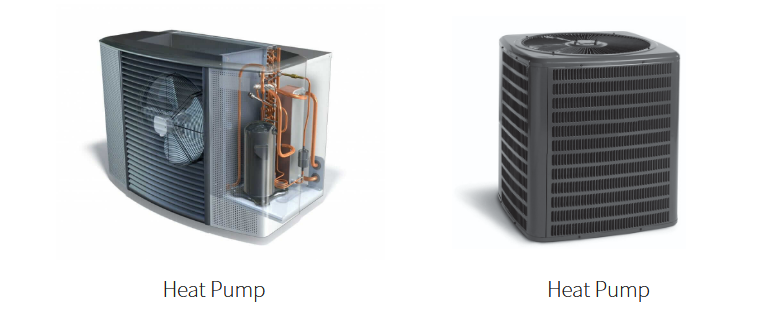

Applications: Heat pumps, air-conditioning units, etc.
