ZMD50‑2‑1.5ECS‑125
Belmont
Product Description
Model ZMD50‑2‑1.5ECS‑125 is Belmont Wind‑Aero138 series venturi‑cone livestock fan, rated power 1.5 kW. Adopt venturi cone structure to converge airflow and extend air throw distance. Built‑in EC brushless motor supports 0‑10V / PWM stepless speed regulation, CE certified. Designed for large‑scale poultry and pig farm negative‑pressure ventilation & cooling.

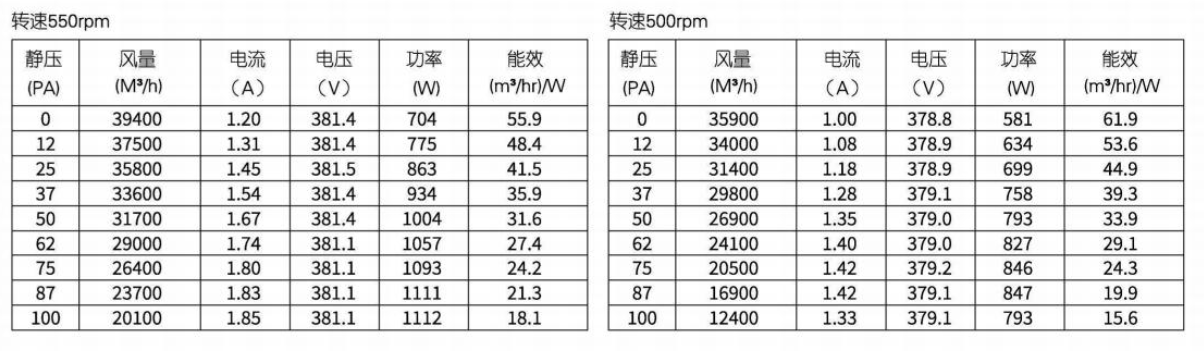

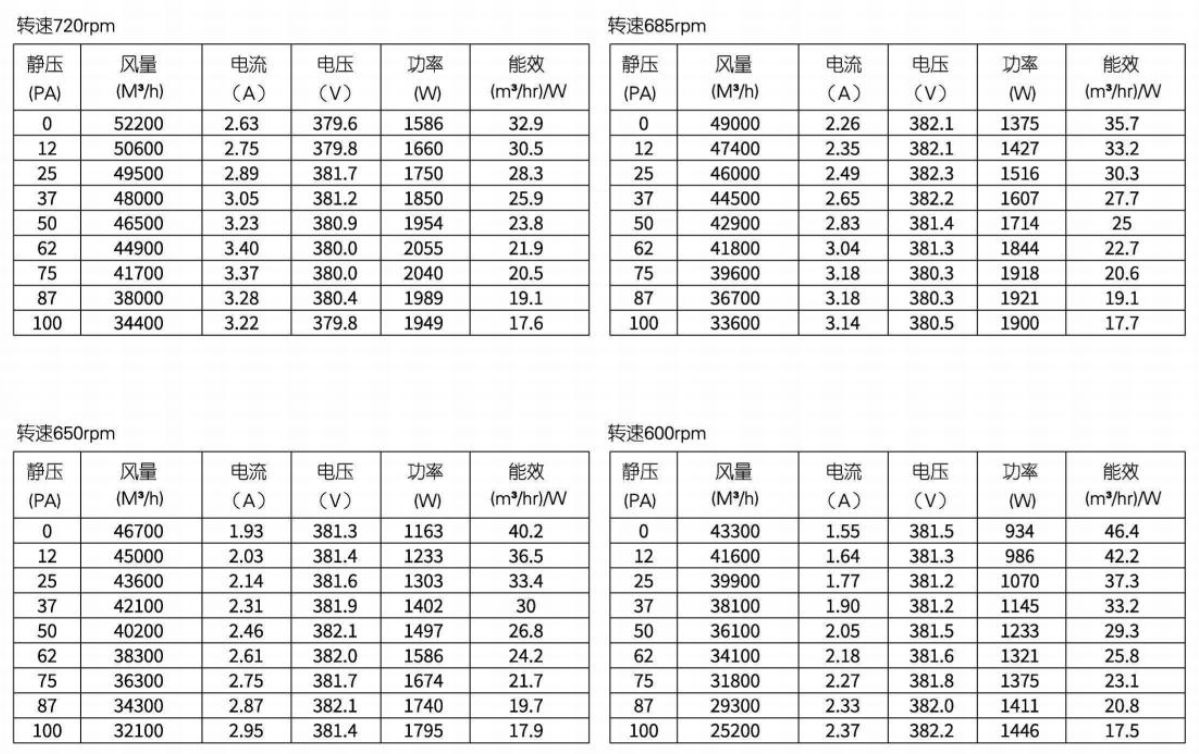

‑ Venturi cone housing, optimizes airflow pattern, reduces turbulence & extends air throw ‑ EC brushless motor, 0‑10V / PWM stepless speed control, energy‑saving & low maintenance ‑ Dynamically balanced impeller for stable operation and low noise ‑ CE certification for European market, suitable for long‑time continuous running ‑ Complete airflow‑static‑pressure curve for engineering selection ‑ Flange wall‑mount installation; OEM & ODM custom service available
表格
Item | Parameter |
|---|---|
ART.NO | ZMD50‑2‑1.5ECS‑125 |
Model Name | Wind‑Aero138 Venturi Fan |
Size | 50 Inch |
Motor Type | EC Brushless Motor |
Rated Power | 1500W (1.5kW) |
Voltage | 380V~460V 3‑Phase |
Speed Control | 0‑10V / PWM stepless speed |
Speed Range | 500‑720rpm |
Certification | CE |

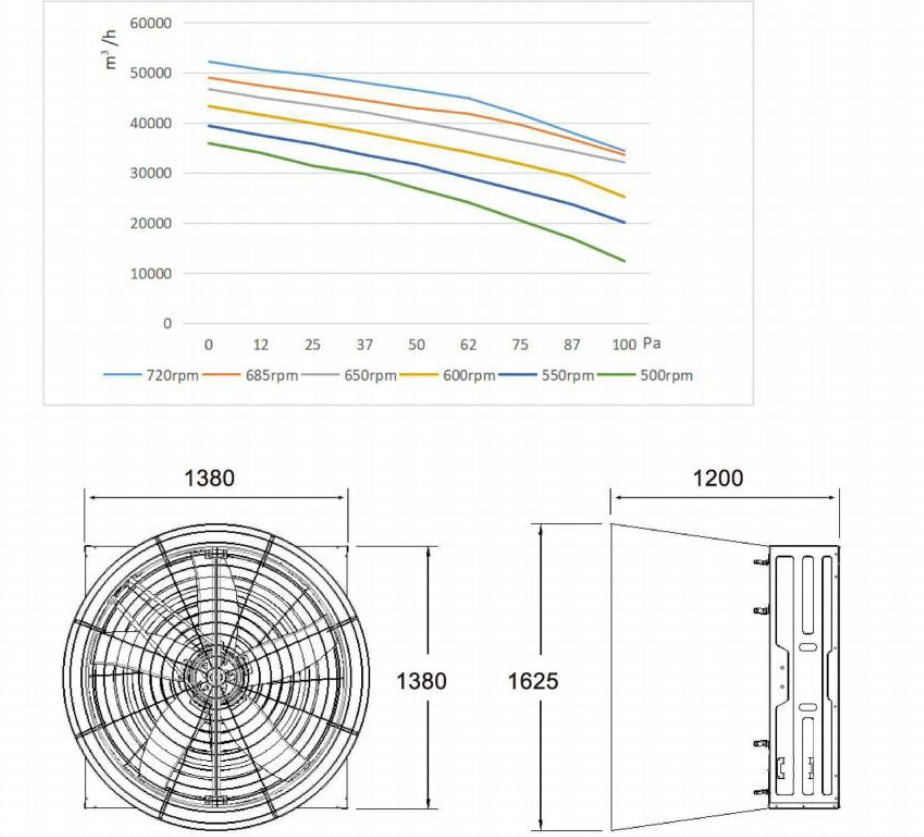

Dimension | 1380×1380×1625 mm |
Application | Poultry house, pig barn, large‑scale livestock farm, agricultural greenhouse |
Broiler house, layer house, pig pen, large‑scale livestock barn, agricultural greenhouse negative‑pressure ventilation; venturi‑cone design ideal for projects requiring long air throw.
PDF catalogue available, technical selection support, OEM & logo customization, CE documents supply.
