BLM-A82IPM
Belmont
BLM-A82IPM
Product Description
OUR PRODUCTS

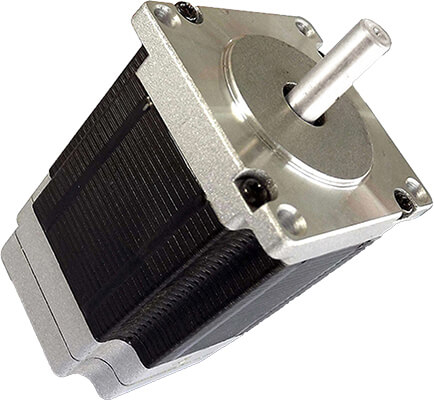

48V High Speed Low Torque Brushless DC Motor BLDC
Product Application: medical equipment, logistics transmission, mechanical equipment, solar tracking device etc.
Customized manufacturing available
SPECIFICATIONS
| Model | Voltage (VDC) | NO LOAD CURRENT(A) | NO LOAD SPEED(r/min) | RATED LOAD CURRENT(A) | RATED LOAD SPEED(r/min) | Toque (N.m) | Power (W) | Length (mm) |
| BLM-A82IPM-1 | 48 | 0.98 | 2941 | 5.74 | 2500 | 0.8 | 209 | 70 |
| BLM-A82IPM-2 | 48 | 1.95 | 2941 | 11.48 | 2500 | 1.6 | 419 | 100 |
| BLM-A82IPM-3 | 150 | 0.94 | 2941 | 5.51 | 2500 | 2.4 | 628 | 130 |

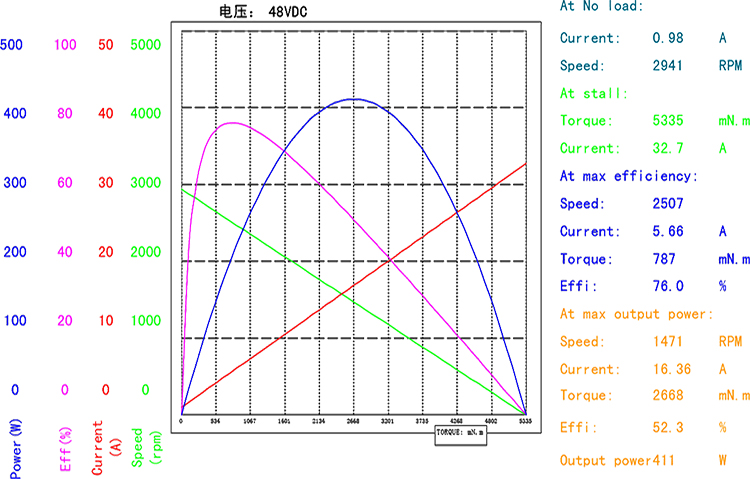

PERFORMANCE CURVE

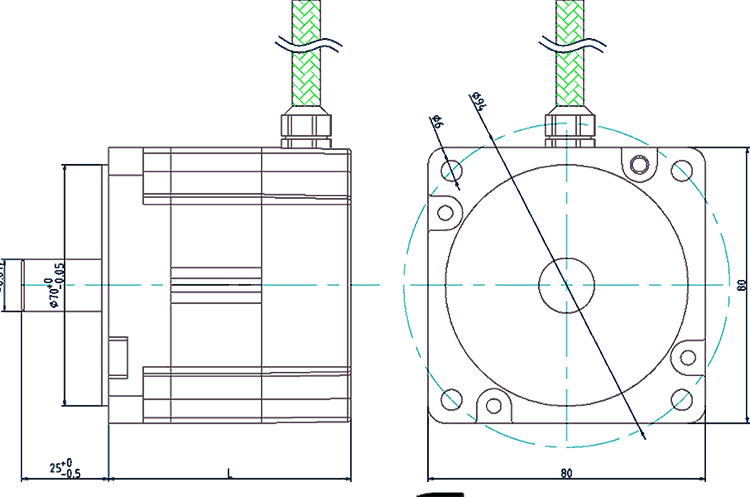

OUTLINE DRAWING
PACKING & SHIPPING
We use reliable packaging and logistics, for customer to receive the products in good condition. Also, we could customize according to your requirements.
Introduction
◆ Founded in 2001 to provide high-quality products and sourcing solutions at a competitive cost.
◆ Manufacturing Facilities
Manufacturing plants located in multiple regions in China
◆ Service locations:
Fort Wayne, Indiana, USA(Responsible for after-sales service of products)
Changzhou, Jiangsu, China
◆ 2021 sales of $650 million
In 2021, 1 million fans and 600,000 motors will be produced
◆ The total number of employees is 268, including 20 technical teams and 26 sales team
