Product Description
OUR PRODUCTS

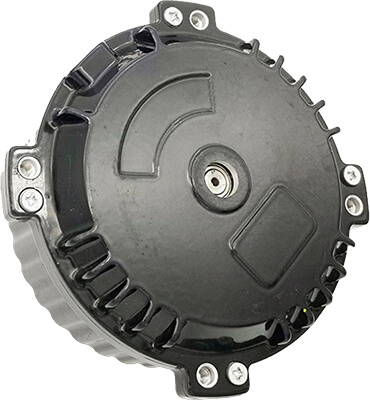

High Speed Low Torque 24V Brushless DC Motor
Product Application: draught fan,medical equipment, mechanical equipment etc.
Customized manufacturing available
SPECIFICATIONS
| Model | VOLTAGE (VDC) | NO LOAD | RATED LOAD | TORQUE (Nm) | Cogging Torque (Nm) | Power (W) | LENGTH (mm) | ||
CURRENT (A) | SPEED (r/min) | CURRENT (A) | SPEED (r/min) | ||||||
BLM-110IPM-1 | 24 | 1.43 | 4046 | 9.54 | 3500 | 0.5 | 0.03 | 183 | 71 |
BLM-110IPM-2 | 24 | 1.84 | 5202 | 12.27 | 4500 | 0.5 | 0.03 | 236 | 71 |
BLM-110IPM-3 | 24 | 2.25 | 6358 | 15 | 5500 | 0.5 | 0.03 | 288 | 71 |
BLM-110IPM-4 | 24 | 1.89 | 4046 | 12.6 | 3500 | 0.66 | 0.035 | 242 | 71 |
BLM-110IPM-5 | 24 | 2.59 | 5549 | 17.28 | 4800 | 0.66 | 0.035 | 332 | 71 |
BLM-110IPM-6 | 24 | 2.97 | 6358 | 19.8 | 5500 | 0.66 | 0.035 | 380 | 71 |

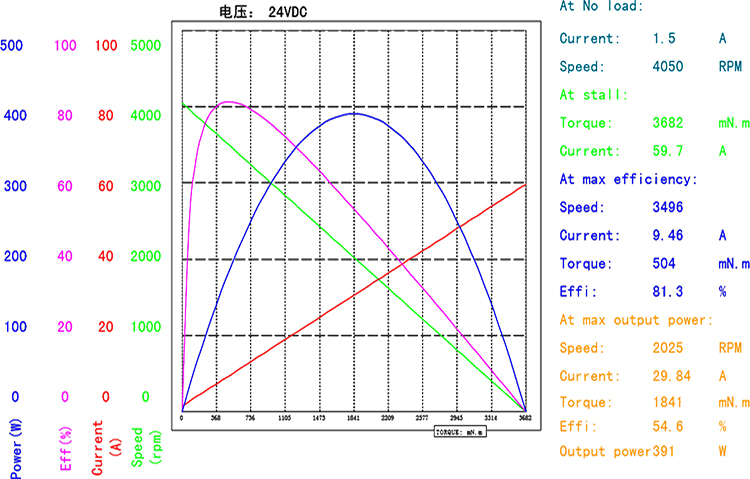

PERFORMANCE CURVE

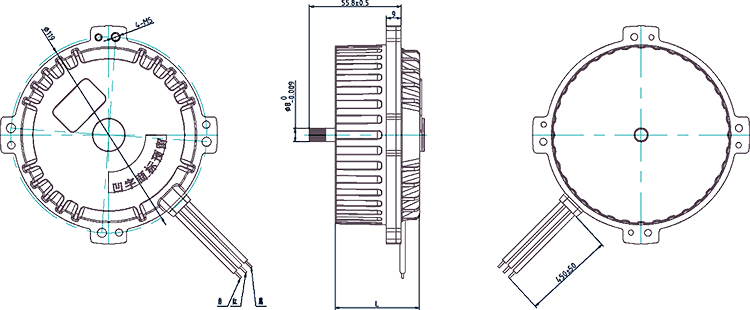

OUTLINE DRAWING
PACKING & SHIPPING
We use reliable packaging and logistics, for customer to receive the products in good condition. Also, we could customize according to your requirements.
 |  |
 |  |
 |  |
Introduction
◆ Founded in 2001 to provide high-quality products and sourcing solutions at a competitive cost.
◆ Manufacturing Facilities
Manufacturing plants located in multiple regions in China
◆ Service locations:
Fort Wayne, Indiana, USA(Responsible for after-sales service of products)
Changzhou, Jiangsu, China
◆ 2021 sales of $650 million
In 2021, 1 million fans and 600,000 motors will be produced
◆ The total number of employees is 268, including 20 technical teams and 26 sales team
Our Quality Control
◆ Quality is everyone’s job → TQM -Total Quality Management
◆ Higher quality means lower costs → TQC – Total Quality Cost Control.
◆ Continuous Improvement → ISO9000 & Six Sigma Tools
◆ Working with customer as a Team → Teamwork & Two Way Communications
Our customers
Your satisfaction is always our goal
