Product Description
OUR PRODUCTS

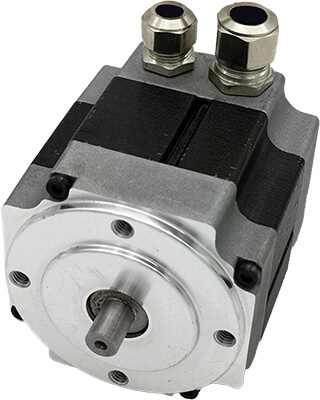

24V High Speed Low Torque Brushless DC Motor BLDC
Product Application: medical equipment, logistics transmission, mechanical equipment, solar tracking device etc.
Customized manufacturing available
SPECIFICATIONS
| Model | Voltage (VDC) | NO LOAD CURRENT (A) | NO LOAD SPEED (r/min) | RATED LOA CURRENT(A) | RATED LOAD SPEED (r/min) | Toque (N.m) | Power (W) | Torque Constant (N.m/A) | Length (mm) |
| BLM-62WS-1 | 24 | 1.01 | 3488 | 6.11 | 3000 | 0.35 | 110 | 0.069 | 62 |
| BLM-62WS-2 | 48 | 1.01 | 3488 | 6.11 | 3000 | 0.7 | 220 | 0.137 | 92 |
| BLM-62WS-3 | 48 | 1.51 | 3488 | 9.16 | 3000 | 1.05 | 330 | 0.137 | 122 |

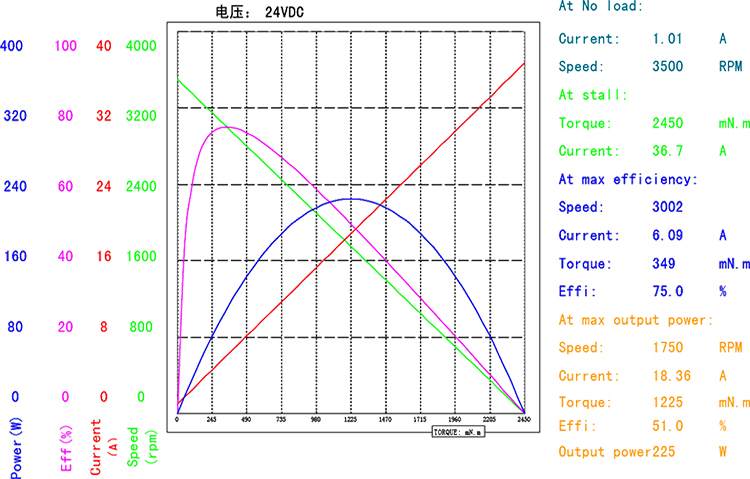

PERFORMANCE CURVE

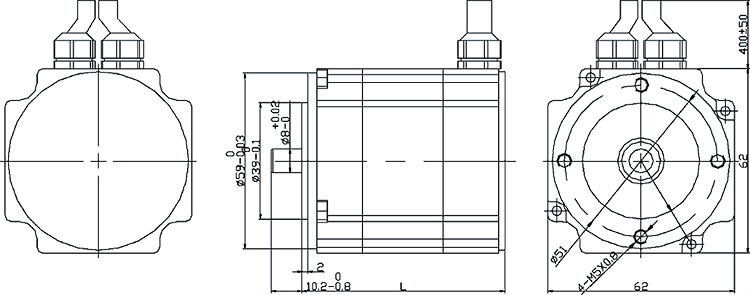

OUTLINE DRAWING
PACKING & SHIPPING
We use reliable packaging and logistics, for customer to receive the products in good condition. Also, we could customize according to your requirements.
 |  |
 |  |
 |  |
Introduction
◆ Founded in 2001 to provide high-quality products and sourcing solutions at a competitive cost.
◆ Manufacturing Facilities
Manufacturing plants located in multiple regions in China
◆ Service locations:
Fort Wayne, Indiana, USA(Responsible for after-sales service of products)
Changzhou, Jiangsu, China
◆ 2021 sales of $650 million
In 2021, 1 million fans and 600,000 motors will be produced
◆ The total number of employees is 268, including 20 technical teams and 26 sales team
Our Quality Control
◆ Quality is everyone’s job → TQM -Total Quality Management
◆ Higher quality means lower costs → TQC – Total Quality Cost Control.
◆ Continuous Improvement → ISO9000 & Six Sigma Tools
◆ Working with customer as a Team → Teamwork & Two Way Communications
Our customers
Your satisfaction is always our goal
