BMF-310-450 Series AC Centrifugal Plug Fans
BMF-310-450 Series AC Centrifugal Plug Fans
Product Description
OUR PRODUCTS

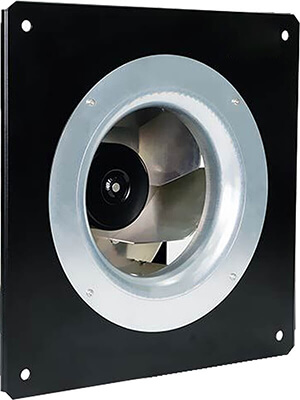

BMF-310-450 Series AC Centrifugal Plug Fans
Plug Fans make the fan a unit that can form a fan wall. EC technology with high efficiency makes the productivity of a fan reach over 68% for all sizes from 192mm to 560mm. It composes the compact EC outer rotor motor and integrated control electronics drive-in complex, achieving the European ERP2020 energy efficiency standard. The non-hall motor drive design renders more stability and longer service life to the motors.
SPECIFICATIONS
Model | Size (mm) | Voltage (V) | Frequency (Hz) | Input Power (W) | Current (A) | Air Volume (m3/h) | Noise (dBA) | Max Environmental Temperture(℃) | Weight (Kg) |
BMF-4D310-GH | 310 | 400 | 50/60 | 150/185 | 0.39/0.35 | 1700/1950 | 62 | 50 | 8.5 |
BMF-4E310-GH | 310 | 230 | 50/60 | 140/190 | 0.68/0.82 | 1650/1900 | 61 | 50 | 8.5 |
BMF-6E310-GH | 310 | 230 | 50/60 | 77/90 | 0.35/0.43 | 1160/1400 | 53 | 60 | 8.5 |
BMF-4D355-GH | 310 | 400 | 50/60 | 220/310 | 0.47/0.48 | 2200/2500 | 65/67 | 70/50 | 9.5 |
BMF-4E355-GH | 310 | 230 | 50/60 | 220/310 | 1.0/1.38 | 2200/2500 | 64/68 | 70/40 | 9.5 |
BMF-4B400-GH | 400 | 115 | 60 | 820 | 7.1 | 4600 | 71 | 70 | 17.0 |
BMF-4D400-GH | 400 | 400 | 50 | 540/350 | 1.0/0.53 | 4100 | 66 | 50 | 14.0 |
BMF-4E400-GH | 400 | 230 | 50 | 560 | 2.46 | 4100 | 66 | 50 | 15.0 |
BMF-6D400-GH | 400 | 230/400 | 50 | 250 | 1.26/0.73 | 2750 | 50 | 60 | 14.0 |
BMF-6E400-GH | 400 | 230 | 50 | 180 | 0.83 | 2700 | 50 | 60 | 14.0 |
BMF-4D450-GH | 450 | 400 | 50 | 690/350 | 1.26/0.58 | 5100 | 74 | 50 | 17.5 |
BMF-4D450-GH02 | 450 | 230/400 | 50 | 810 | 2.35/1.36 | 5600 | 74 | 60 | 19.5 |
BMF-4E450-GH | 450 | 230 | 50 | 830 | 4.1 | 5600 | 74 | 50 | 19.5 |
BMF-6D450-GH | 450 | 400 | 50 | 330 | 0.9 | 4000 | 60 | 60 | 17.5 |
BMF-6E450-GH | 450 | 230 | 50 | 300 | 1.4 | 3900 | 60 | 60 | 17.5 |
