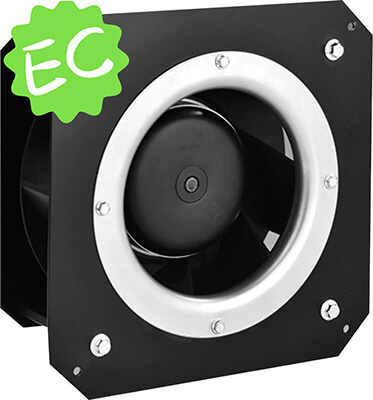

BMF-175-280 Series EC Centrifugal Plug Fans
Belmont
BMF-175-280 Series EC Centrifugal Plug Fans
Product Description
OUR PRODUCTS
BMF-175-280 Series EC Centrifugal Plug Fans
Centrifugal fan with backward curved blades is mainly used for air intake. Since most of the pressure buildup occurs in the impeller, a vortex housing is generally not required. Centrifugal fans have excellent hydraulic efficiency and low noise levels, making them ideal for high pressures.
Application: centrifugal fans are used in applications such as central air conditioning installation or ventilation systems of buildings.
Customized manufacturing available
SPECIFICATIONS
Model | Size (mm) | Voltage (V) | Frequency (Hz) | Input Power (W) | Current (A) | Air Volume (m3/h) | Noise (dBA) | Max Environmental Temperture(℃) | Weight (Kg) |
BMF-4E175 | 175 | 230 | 50/60 | 125 | 1.0 | 720 | 75 | 50 | 2.4 |
BMF-4E192 | 192 | 230 | 50/60 | 120 | 1.0 | 750 | 65 | 50 | 2.6 |
BMF-6E192 | 192 | 230 | 50/60 | 171 | 1.3 | 956 | 65 | 50 | 2.2 |
BMF-4E220 | 220 | 230 | 50/60 | 115 | 1.0 | 1000 | 65 | 50 | 3.0 |
BMF-6E220 | 220 | 230 | 50/60 | 105 | 1.0 | 990 | 66 | 50 | 3.9 |
BMF-6E220-01 | 220 | 230 | 50/60 | 180 | 1.3 | 1200 | 68 | 50 | 3.9 |
BMF-4E225 | 225 | 230 | 50/60 | 95 | 0.8 | 1025 | 65 | 50 | 3.2 |
BMF-6E225 | 225 | 230 | 50/60 | 210 | 1.6 | 1280 | 68 | 50 | 4.1 |
BMF-6E250 | 250 | 230 | 50/60 | 270 | 1.8 | 1550 | 72 | 50 | 5.4 |
BMF-6E280 | 280 | 230 | 50/60 | 245 | 1.7 | 1700 | 75 | 50 | 6.6 |
