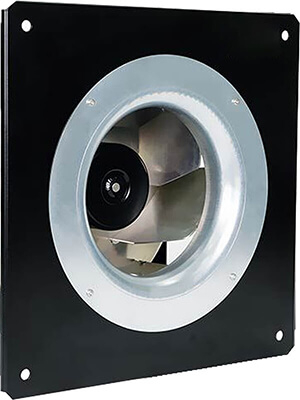

BMF-500-630 Series AC Centrifugal Plug Fans
Plug Fans make the fan a unit that can form a fan wall. EC technology with high efficiency makes the productivity of a fan reach over 68% for all sizes from 192mm to 560mm. It composes the compact EC outer rotor motor and integrated control electronics drive-in complex, achieving the European ERP2020 energy efficiency standard. The non-hall motor drive design renders more stability and longer service life to the motors.
SPECIFICATIONS
Model | Size (mm) | Voltage (V) | Frequency (Hz) | Input Power (W) | Current (A) | Air Volume (m3/h) | Noise (dBA) | Max Environmental Temperture(℃) | Weight (Kg) |
BMF-4D500-GH | 500 | 400 | 50 | 1300/1100 | 2.65/1.6 | 7980/7310 | 77 | 50 | 29.5 |
BMF-4E500-GH | 500 | 230 | 50 | 1550 | 6.8 | 7900 | 77 | 40 | 29.5 |
BMF-6D500-GH | 500 | 230 | 50/60 | 430/650 | 2.1/3.1 | 5300/6200 | 65/68 | 60 | 29.5 |
BMF-6E500-GH | 500 | 230/400 | 50/60 | 390/600 | 2.17/1.25 | 5300/6200 | 66*69 | 60 | 29.5 |
BMF-4D560-GH | 560 | 400 | 50 | 1850/850 | 3.6/1.75 | 10500 | 79 | 40 | 41.0 |
BMF-4D560-GH50 | 560 | 400 | 50 | 1800/850 | 3.4/1.68 | 11000/7770 | 79 | 45 | 41.0 |
BMF-4D560-GH52 | 560 | 400 | 50 | 2700/2070 | 4.78/3.3 | 13000/11700 | 81 | 50 | 45.0 |
BMF-4D560-GH54 | 560 | 400 | 50 | 2300 | 3.7 | 12000 | 81 | 50 | 42.0 |
BMF-6D560-GH | 560 | 230/400 | 50 | 780 | 2.69/1.55 | 8400 | 69 | 50 | 37.0 |
BMF-6E560-GH | 560 | 230 | 50 | 700 | 3.1 | 8400 | 69 | 50 | 37.0 |
BMF-4T560-GH | 560 | 230/400 | 50 | 2200 | 6.5/3.7 | 10600 | 79 | 50 | 41.0 |
BMF-4D630-GH | 630 | 230/400 | 50 | 4300 | 11.8/6.8 | 15000 | 81 | 60 | 64.0 |
BMF-6D630-GH | 630 | 230/400 | 50 | 1200 | 4.68/2.7 | 11750 | 76 | 50 | 44.0 |
