Product Description
The X-DWING Series Internal Rotor Axial Fan is a premium AC fan with an aluminum-magnesium alloy impeller for enhanced performance.
Features:
Easy Installation: Integrated design for quick setup.
High Efficiency: Meets ErP2015, some models comply with ErP2026.
Superior Quality: Low noise, optimized CFD design, and rigorous testing.
Strong Protection: IP55+ rating, customizable anti-corrosion options.
Applications:
Central air conditioning
Precision condenser units
Heat pump systems
Reliable, efficient, and built for high-end cooling solutions

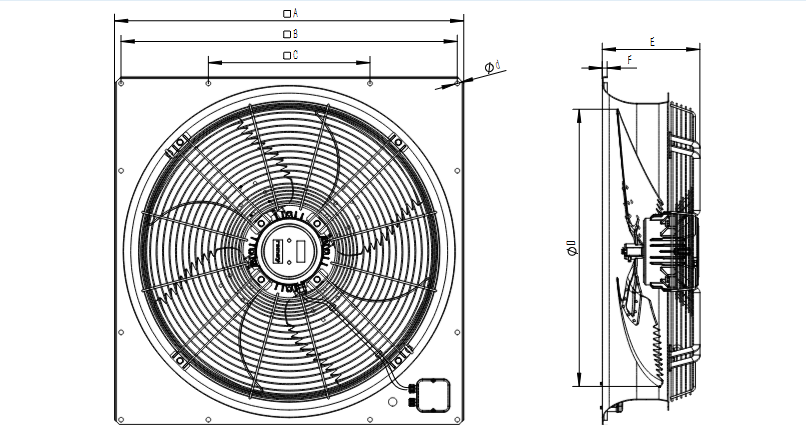

Model | A | B | C | D | E | F | d |
BMF.A6T-710S-4FIAV0 | 850 | 810 | / | 708 | 294 | 20 | 14.5 |
BMF.A6T-800S-4FISV0 | 970 | 910 | / | 787 | 302 | 15 | 14.5 |
BMF.A6T-850S-4FIAV0 | 975 | 910 | / | 858 | 292 | 16 | 14.5 |
BMF.A6T-850S-5FIAV0 | 975 | 910 | / | 860 | 294 | 16 | 14.5 |
BMF.A6T-910S-4FIAV0 | 1080 | 1040 | 500 | 903 | 302 | 16 | 14.5 |
BMF.A6T-910S-4FIAV3 | 1086 | 1040 | 400 | 903 | 302 | 16 | 12 |
