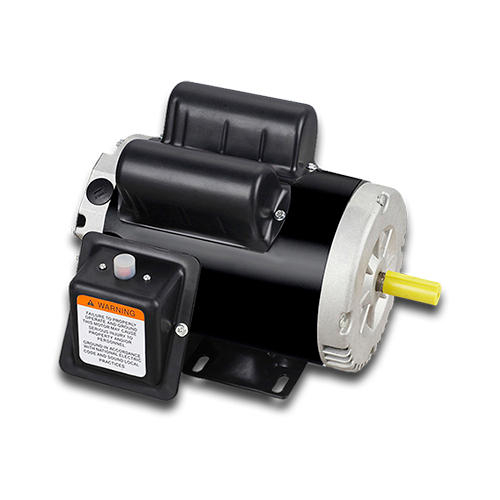

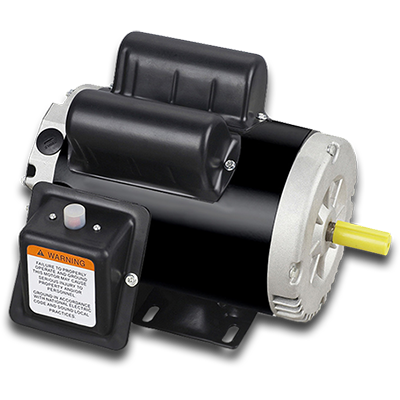

BMM Single Phase Dripproof Air-Compressor Motor
HP:1HP-10HP
Pole:2P, 4P
Frame: 56-215T
Start Torque: Tst≥250%
Enclosure: ODP
IP Class: IP23
Service factor: 1.0,1.15
CSA&CUS,UL certified
Accept Manual Thermal Protector
Model | Voltage (V) | Frequency (Hz) | Power (hp) | Speed (rpm) | NEMA FRAME | ENCL. | S.F | Full Load AMPS | Weight (Kg) |
BMMD56 1S2C | 115/208-230 | 60 | 1 | 3600 | 56 | ODP | 1.15 | 12/6.4-5.8 | 13.6 |
BMMD56 1S4C | 115/208-230 | 60 | 1800 | 56 | ODP | 1.15 | 11.5/6.0-5.7 | 17.2 |
BMMD143T1S4C | 115/208-230 | 60 | 1800 | 143T | ODP | 1.15 | 11.5/6.0-5.7 | 18.6 |
BMMD56 1.5S2C | 115/208-230 | 60 | 1.5 | 3600 | 56 | ODP | 1.15 | 14.5/7.8-7.2 | 16.8 |
BMMD56 1.5S4C | 115/208-230 | 60 | 1800 | 56 | ODP | 1.15 | 15.5/8.1-7.6 | 19.0 |
BMMD145T1.5S4C | 115/208-230 | 60 | 1800 | 145T | ODP | 1.15 | 15.5/8.1-7.6 | 20.4 |
BMMD145T1.5S2C | 115/208-230 | 60 | 3600 | 145T | ODP | 1.15 | 14.5/8.0-7.6 | 18.6 |
BMMD56 2S2C | 115/208-230 | 60 | 2 | 3600 | 56 | ODP | 1.15 | 18/10.1-9.2 | 19.9 |
BMMD56 2S4C | 115/208-230 | 60 | 1800 | 56 | ODP | 1.15 | 19.0/10-9.3 | 21.3 |
BMMD145T2S4C | 115/208-230 | 60 | 1800 | 145T | ODP | 1.15 | 19.0/10-9.3 | 22.7 |
BMMD145T2S2C | 115/208-230 | 60 | 3600 | 145T | ODP | 1.15 | 18/10.2-9.4 | 21.8 |
BMMD56 3S2C | 115/208-230 | 60 | 3 | 3600 | 56 | ODP | 1.15 | 25/14.2-13 | 27.2 |
BMMD145T3S2C | 115/208-230 | 60 | 3600 | 145T | ODP | 1.15 | 25/14.2-13 | 30.4 |
BMMD182T3S4A | 208-230/460 | 60 | 1800 | 182T | ODP | 1.15 | 13.5-12/6.2 | 39.9 |
BMMD184T5S2A | 208-230/460 | 60 | 5 | 3600 | 184T | ODP | 1.15 | 22-20/10 | 43.1 |
BMMD184T5S4A | 208-230/460 | 60 | 1800 | 184T | ODP | 1.15 | 22.5-20/10 | 43.5 |
BMMD566S2A | 230 | 60 | 6 | 3600 | 56 | ODP | 1 | 22.8 | 25.4 |
BMMD213T7.5S4A | 208-230/460 | 60 | 7.5 | 1800 | 213T | ODP | 1.15 | 32.8-30/15.2 | 63.4 |
BMMD215T10S4A | 208-230/460 | 60 | 10 | 1800 | 215T | ODP | 1 | 41.2-39/19.5 | 69.3 |
We use reliable packaging and logistics, for customer to receive the products in good condition. Also, we could customize according to your requirements.
