ZMD50‑2‑1.5YSP8‑125
Belmont
Product Description

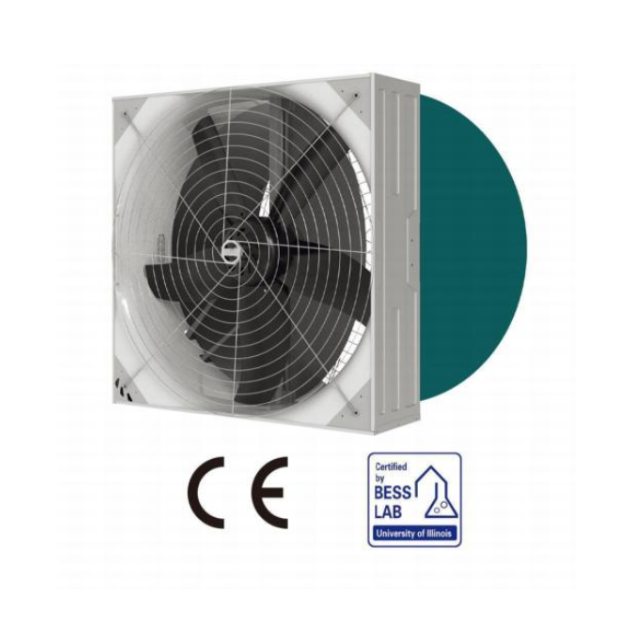

Model ZMD50‑2‑1.5YSP8‑125 is Belmont Wind‑Aero138 series venturi‑cone livestock fan, rated power 1.5 kW. Venturi‑cone design converges airflow for longer air throw. Equipped with heavy‑duty AC induction motor for 24‑hour non‑stop farm operation, CE certified. Widely used for negative‑pressure cooling & ventilation in large‑scale poultry and pig farms.

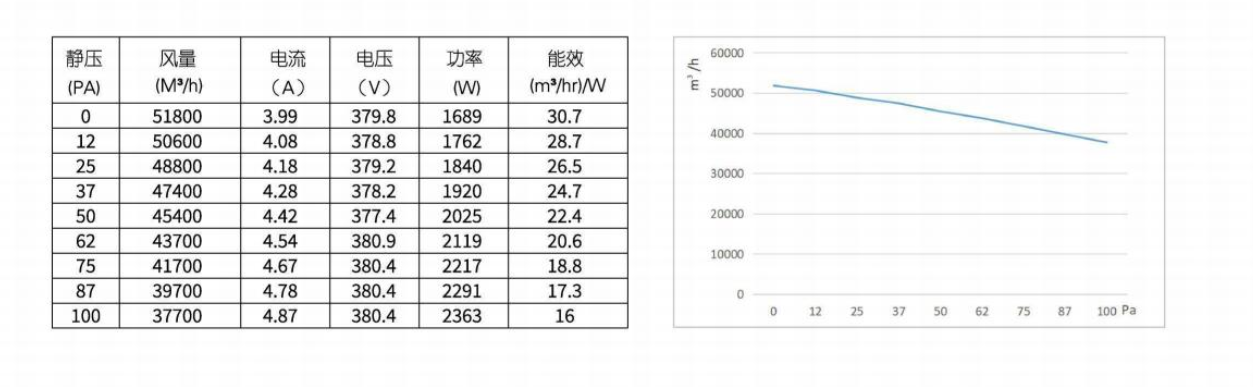

‑ Venturi cone housing, optimizes airflow pattern, reduces turbulence & extends air throw distance ‑ Heavy‑duty AC induction motor, robust for 24‑hour continuous livestock‑farm operation ‑ Dynamically balanced impeller for stable operation and low noise ‑ CE certification for European export projects; variable speed by external VFD drive ‑ Complete airflow‑static‑pressure curve for engineering selection ‑ Flange wall‑mount installation; OEM & ODM custom service available
表格
Item | Parameter |
|---|---|
ART.NO | ZMD50‑2‑1.5YSP8‑125 |
Model Name | Wind‑Aero138 Venturi Fan |
Size | 50 Inch |
Motor Type | AC Induction Motor |
Rated Power | 1500W (1.5kW) |
Voltage | 380V 3‑Phase |
Speed Control | Fixed speed, variable speed with external VFD |

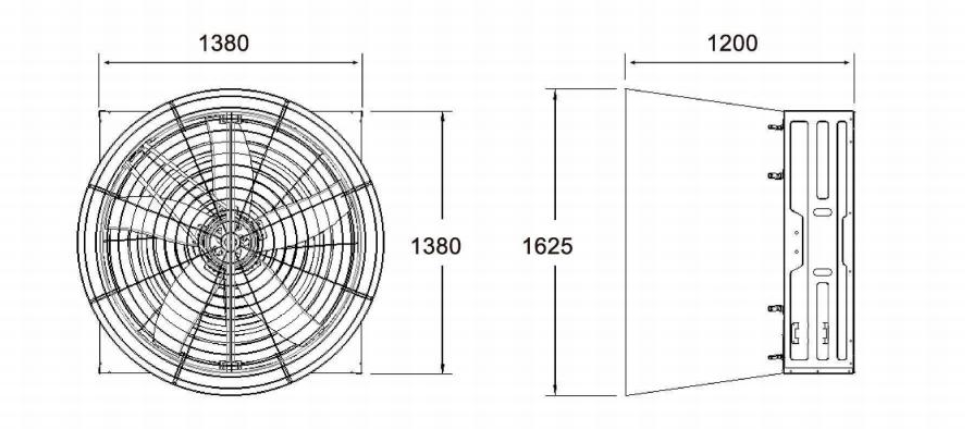

Dimension | 1380×1380×1625 mm |
Certification | CE |
Number Of Blades | 5 |
Blade of Material | PP |
Application | Poultry house, pig barn, large‑scale livestock farm, agricultural greenhouse |
Broiler house, layer house, pig pen, large‑scale livestock barn, agricultural greenhouse negative‑pressure ventilation. Venturi‑cone design is ideal for projects requiring long air throw.
PDF catalogue available, technical selection support, OEM & logo customization, CE documents supply.
