Product Description

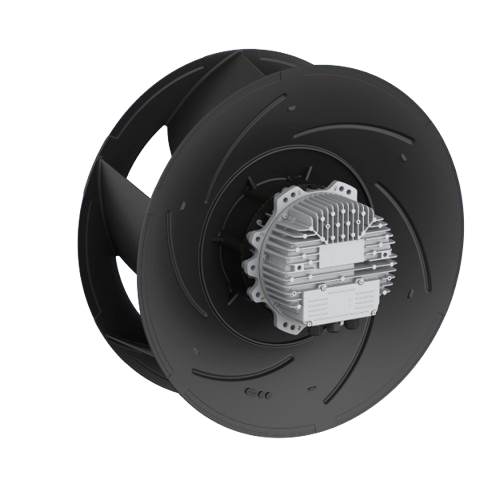

Belmont all-new B-Flowbackward curved centrifugal fan is developed for the purposes of highend HVAC units applications. The impeller, motor and controller of the fan are brand-new
designed that bring the customers better user experience.
● Easy Installation
√ One-piece solution. Motor, blade, guide vane, guard grill and mounting plate are matched
and assembled perfectly with one piece. Users can install the fan assembly easily.
● Excellent Efficiency
√ Industry leading static pressure efficiency meets ErP2015/ErP2020(Draft) Standard
requirements.
√ Aerodynamic efficiency as high as 75% and above.
√ Compact structure external rotor EC motor. Efficiency of each motor meets IE4 standard.
● High Quality
√ Optimized aerodynamic three-dimensional impeller designed by using CFD technology.
√ Industry leading noise level.
√ 40+ reliability tests performed.
● Various Control Functions
√ With 10VDC and 20VDC outputs.
√ Possesses DC 4-20mA, 0-10VDC (15VDC)/PWM signal control.
√ Phase-loss, over-current, over-voltage, over-temperature protections and signal control
and fault alarm functions.
√ RS485 communication function with MODBUS-RTU interface to control and monitor

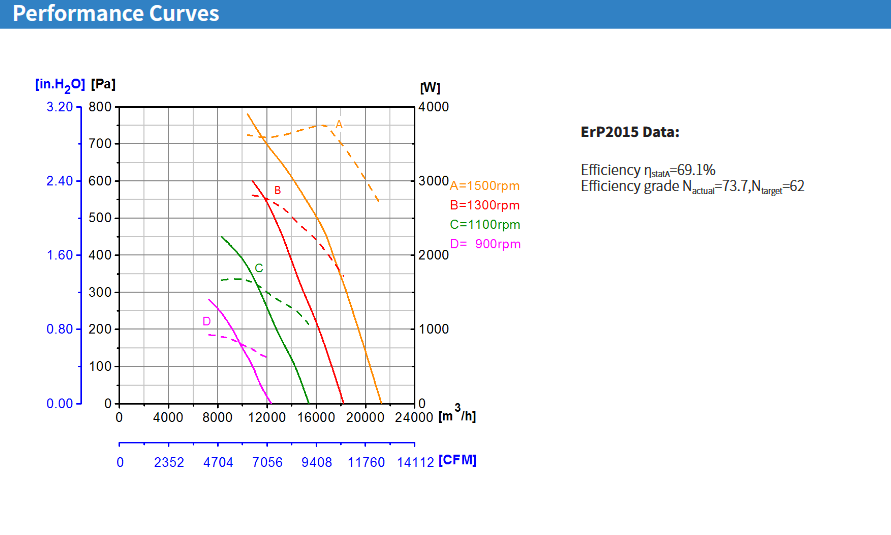

motor status of on/off, speed and malfunction, etc.ErP2015 Data:
Efficiency ηstatA=69.1%
Efficiency grade Nactual=73.7,Ntarget=62
The fan can be widely used for AHU, data center, fan wall, etc.
