Product Description
AC Backward Centrifugal Fans.pdf
OUR PRODUCTS

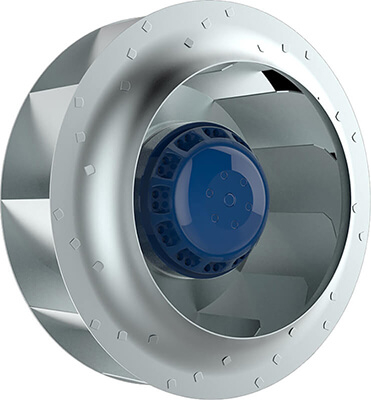

BMF-500-630 Series AC Backward Curved Centrifugal Fan
Centrifugal fan with backward curved blades is mainly used for air intake. Since most of the pressure buildup occurs in the impeller, a vortex housing is generally not required. Centrifugal fans have excellent hydraulic efficiency and low noise levels, making them ideal for high pressures.
Application: centrifugal fans are used in applications such as central air conditioning installation or ventilation systems of buildings.
Customized manufacturing available
SPECIFICATIONS
Model | Size (mm) | Voltage (V) | Frequency (Hz) | Input Power (W) | Current (A) | Air Volume (m3/h) | Noise (dBA) | Max Environmental Temperture(℃) | Weight (Kg) |
BMF-4D500-GH | 500 | 400 | 50 | 1560/1100 | 2.9/1.6 | 7400 | 77 | 50 | 17.0 |
BMF-4D500-GH51 | 500 | 400 | 50 | 1300/1100 | 2.65/1.6 | 7980/7310 | 77 | 50 | 17.0 |
BMF-4E500-GH | 500 | 230 | 50 | 1550 | 6.8 | 7600 | 77 | 40 | 17.0 |
BMF-4E500-GH50 | 500 | 230 | 50 | 1550 | 6.8 | 7800 | 77 | 40 | 17.0 |
BMF-4T500-GH | 500 | 230/400 | 50 | 1760 | 5.8/3.3 | 9400 | 75 | 60 | 19.0 |
BMF-6D500-GH | 500 | 230/400 | 50/60 | 390/600 | 2.17/1.25 | 5200/6100 | 66/69 | 60 | 17.0 |
BMF-6D500-GH50 | 500 | 230/400 | 50/60 | 390/600 | 2.17/1.25 | 5300/6200 | 66/69 | 60 | 17.0 |
BMF-6E500-GH | 500 | 230 | 50/60 | 430/650 | 2.1/3.1 | 4800/5600 | 65/68 | 60 | 17.0 |
BMF-6E500-GH50 | 500 | 230 | 50/60 | 430/650 | 2.1/3.1 | 5300/6200 | 65/68 | 60 | 17.0 |
BMF-4D560-GH | 560 | 400 | 50 | 1850/850 | 3.6/1.75 | 10500 | 79 | 40 | 23.0 |
BMF-4D560-GH03 | 560 | 230/400 | 50 | 2200 | 6.5/3.7 | 10600 | 79 | 45 | 23.0 |
BMF-4D560-GH50 | 560 | 400 | 50 | 1800/850 | 3.4/1.68 | 11000/7770 | 79 | 45 | 24.0 |
BMF-4D560-GH52 | 560 | 400 | 50 | 2700/2070 | 4.78/3.3 | 13000/11700 | 81 | 50 | 28.0 |
BMF-4D560-GH54 | 560 | 400 | 50 | 2300 | 3.7 | 12000 | 81 | 50 | 25.0 |
BMF-6D560-GH | 560 | 230/400 | 50 | 780 | 2.69/1.55 | 7500 | 69 | 50 | 19.0 |
BMF-6D560-GH50 | 560 | 230/400 | 50 | 780 | 2.69/1.55 | 8400 | 69 | 50 | 20.0 |
BMF-6E560-GH | 560 | 230 | 50 | 700 | 3.1 | 7600 | 69 | 50 | 19.0 |
BMF-6E560-GH50 | 560 | 230 | 50 | 700 | 3.1 | 8400 | 69 | 50 | 20.0 |
BMF-4D630-GH-3 | 630 | 230/400 | 50 | 4300 | 11.8/6.8 | 15000 | 81 | 60 | 44.0 |
BMF-4D630-GH50 | 630 | 230/400 | 50 | 4300 | 11.8/6.8 | 15000 | 81 | 60 | 44.0 |
BMF-6D630-GH | 630 | 230/400 | 50 | 1200 | 4.68/2.7 | 9500 | 76 | 50 | 24.0 |
BMF-6D630-GH50 | 630 | 230/400 | 50 | 1200 | 4.68/2.7 | 11750 | 76 | 50 | 24.0 |
