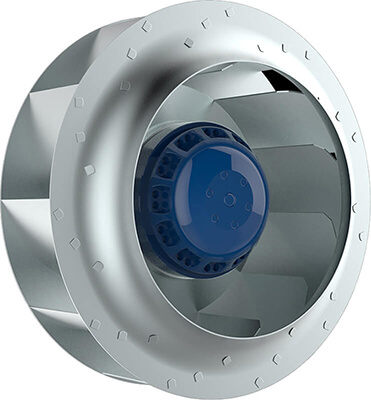

BMF-225-355 Series AC Backward Curved Centrifugal Fan
BMF-225-355 Series AC Backward Curved Centrifugal Fan
Product Description
AC Backward Centrifugal Fans.pdf
OUR PRODUCTS
BMF-225-355 Series AC Backward Curved Centrifugal Fan
Centrifugal fan with backward curved blades is mainly used for air intake. Since most of the pressure buildup occurs in the impeller, a vortex housing is generally not required. Centrifugal fans have excellent hydraulic efficiency and low noise levels, making them ideal for high pressures.
Application: centrifugal fans are used in applications such as central air conditioning installation or ventilation systems of buildings.
Customized manufacturing available
SPECIFICATIONS
Model | Size (mm) | Voltage (V) | Frequency (Hz) | Input Power (W) | Current (A) | Air Volume (m3/h) | Noise (dBA) | Max Environmental Temperture(℃) | Weight (Kg) |
BMF-2B225-GH | 225 | 120 | 60 | 210 | 1.8 | 1160 | 75 | 60 | 2.2 |
BMF-2E225-GH | 225 | 230 | 50/60 | 150/200 | 0.7/0.95 | 1150/1300 | 73/75 | 70/50 | 2.2 |
BMF-4E225-GH | 225 | 230 | 50/60 | 48/52 | 0.23/0.25 | 580/710 | 59/61 | 80/65 | 2.2 |
BMF-4E250-GH | 250 | 230 | 50/60 | 70 | 0.35/0.31 | 820/980 | 64 | 80/70 | 2.5 |
BMF-2E250-GH | 250 | 230 | 50 | 200 | 0.9 | 1500 | 75 | 60 | 2.8 |
BMF-2B250-GH | 250 | 120 | 60 | 250 | 2.2 | 1550 | 75 | 60 | 2.8 |
BMF-4E280-GH | 280 | 230 | 50 | 98 | 0.46 | 940 | 62 | 50 | 2.9 |
BMF-2E280-GH | 280 | 230 | 50 | 250 | 1.1 | 1800 | 76 | 50 | 2.9 |
BMF-2D280-GH | 280 | 400 | 50 | 620 | 1.1 | 2800 | 82 | 75 | 8.0 |
BMF-2E280-GH03 | 280 | 230 | 50 | 680 | 3.0 | 2960 | 80 | 50 | 7.5 |
BMF-2E280-GH06 | 280 | 230 | 50/60 | 250/300 | 1.15/1.4 | 1620/1800 | 76 | 50 | 2.9 |
BMF-2E280-GH10 | 280 | 230 | 50 | 1000 | 4.6 | 2830 | 80 | 60 | 10.0 |
BMF-2E280-GH11 | 280 | 230 | 50 | 795 | 3.55 | 3240 | 80 | 65 | 9.6 |
BMF-2B280-GH | 280 | 120 | 60 | 320 | 2.7 | 1700 | 77 | 50 | 2.9 |
BMF-4B310-GH- | 310 | 115 | 60 | 200 | 1.8 | 1900 | 61 | 50 | 4.3 |
BMF-4E310-GH | 310 | 230 | 50/60 | 140/190 | 0.68/0.82 | 1650/1900 | 61 | 50 | 4.3 |
BMF-4D310-GH | 310 | 400 | 50/60 | 150/185 | 0.35/0.39 | 1700/1950 | 62 | 50 | 4.3 |
BMF-6E310-GH | 310 | 230 | 50/60 | 77/90 | 0.35/0.43 | 1160/1400 | 53 | 60 | 4.3 |
BMF-4E355-GH | 355 | 230 | 50/60 | 220/310 | 1.0/1.38 | 2200/2500 | 64/68 | 70/40 | 5.2 |
BMF-4D355-GH | 355 | 400 | 50/60 | 220/310 | 0.47/0.48 | 2200/2500 | 65/67 | 70/50 | 5.2 |
BMF-4B355-GH | 355 | 115 | 60 | 320 | 2.85 | 2500 | 68 | 50 | 5.2 |
BMF-4E355-GH | 355 | 230 | 50 | 240/200/180 | 1.1/1.0/0.9 | 1810/2120 | 68 | 50 | 7.2 |
BMF-6E355-GH | 355 | 230 | 50/60 | 110/135 | 0.5/0.6 | 1480/1740 | 61 | 55 | 5.2 |
