Product Description

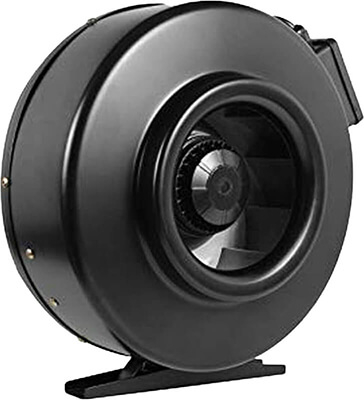

BMF-225-280 Series AC Circular Duct Fans
low-noise centrifugal fan with front curved blades, which has low noise, relatively small airflow, and a large increase in static pressure, to save space.
Applications: compact air handling units, air curtains, fan coil units, air heaters for factory buildings or cooling fans for forced cooling power converters, generators or telecommunications systems.
Customized manufacturing available
Model | Size (mm) | Voltage (V) | Frequency (Hz) | Input Power (W) | Current (A) | Air Volume (m3/h) | Noise (dBA) | Max Environmental Temperture(℃) | Weight (Kg) |
BMF-2B225 | 225 | 120 | 60 | 200 | 1.7 | 850 | 71 | 60 | 4.9 |
BMF-2E225 | 225 | 230 | 50/60 | 150/200 | 0.7/0.95 | 830/900 | 65 | 50 | 4.9 |
BMF-2B250 | 250 | 120 | 60 | 240 | 2.1 | 1100 | 73 | 60 | 5.1 |
BMF-2E250 | 250 | 230 | 50 | 200 | 0.9 | 1080 | 70 | 60 | 5.1 |
BMF-2B280 | 280 | 120 | 60 | 310 | 2.6 | 1550 | 74 | 50 | 6.1 |
BMF-2E280 | 280 | 230 | 50 | 280 | 1.1 | 1560 | 68 | 50 | 6.1 |
 |  |
