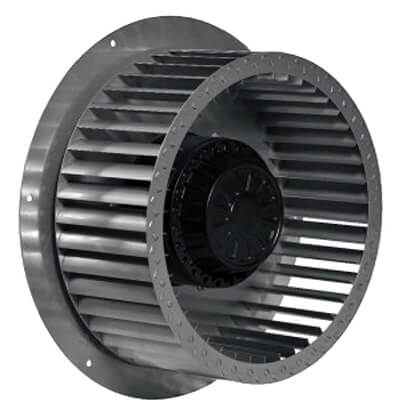

BMF-315-500 Series AC Forward Curved Centrifugal Fans
Low-noise centrifugal fan with front curved blades, which has low noise, relatively small airflow, and a large increase in static pressure, which saves space. Our EC technology allows the fan to be adaptive automatically and achieves constant air volume control, which perfectly solves the loss of air volume due to the resistance of the pipeline and the filter.
Applications: ccompact air handling units, air curtains, fan coil units, air heaters for factory buildings or cooling fans for forced cooling power converters, generators or telecommunications systems.
Customized manufacturing available
SPECIFICATIONS
Model | Size (mm) | Voltage (V) | Frequency (Hz) | Input Power (W) | Current (A) | Air Volume (m3/h) | Noise (dBA) | Max Environmental Temperture(℃) | Weight (Kg) |
BMF-4E315-GQ | 315 | 230 | 50 | 2300 | 10 | 4000 | 87 | 40 | 21.0 |
BMF-4D315-GQ | 315 | 230/400 | 50 | 2200 | 6.9/4.0 | 4000 | 87 | 60 | 21.0 |
BMF-6E315-GQ | 315 | 230 | 50 | 720 | 3.6 | 2800 | 77 | 70 | 17.0 |
BMF-6D315-GQ | 315 | 230/400 | 50 | 780 | 2.6/1.5 | 3200 | 77 | 80 | 17.0 |
BMF-4D355-GQ | 355 | 230/400 | 50 | 3500 | 10.2/5.9 | 6000 | 92 | 55 | 26.0 |
BMF-6D355-GQ | 355 | 230/400 | 50 | 1150 | 4.0/2.3 | 4100 | 80 | 70 | 26.0 |
BMF-4K355-GQ | 355 | 480 | 60 | 3220 | 4.8 | 4950 | 83 | 50 | 32.0 |
BMF-4D400-GQ | 400 | 230/400 | 50 | 4800 | 13.9/8.0 | 6000 | 84 | 45 | 39.0 |
BMF-6D400-GQ | 400 | 230/400 | 50 | 2800 | 8.44/4.85 | 7000 | 86 | 65 | 32.0 |
BMF-8D400-GQ | 400 | 230/400 | 50 | 1700 | 6.43/3.7 | 5800 | 76 | 50 | 32.0 |
BMF-6D450-GQ | 450 | 230/400 | 50 | 3500 | 10.4/6.0 | 7500 | 87 | 40 | 35.0 |
BMF-8D450-GQ | 450 | 230/400 | 50 | 2000 | 7.13/4.1 | 7200 | 80 | 40 | 35.0 |
BMF-6D500-GQ | 500 | 400 | 50 | 4400 | 7.5 | 9150 | 84 | 50 | 45.5 |
