BMF-200-355 Series AC Single Inlet Forward Curved Centrifugal Blower
Belmont
BMF-200-355 Series AC Single Inlet Forward Curved Centrifugal Blower
Product Description
AC Forward Centrifugal Fans.pdf
OUR PRODUCTS

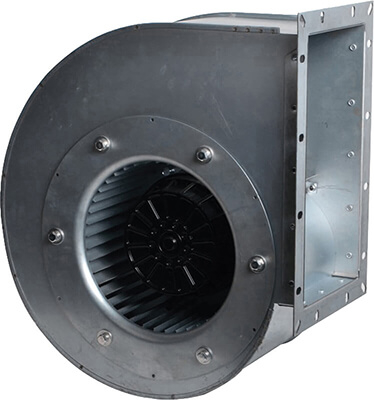

BMF-200-355 Series AC Single Inlet Forward Curved Centrifugal Blower
A duct fan not only shares the characteristics of convenient installation as axial flow fan, but also the characteristics of high pressure, stable airflow, low noise and high efficiency as centrifugal fan.
Application: building ventilation, coil ventilation, etc.
SPECIFICATIONS
Model | Size (mm) | Voltage (V) | Frequency (Hz) | Input Power (W) | Current (A) | Air Volume (m3/h) | Noise (dBA) | Max Environmental Temperture(℃) | Weight (Kg) |
BMF-4E200-GQ | 200 | 230 | 50 | 330 | 1.52 | 1250 | 77 | 60 | 9.1 |
BMF-4D200-GQ | 200 | 400 | 50 | 330 | 0.63 | 1250 | 77 | 60 | 9.1 |
BMF-6E200-GQ | 200 | 230 | 50 | 105 | 0.47 | 720 | 67 | 60 | 9.1 |
BMF-4E225-GQ | 225 | 230 | 50 | 510 | 2.3 | 1800 | 80 | 50 | 11.9 |
BMF-4D225-GQ | 225 | 230/400 | 50 | 490 | 1.43/0.82 | 1750 | 80 | 60 | 11.9 |
BMF-6D225-GQ | 225 | 230/400 | 50 | 300 | 1.4/0.81 | 1380 | 72 | 70 | 11.9 |
BMF-6E225-GQ | 225 | 230 | 50 | 250 | 1.3 | 1300 | 72 | 70 | 11.9 |
BMF-4E250-GQ | 250 | 230 | 50 | 900 | 4.1 | 2500 | 83 | 60 | 16.3 |
BMF-4D250-GQ | 250 | 230/400 | 50 | 870 | 3.1/1.8 | 2500 | 84 | 70 | 16.3 |
BMF-6E250-GQ | 250 | 230 | 50 | 320 | 1.6 | 1650 | 73 | 70 | 16.3 |
BMF-6D250-GQ | 250 | 230/400 | 50 | 320 | 1.4/0.81 | 1730 | 73 | 70 | 16.3 |
BMF-4E280-GQ | 280 | 230 | 50 | 1600 | 7.3 | 3420 | 85 | 50 | 23.4 |
BMF-4D280-GQ | 280 | 230/400 | 50 | 1700 | 5.4/3.2 | 3500 | 85 | 60 | 23.4 |
BMF-6E280-GQ | 280 | 230 | 50 | 450 | 2.2 | 2400 | 74 | 80 | 23.4 |
BMF-6D280-GQ | 280 | 230/400 | 50 | 450 | 1.48/0.85 | 2400 | 74 | 80 | 23.4 |
BMF-4E315-GQ | 315 | 230 | 50 | 2300 | 10.0 | 4000 | 87 | 40 | 29.2 |
BMF-4D315-GQ | 315 | 230/400 | 50 | 2200 | 6.9/4.0 | 4000 | 87 | 60 | 29.2 |
BMF-6E315-GQ | 315 | 230 | 50 | 720 | 3.6 | 2800 | 77 | 70 | 29.2 |
BMF-6D315-GQ | 315 | 230/400 | 50 | 780 | 2.6/1.5 | 2700 | 77 | 80 | 29.2 |
BMF-4D355-GQ | 355 | 230/400 | 50 | 3500 | 10.2/5.9 | 4500 | 92 | 55 | 36.1 |
BMF-6D355-GQ | 355 | 230/400 | 850 | 1150 | 4.0/2.3 | 400 | 80 | 70 | 36.1 |
RELATED PRODUCTS
BMF-120-180 Series AC Single Inlet Forward Curved Centrifugal Blower |
BMF-133-160 Series AC Dual Inlet Forward Curved Centrifugal Blower |
BMF-250-450 Series AC Dual Inlet Forward Curved Centrifugal Blower |
BMF-200-280 Series AC Forward Curved Centrifugal Fans |
BMF-315-500 Series AC Forward Curved Centrifugal Fans |
Introduction
◆ Founded in 2001 to provide high-quality products and sourcing solutions at a competitive cost.

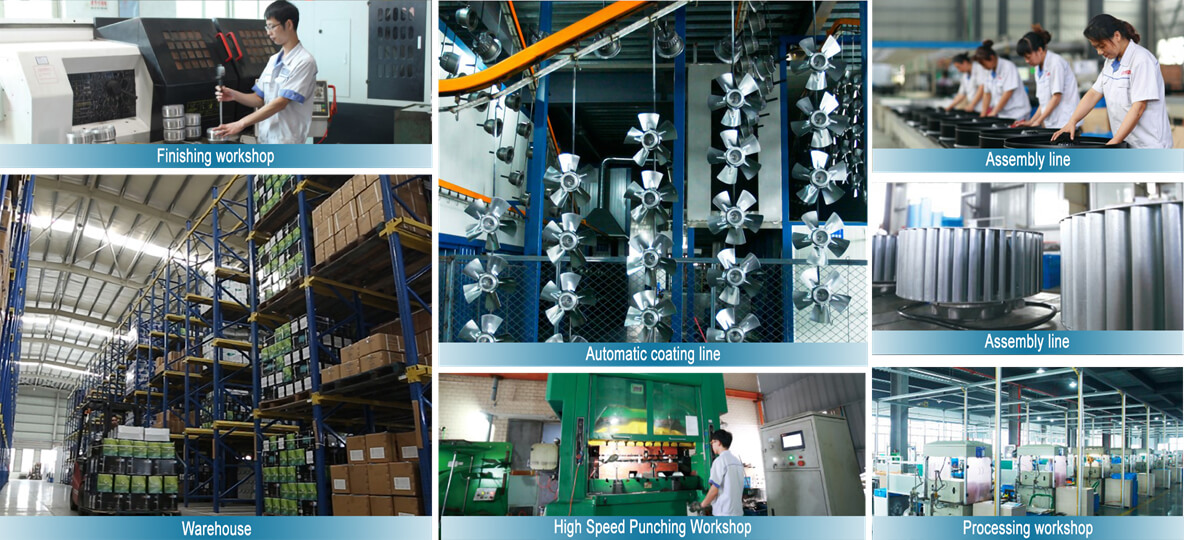

◆ Manufacturing Facilities
Manufacturing plants located in multiple regions in China
◆ Service locations:
Fort Wayne, Indiana, USA(Responsible for after-sales service of products)
Changzhou, Jiangsu, China
◆ 2021 sales of $650 million
In 2021, 1 million fans and 600,000 motors will be produced
◆ The total number of employees is 268, including 20 technical teams and 26 sales team

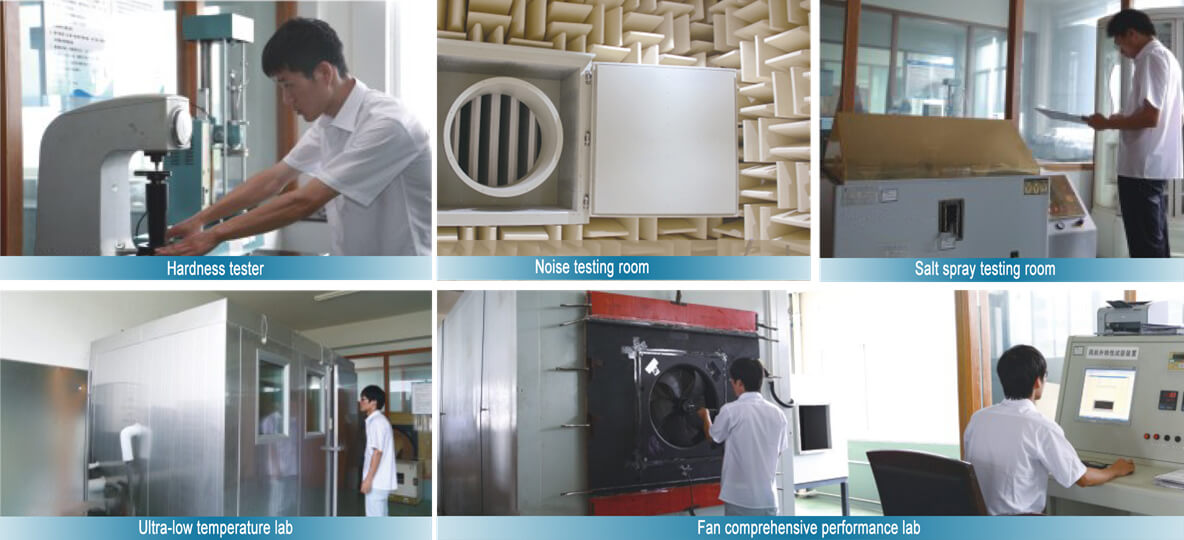

Our Quality Control
