Welcome to Belmont, our main products are: axial fans, centrifugal fans, plug fans and DC/AC motors, etc. Welcome to submit your inquiry for the latest product offer.
 |
| Quantity: | |
|---|---|
BLM-C42
Belmont
BLM-C42
Product Description
OUR PRODUCTS

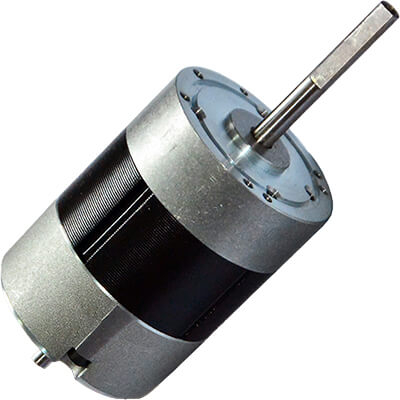

24v High Torque Brushless DC Electric Motor
Product Application: Outdoor advertising, medical equipment, logistics transmission, mechanical equipment, solar tracking device etc.
Customized manufacturing available
SPECIFICATIONS
| Model | VOLTAGE (VDC) | NO LOAD | RATED LOAD | TORQUE (Nm) | Cogging Torque (Nm) | Power (W) | LENGTH (mm) | ||
CURRENT (mA) | SPEED (r/min) | CURRENT (A) | SPEED (r/min) | ||||||
BLM-C42-1 | 24 | 240 | 3550 | 1.31 | 3000 | 0.07 | 0.05 | 22 | 56.5 |
BLM-C42-2 | 24 | 31 | 4733 | 1.75 | 4000 | 0.07 | 0.05 | 29 | 56.5 |
BLM-C42-3 | 24 | 390 | 5917 | 2.18 | 5000 | 0.07 | 0.05 | 37 | 56.5 |
BLM-C42-4 | 24 | 22 | 2366 | 1.25 | 2000 | 0.1 | 0.07 | 21 | 66.5 |
BLM-C42-5 | 24 | 300 | 3550 | 1.87 | 3000 | 0.1 | 0.07 | 31 | 66.5 |
BLM-C42-6 | 24 | 400 | 4733 | 2.49 | 4000 | 0.1 | 0.07 | 42 | 66.5 |

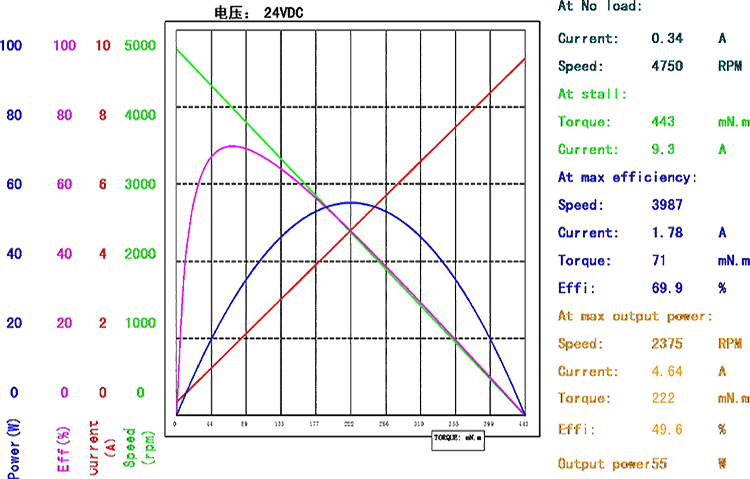

PERFORMANCE CURVE

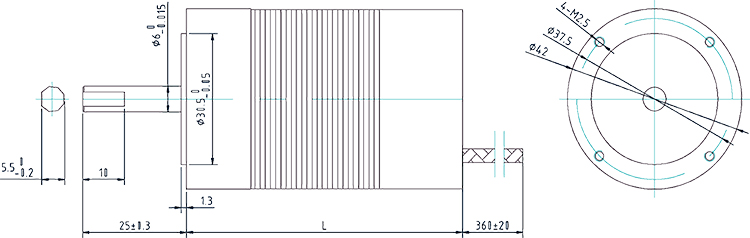

OUTLINE DRAWING
PACKING & SHIPPING
We use reliable packaging and logistics, for customer to receive the products in good condition. Also, we could customize according to your requirements.
Introduction
◆ Founded in 2001 to provide high-quality products and sourcing solutions at a competitive cost.
◆ Manufacturing Facilities
Manufacturing plants located in multiple regions in China
◆ Service locations:
Fort Wayne, Indiana, USA(Responsible for after-sales service of products)
Changzhou, Jiangsu, China
◆ 2021 sales of $650 million
In 2021, 1 million fans and 600,000 motors will be produced
◆ The total number of employees is 268, including 20 technical teams and 26 sales team
Our Quality Control
◆ Quality is everyone’s job → TQM -Total Quality Management
◆ Higher quality means lower costs → TQC – Total Quality Cost Control.
◆ Continuous Improvement → ISO9000 & Six Sigma Tools
◆ Working with customer as a Team → Teamwork & Two Way Communications
Our customers
Your satisfaction is always our goal
