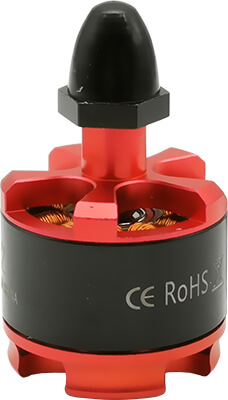

BLM-2212 DC Brushless Motor For drone

Quantity:
  • BLM-2212
  • Belmont
  • BLM-2212

Product Description


Our Products


BM-134(平台正文)

The integrated motor shaft design is adopted to protect the motor shaft more effectively.

The new paddle design is adopted, the performance is more stable, and the disassembly is more convenient.

the use of 0.2mm iron core, lower load temperature, efficiency.

Every motor has undergone strict dynamic balance test before leaving the factory. It also uses high-quality silicon steel sheets, bearings, aluminum and wire rods to achieve high performance and durability. The motors are manufactured according to export standards and testing standards. The surface treatment is in line with European RoSH environmental standards.


Specifications

Model

Voltage

(VDC)

No Load

Rated Load

Toque

(N.m)

Power

(W)

Diameter

(mm)

Length

(mm)

Current

(A)

Speed

(r/min)

Current

(A)

Speed

(r/min)

BLM-2212

11.1(3S)

0.35

16500

1.76

13760

0.03

8.5

28

162

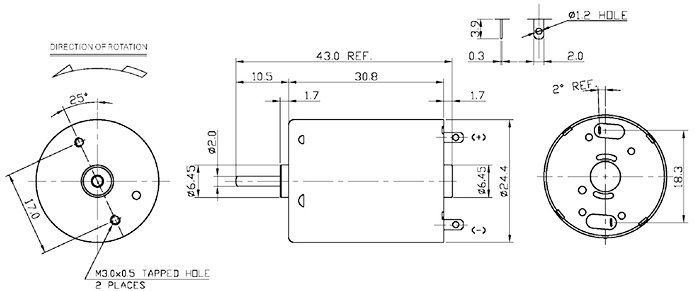

Outline Drawing

BM-134(平台外形图)


Packing & Shipping


We use reliable packaging and logistics, for customer to receive the products in good condition. Also, we could customize according to your requirements.
