BLM-C56WS
Belmont
BLM-C56WS
Product Description
OUR PRODUCTS

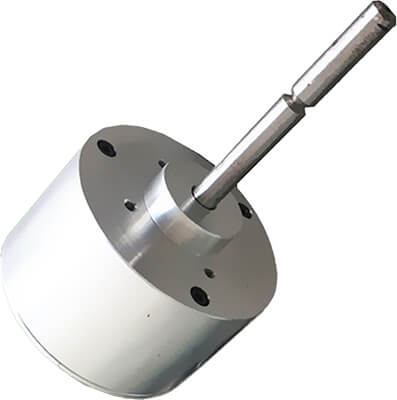

12V High Torque Brushless DC Motor
Product Application: medical equipment, Air cleaner etc.
Customized manufacturing available
SPECIFICATIONS
Model | VOLTAGE (VDC) | NO LOAD | RATED LOAD | TORQUE (Nm) | Cogging Torque (Nm) | Power (W) | LENGTH (mm) | ||
CURRENT (mA) | SPEED (r/min) | CURRENT (mA) | SPEED (r/min) | ||||||
BLM-C56WS-1 | 12 | 170 | 3601 | 910 | 3000 | 0.025 | 0.005 | 8 | 33 |
BLM-C56WS-2 | 12 | 230 | 4801 | 1210 | 4000 | 0.025 | 0.005 | 10 | 33 |
BLM-C56WS-3 | 12 | 290 | 6002 | 1510 | 5000 | 0.025 | 0.005 | 13 | 33 |
BLM-C56WS-4 | 24 | 90 | 3601 | 450 | 3000 | 0.025 | 0.005 | 8 | 33 |
BLM-C56WS-5 | 24 | 120 | 4801 | 610 | 4000 | 0.025 | 0.005 | 10 | 33 |
BLM-C56WS-6 | 24 | 140 | 6002 | 760 | 5000 | 0.025 | 0.005 | 13 | 33 |
PERFORMANCE CURVE

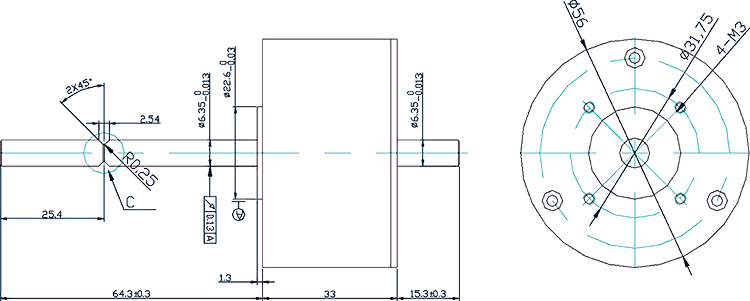

OUTLINE DRAWING
PACKING & SHIPPING
We use reliable packaging and logistics, for customer to receive the products in good condition. Also, we could customize according to your requirements.
Introduction
◆ Founded in 2001 to provide high-quality products and sourcing solutions at a competitive cost.
◆ Manufacturing Facilities
Manufacturing plants located in multiple regions in China
◆ Service locations:
Fort Wayne, Indiana, USA(Responsible for after-sales service of products)
Changzhou, Jiangsu, China
◆ 2021 sales of $650 million
In 2021, 1 million fans and 600,000 motors will be produced
◆ The total number of employees is 268, including 20 technical teams and 26 sales team
Our Quality Control
◆ Quality is everyone’s job → TQM -Total Quality Management
◆ Higher quality means lower costs → TQC – Total Quality Cost Control.
◆ Continuous Improvement → ISO9000 & Six Sigma Tools
◆ Working with customer as a Team → Teamwork & Two Way Communications
Our customers
Your satisfaction is always our goal
