Product Description
OUR PRODUCTS

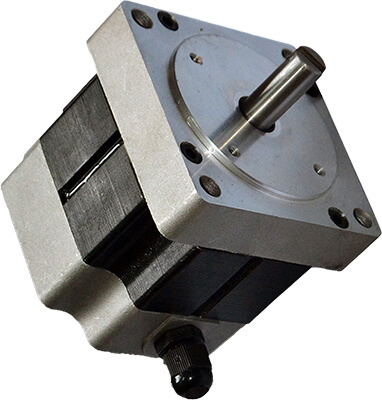

48V High Speed Low Torque Brushless DC Electric Motor
Product Application: brake motor, medical equipment, mechanical equipment, solar tracking device etc.
Customized manufacturing available
SPECIFICATIONS
| Model | VOLTAGE (VDC) | NO LOAD | RATED LOAD | TORQUE (Nm) | Cogging Torque (Nm) | Power (W) | LENGTH (mm) | ||
CURRENT (A) | SPEED (r/min) | CURRENT (A) | SPEED (r/min) | ||||||
BLM-A90-1 | 48 | 1.24 | 2941 | 7.27 | 2500 | 1 | 0.08 | 262 | 71 |
BLM-A90-2 | 48 | 2.47 | 2941 | 14.54 | 2500 | 2 | 0.16 | 524 | 96 |
BLM-A90-3 | 150 | 1.19 | 2941 | 6.98 | 2500 | 3 | 0.24 | 785 | 121 |
BLM-A90-4 | 48 | 1.19 | 5000 | 6.98 | 4000 | 0.6 | 0.03 | 251 | 71 |
BLM-A90-5 | 48 | 2.37 | 5000 | 13.96 | 4000 | 1.2 | 0.06 | 503 | 96 |
BLM-A90-6 | 150 | 1.14 | 5000 | 6.7 | 4000 | 1.8 | 0.09 | 754 | 121 |

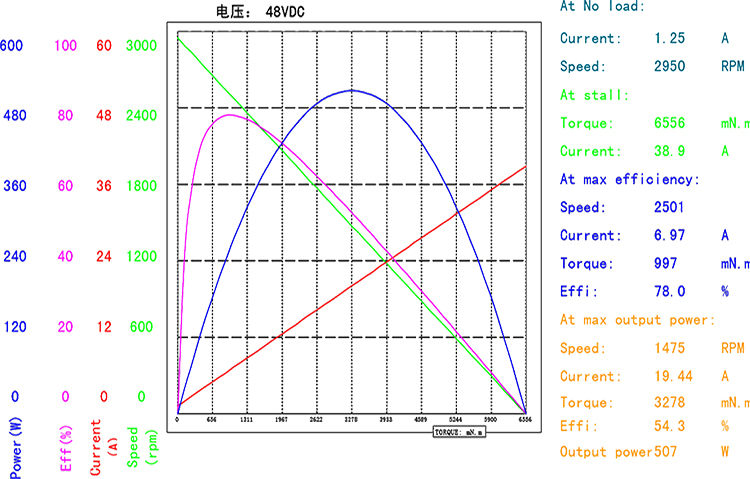

PERFORMANCE CURVE
OUTLINE DRAWING
PACKING & SHIPPING
We use reliable packaging and logistics, for customer to receive the products in good condition. Also, we could customize according to your requirements.
 |  |
 |  |
 |  |
Introduction
◆ Founded in 2001 to provide high-quality products and sourcing solutions at a competitive cost.
◆ Manufacturing Facilities
Manufacturing plants located in multiple regions in China
◆ Service locations:
Fort Wayne, Indiana, USA(Responsible for after-sales service of products)
Changzhou, Jiangsu, China
◆ 2021 sales of $650 million
In 2021, 1 million fans and 600,000 motors will be produced
◆ The total number of employees is 268, including 20 technical teams and 26 sales team
Our Quality Control
◆ Quality is everyone’s job → TQM -Total Quality Management
◆ Higher quality means lower costs → TQC – Total Quality Cost Control.
◆ Continuous Improvement → ISO9000 & Six Sigma Tools
◆ Working with customer as a Team → Teamwork & Two Way Communications
Our customers
Your satisfaction is always our goal
