BLM-D42IPM
Belmont
BLM-D42IPM
Product Description
OUR PRODUCTS

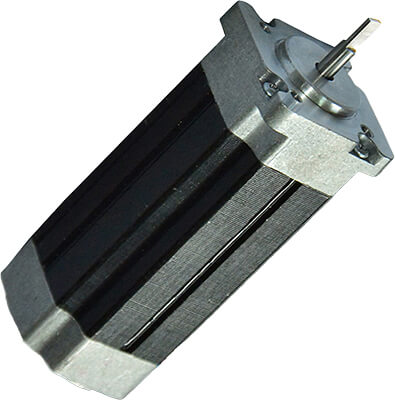

24V High Torque Brushless DC Electric Motor
Product Application: medical equipment, logistics transmission, mechanical equipment, solar tracking device etc.
Customized manufacturing available
SPECIFICATIONS
| Model | VOLTAGE (VDC) | NO LOAD | RATED LOAD | TORQUE (Nm) | Cogging Torque (Nm) | Power (W) | LENGTH (mm) | ||
CURRENT (mA) | SPEED (r/min) | CURRENT (A) | SPEED (r/min) | ||||||
BLM-D42IPM-1 | 24 | 290 | 4800 | 1.82 | 4000 | 0.075 | 0.01 | 31 | 50 |
BLM-D42IPM-2 | 24 | 590 | 4800 | 3.64 | 4000 | 0.15 | 0.02 | 63 | 70 |
BLM-D42IPM-3 | 24 | 980 | 4800 | 6.06 | 4000 | 0.25 | 0.035 | 105 | 100 |
BLM-D42IPM-4 | 24 | 290 | 3550 | 1.82 | 3000 | 0.1 | 0.02 | 31 | 50 |
BLM-D42IPM-5 | 24 | 590 | 3550 | 3.64 | 3000 | 0.2 | 0.04 | 63 | 70 |
BLM-D42IPM-6 | 24 | 1030 | 3550 | 6.36 | 3000 | 0.35 | 0.07 | 110 | 100 |

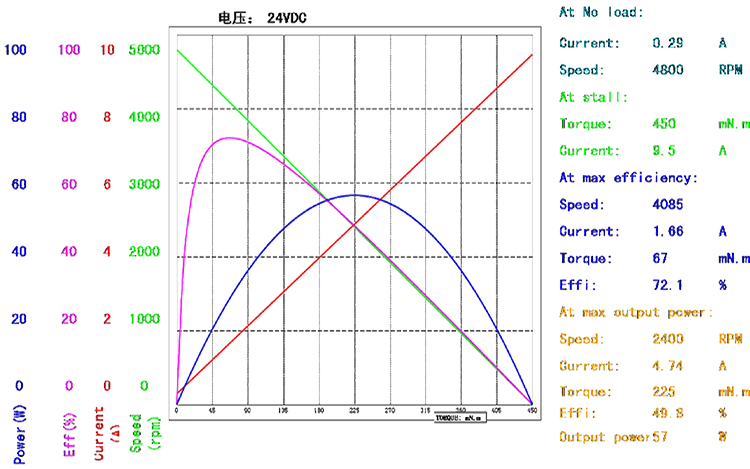

PERFORMANCE CURVE

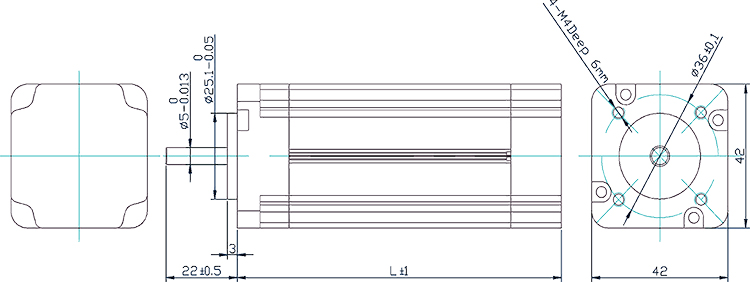

OUTLINE DRAWING
PACKING & SHIPPING
We use reliable packaging and logistics, for customer to receive the products in good condition. Also, we could customize according to your requirements.
