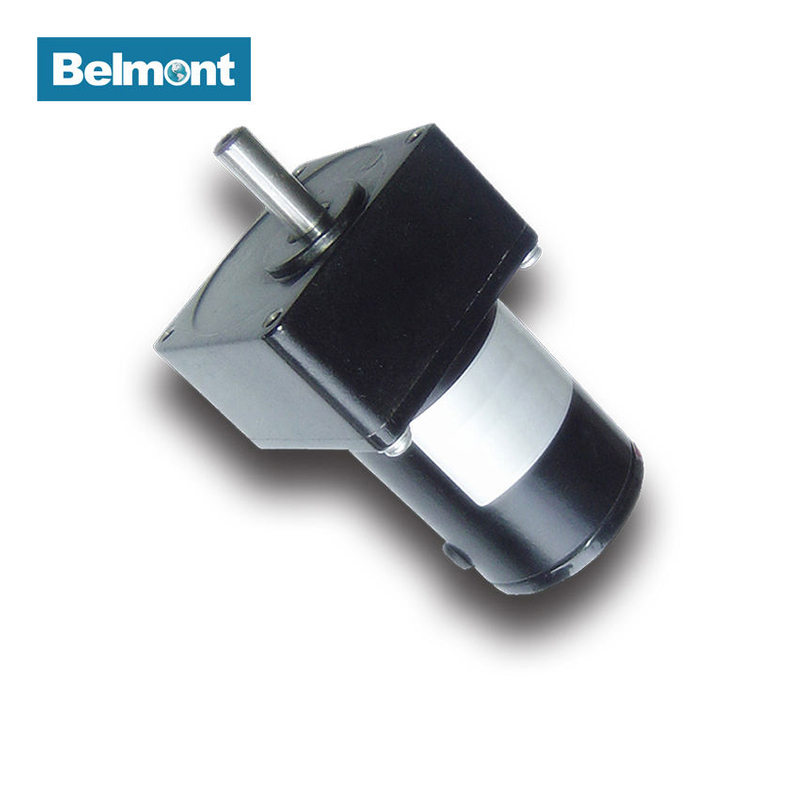

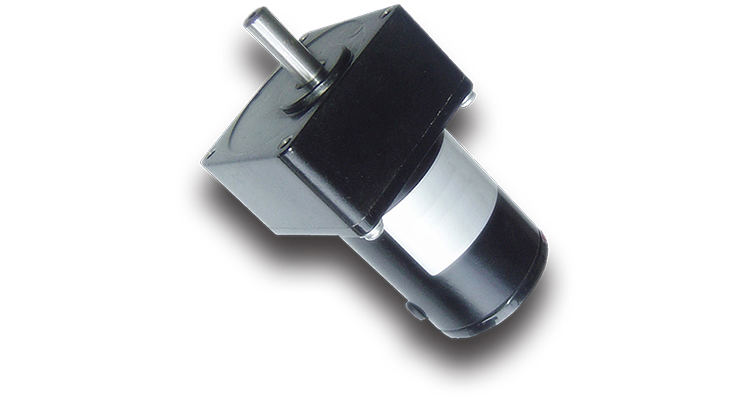

24V Low RPM High Torque DC Gear Motor
Product Application: Outdoor advertising, medical equipment, logistics transmission, mechanical equipment, solar tracking device, precision equipment etc.
Customized manufacturing available
RATIO TORQUE(Nm) SPEED(r/min) | 1/10 | 1/15 | 1/20 | 1/25 | 1/40 | 1/75 | 1/100 | VOLTAGE (VDC) | CURRENT(mA) | LENGTH (mm) |
| 0.2 | 0.3 | 0.4 | 0.5 | 0.8 | 0.8 | 0.8 | NO LOAD | RATED LOAD |
| BMM-70JB+57ZYN-1 | 100 | 66 | 50 | 40 | 25 | 13 | 10 | 24 | ≤300 | ≤1700 | 131 |
| BMM-70JB+57ZYN-2 | 200 | 133 | 150 | 80 | 50 | 26 | 20 | 24 | ≤500 | ≤3400 | 131 |
| BMM-70JB+57ZYN-3 | 300 | 200 | 200 | 120 | 75 | 40 | 30 | 24 | ≤700 | ≤5100 | 131 |
RATIO TORQUE(Nm) SPEED(r/min) | 1/10 | 1/15 | 1/20 | 1/25 | 1/40 | 1/75 | 1/100 | VOLTAGE (VDC) | CURRENT(mA) | LENGTH (mm) |
| 1.5 | 2 | 3 | 3.5 | 5.5 | 8 | 8 | NO LOAD | RATED LOAD |
| BMM-70JB+57ZYN-4 | 100 | 66 | 50 | 40 | 25 | 13 | 10 | 24 | ≤300 | ≤1200 | 121 |
| BMM-70JB+57ZYN-5 | 200 | 133 | 150 | 80 | 50 | 26 | 20 | 24 | ≤500 | ≤2400 | 121 |
| BMM-70JB+57ZYN-6 | 300 | 200 | 200 | 120 | 75 | 40 | 30 | 24 | ≤700 | ≤3600 | 121 |
We use reliable packaging and logistics, for customer to receive the products in good condition. Also, we could customize according to your requirements.
