BPM-80JBX+88ZYN
Belmont
BPM-80JBX+88ZYN
Product Description

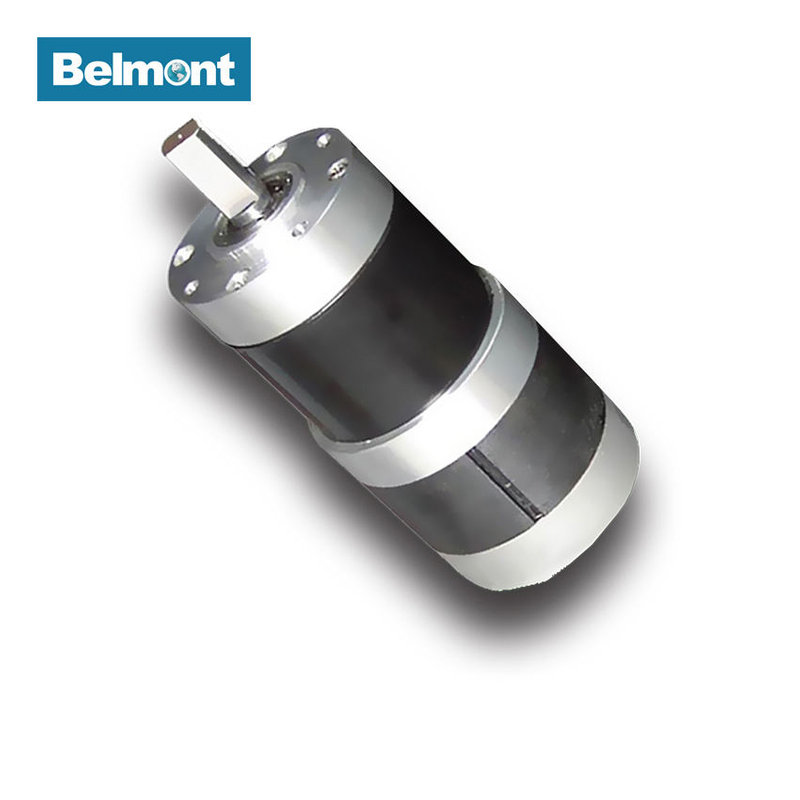

24V DC Motor Low Rpm High Torque DC Planetary Reduction Gear Motor
Product Application: Outdoor advertising, medical equipment, logistics transmission, mechanical equipment, solar tracking device, precision equipment etc.
Customized manufacturing available
| Model | VOLTAGE (VDC) | NO LOAD | RATED LOAD | TORQUE (Nm) | RATIO | STAGE | Power (W) | LENGTH (mm) | ||
CURRENT (mA) | SPEED (r/min) | CURRENT (mA) | SPEED (r/min) | |||||||
| BPM-80JBX+88ZYN-01 | 24 | 3120 | 842 | 18700 | 699 | 3.9 | 4.29 | 1 | 283 | 271 |
| BPM-80JBX+88ZYN-02 | 24 | 3120 | 698 | 18700 | 579 | 4.7 | 5.18 | 1 | 283 | 271 |
| BMM80JBX+88ZYN-03 | 24 | 3120 | 535 | 18700 | 444 | 6.1 | 6.75 | 1 | 283 | 271 |
| BPM-80JBX+88ZYN-04 | 24 | 3460 | 201 | 18700 | 167 | 14.6 | 18 | 2 | 254 | 292 |
| BPM-80JBX+88ZYN-05 | 24 | 3460 | 125 | 18700 | 103 | 23.5 | 29 | 2 | 254 | 292 |
| BPM-80JBX+88ZYN-06 | 24 | 3460 | 103 | 18700 | 86 | 28.4 | 35 | 2 | 254 | 292 |
| BPM-80JBX+88ZYN-07 | 24 | 3840 | 46 | 18700 | 38 | 57.7 | 79 | 3 | 229 | 314 |
| BPM-80JBX+88ZYN-08 | 24 | 3840 | 24 | 18700 | 20 | 109.5 | 150 | 3 | 229 | 314 |
| BPM-80JBX+88ZYN-09 | 24 | 3840 | 15 | 18700 | 13 | 172.3 | 236 | 3 | 229 | 314 |
| BPM-80JBX+88ZYN-10 | 24 | 4320 | 7 | 18700 | 6 | 345.2 | 531 | 4 | 204 | 335 |
| BPM-80JBX+88ZYN-11 | 24 | 4320 | 4 | 18700 | 4 | 543.4 | 836 | 4 | 204 | 335 |
| Model | VOLTAGE (VDC) | NO LOAD | RATED LOAD | TORQUE (Nm) | EMF constant | torque constant | Power (W) | LENGTH (mm) | ||
CURRENT (A) | SPEED (r/min) | CURRENT (A) | SPEED (r/min) | |||||||
| BPM-88ZYN | 24 | 2.8 | 3614 | 18.7 | 3000 | 1 | 0.0065887 | 0.0629 | 314 | 108 |
We use reliable packaging and logistics, for customer to receive the products in good condition. Also, we could customize according to your requirements.
