BPM-120JBX+120ZYT
Belmont
BPM-120JBX+120ZYT
Product Description

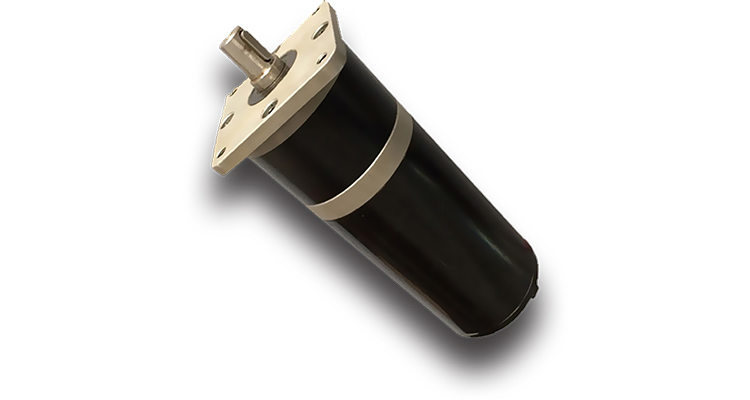

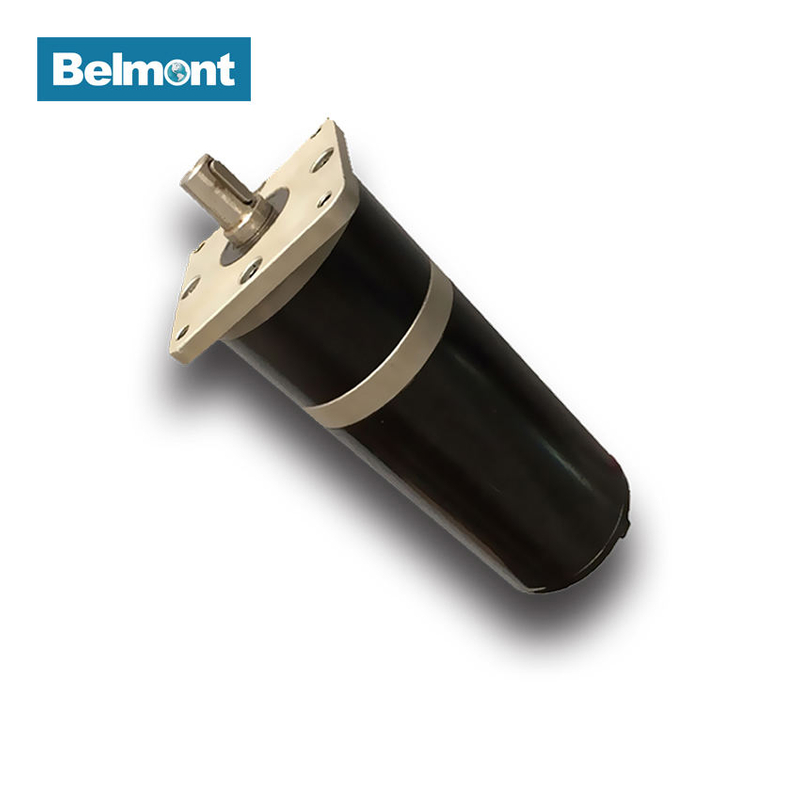

24V High Torque DC Planetary Reduction Gear Motor
Product Application: Outdoor advertising, medical equipment, logistics transmission, mechanical equipment, solar tracking device, precision equipment etc.
Customized manufacturing available
| Model | VOLTAGE (VDC) | NO LOAD | RATED LOAD | TORQUE (Nm) | RATIO | STAGE | Power (W) | LENGTH (mm) | ||
CURRENT (mA) | SPEED (r/min) | CURRENT (A) | SPEED (r/min) | |||||||
| BPM-120JBX+120ZYT-01 | 24 | 4850 | 497 | 21.82 | 412 | 8.7 | 4.85 | 1 | 377 | 287 |
| BPM-120JBX+120ZYT-02 | 24 | 4850 | 402 | 21.82 | 333 | 10.8 | 6 | 1 | 377 | 287 |
| BPM-120JBX+120ZYT-03 | 24 | 4850 | 296 | 21.82 | 246 | 14.7 | 8.14 | 1 | 377 | 287 |
| BPM-120JBX+120ZYT-04 | 24 | 5390 | 105 | 21.82 | 87 | 37.3 | 23 | 2 | 339 | 309 |
| BPM-120JBX+120ZYT-05 | 24 | 5390 | 67 | 21.82 | 56 | 58.3 | 36 | 2 | 339 | 309 |
| BPM-120JBX+120ZYT-06 | 24 | 5390 | 49 | 21.82 | 41 | 79.4 | 49 | 2 | 339 | 309 |
| BPM-120JBX+120ZYT-07 | 24 | 5390 | 17 | 21.82 | 14 | 205.9 | 141 | 3 | 306 | 331 |
| BPM-120JBX+120ZYT-08 | 24 | 5390 | 11 | 21.82 | 9 | 315.4 | 216 | 3 | 306 | 331 |
| BPM-120JBX+120ZYT-09 | 24 | 5390 | 6 | 21.82 | 5 | 581.1 | 398 | 3 | 306 | 331 |
| BPM-120JBX+120ZYT-10 | 24 | 6710 | 3 | 21.82 | 2 | 1098.5 | 845 | 4 | 272 | 353 |
| BPM-120JBX+120ZYT-11 | 24 | 6710 | 2 | 21.82 | 1 | 2024.1 | 1557 | 4 | 272 | 353 |

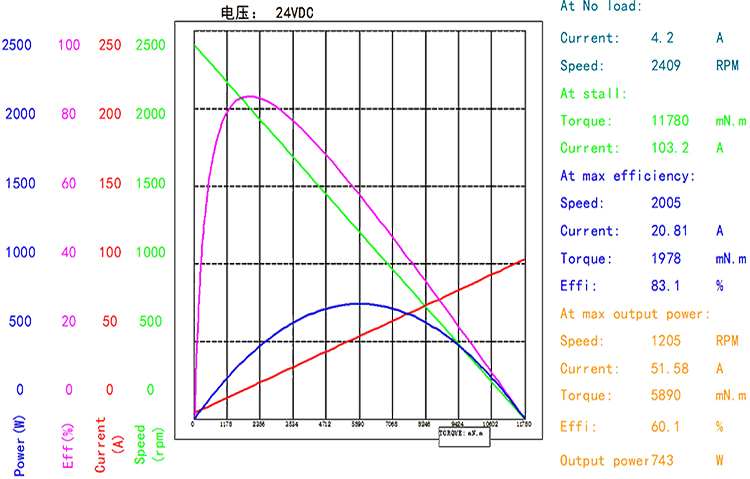

| Model | VOLTAGE (VDC) | NO LOAD | RATED LOAD | TORQUE (Nm) | EMF constant | torque constant | Power (W) | LENGTH (mm) | ||
CURRENT (A) | SPEED (r/min) | CURRENT (A) | SPEED (r/min) | |||||||
| BPM-120ZYT | 24 | 4.36 | 2409 | 21.82 | 2000 | 2 | 0.012 | 0.1146 | 628 | 224 |
We use reliable packaging and logistics, for customer to receive the products in good condition. Also, we could customize according to your requirements.
