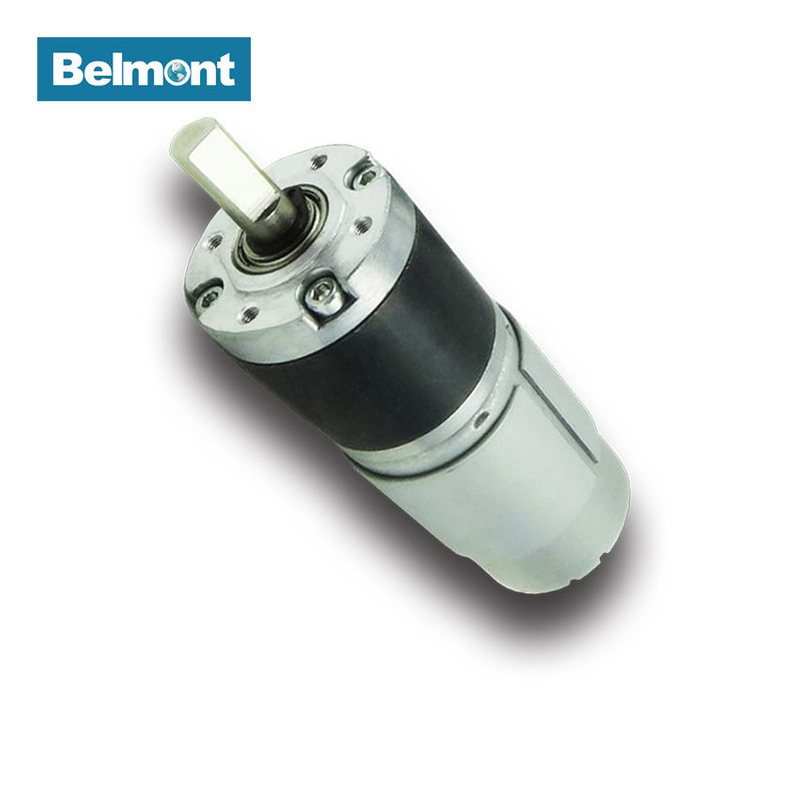

BPM-A92JBX+88ZYT 24V High Torque DC Planetary Reduction Gear Motor

Product Application: Outdoor advertising, medical equipment, logistics transmission, mechanical equipment, solar tracking device, precision equipment etc.
Customized manufacturing available

Quantity:
  • BPM-A92JBX+88ZYT
  • BPM-A92JBX+88ZYT

Product Description


Our Products

24V High Torque DC Planetary Reduction Gear Motor

Product Application: Outdoor advertising, medical equipment, logistics transmission, mechanical equipment, solar tracking device, precision equipment etc.

Customized manufacturing available

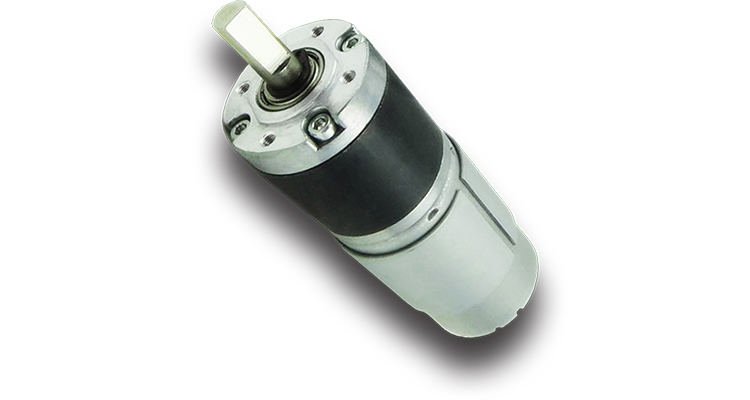

BM-584(平台正文)


Specifications

Model

VOLTAGE

(VDC)
NO LOAD RATED LOAD

TORQUE

(Nm)
RATIO STAGE

Power

(W)

LENGTH

(mm)

CURRENT

(mA)

SPEED

(r/min)

CURRENT

(A)

SPEED

(r/min)
BPM-A92JBX+88ZYT-01 24 1560 850 9.35 706 1.9 4.25 1 141 181
BPM-A92JBX+88ZYT-02 24 1560 707 9.35 587 2.3 5011 1 141 181
BPM-A92JBX+88ZYT-03 24 1560 504 9.35 418 3.2 7.17 1 141 181
BPM-A92JBX+88ZYT-04 24 1730 201 9.35 167 7.3 18 2 127 200
BPM-A92JBX+88ZYT-05 24 1730 139 9.35 115 10.5 26 2 127 200
BPM-A92JBX+88ZYT-06 24 1730 100 9.35 83 14.6 36 2 127 218
BPM-A92JBX+88ZYT-07 24 1920 47 9.35 39 28.1 77 3 115 218
BPM-A92JBX+88ZYT-08 24 1920 27 9.35 22 48.9 134 3 115 218
BPM-A92JBX+88ZYT-09 24 1920 17 9.35 14 79.6 218 3 115 218
BPM-A92JBX+88ZYT-10 24 1920 9 9.35 7 154.0 422 3 115 218
BPM-A92JBX+88ZYT-11 24 2160 7 9.35 5 178.8 550 4 102 237
BPM-A92JBX+88ZYT-12 24 2160 4 9.35 3 301.6 928 4 102 237
Model

VOLTAGE

(VDC)
NO LOAD RATED LOAD

TORQUE

(Nm)
RATIO STAGE

Power

(W)

LENGTH

(mm)

CURRENT

(A)

SPEED

(r/min)

CURRENT

(A)

SPEED

(r/min)
BPM-88ZYT 24 1.4 3614 9.35 3000 0.5 0.0066 0.0629 157 124


Performance Curve

BMM-A92JBX+88ZYT(官网曲线图)

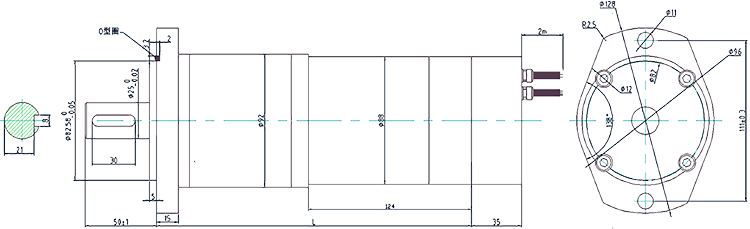

Outline Drawing

BMM-A92JBX+88ZYT(官网外形图)


Packing & Shipping


We use reliable packaging and logistics, for customer to receive the products in good condition. Also, we could customize according to your requirements.
