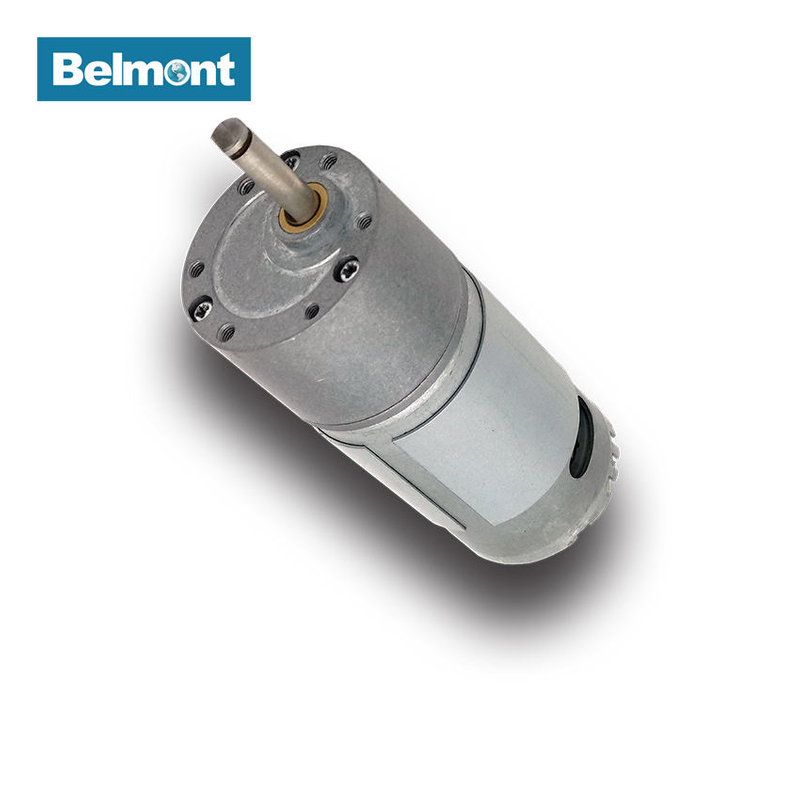

BMM-37ZYJ-36ZY 12V 24V Low RPM High Torque DC Gear Motor

Product Application: Outdoor advertising, medical equipment, logistics transmission, mechanical equipment, solar tracking device, precision equipment etc.
Customized manufacturing available

Quantity:
  • BMM-37ZYJ-36ZY
  • Belmont
  • BMM-37ZYJ-36ZY

Product Description


Our Products

12V  24V Low RPM High Torque DC Gear Motor

 Product Application: Outdoor advertising, medical equipment, logistics transmission, mechanical equipment, solar tracking device, precision equipment etc.

Customized manufacturing available




BM-223(平台正文)


Specifications

RATIO

TORQUE(Nm)

SPEED(r/min)

1/6 1/10 1/17.5 1/30 1/50 1/90 1/160 1/270 1/470 1/810

VOLTAGE

(VDC)

CURRENT(mA)

0.08 0.1 0.15 0.25 0.4 0.7 1.2 2 2 2 NO LOAD RATED LOAD
BMM-37ZYJ-36ZY -1 500 300 170 100 60 33 18 11 6 3.7 12 ≤200 ≤700
BMM-37ZYJ-36ZY -2 750 450 250 150 90 50 28 16 9 5.5 12 ≤250 ≤1000
BMM-37ZYJ-36ZY -3 1000 600 340 200 120 66 36 22 12 7.4 12 ≤350 ≤1300
BMM-37ZYJ-36ZY -4 500 300 170 100 60 33 18 11 6 3.7 24 ≤120 ≤350
BMM-37ZYJ-36ZY -5 750 450 250 150 90 50 28 16 9 5.5 24 ≤150 ≤500
BMM-37ZYJ-36ZY -6 1000 600 340 200 120 66 36 22 12 7.4 24 ≤180 ≤700


Reduction Ratio LENGTH(mm)
1/6 ~ 1/30 19.6
1/50 ~ 1/100 22.6
1/120 ~ 1/300 25.9
1/360 ~ 1/900 29

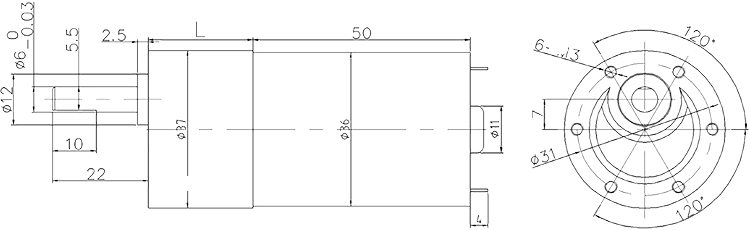

Outline Drawing

BM-223(平台外形图)



Packing & Shipping


We use reliable packaging and logistics, for customer to receive the products in good condition. Also, we could customize according to your requirements.


Packaging
