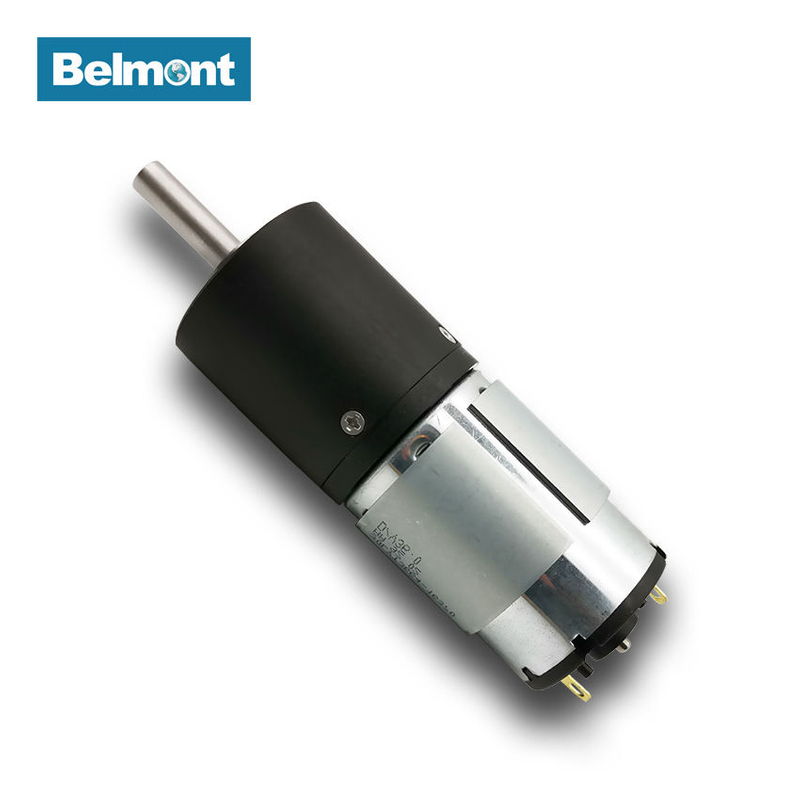

BPM-32 DC Planetary Reduction Gear Motor For Medical Device

Quantity:
  • BPM-32
  • Belmont
  • BPM-32

Product Description


Our Products

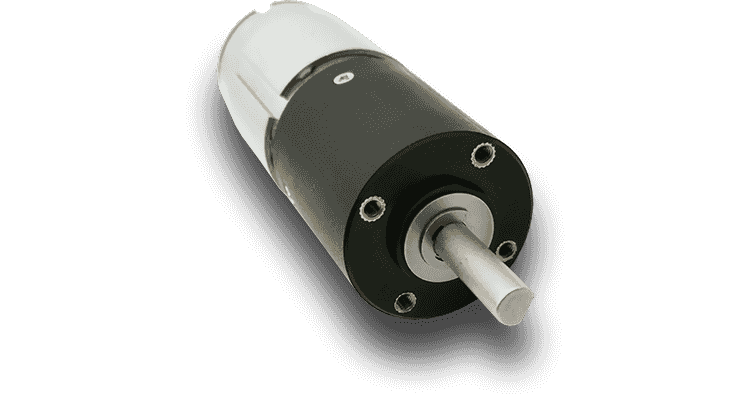

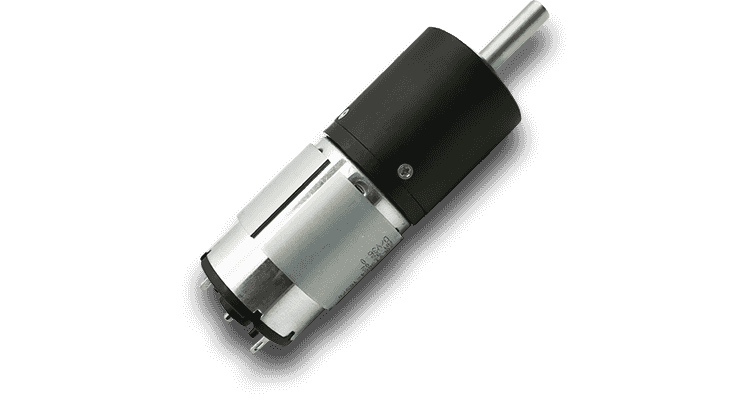

BM-588-1(平台正文)BM-588-2(平台正文)


Specifications

Model VOLTAGE
(V DC)
NO LOAD RATED LOAD TORQUE
(Nm)
STAGE RATIO Power
(W)
LENGTH
(mm)
CURRENT
(A)
SPEED
(r/min)
CURRENT
(A)
SPEED
(r/min)
BPM-32 24 0.3 270 0.5 250 0.2 1 23 30 72

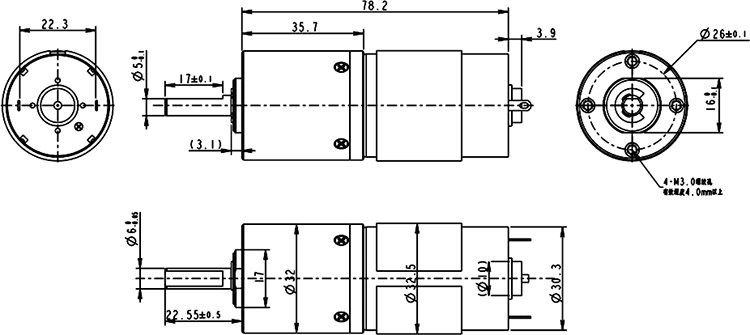

Outline Drawing

BM-588(平台外形图)


Packing & Shipping


We use reliable packaging and logistics, for customer to receive the products in good condition. Also, we could customize according to your requirements.
