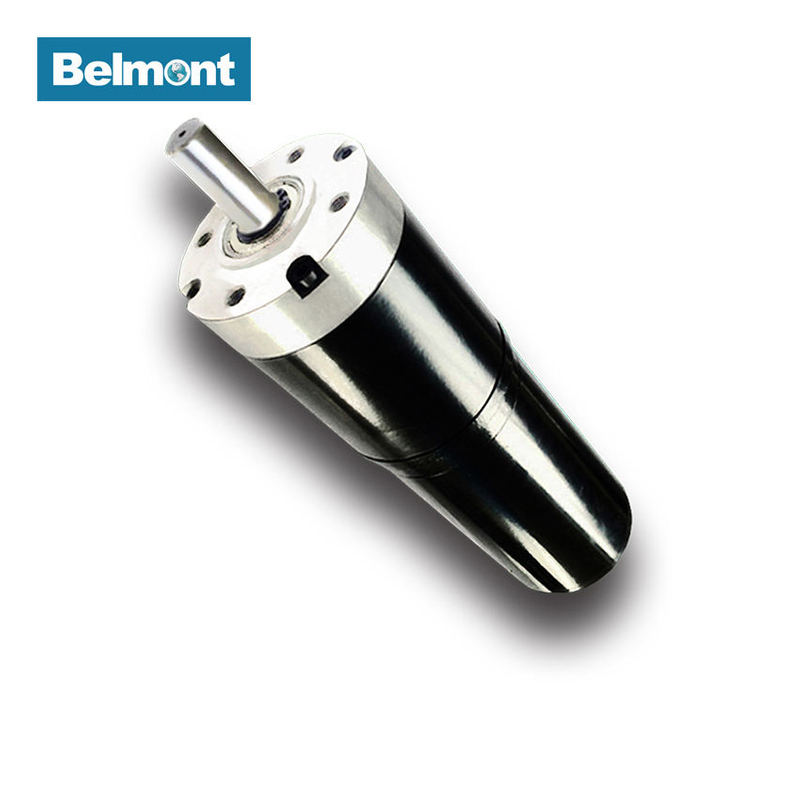

BPM-80JBX+76ZYT 24V High Torque DC Planetary Reduction Gear Motor

Product Application: Outdoor advertising, medical equipment, logistics transmission, mechanical equipment, solar tracking device, precision equipment etc.
Customized manufacturing available

Quantity:
  • BPM-80JBX+76ZYT
  • Belmont
  • BPM-80JBX+76ZYT

Product Description


Our Products

24V High Torque DC Planetary Reduction Gear Motor

Product Application: Outdoor advertising, medical equipment, logistics transmission, mechanical equipment, solar tracking device, precision equipment etc.

Customized manufacturing available

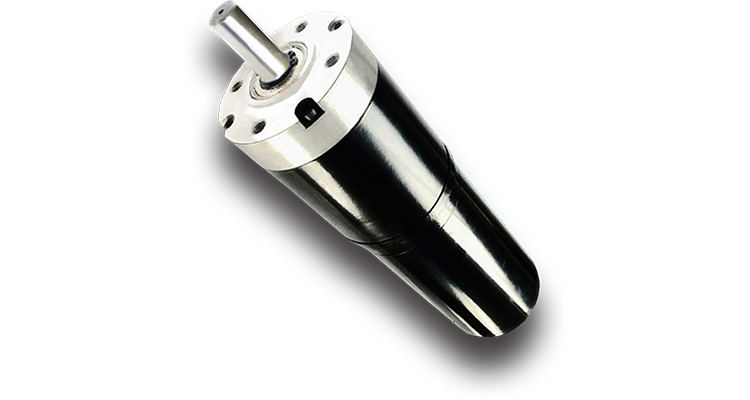

BM-228(平台正文)


Specifications

Model

VOLTAGE

(VDC)
NO LOAD RATED LOAD

TORQUE

(Nm)
RATIO STAGE

Power

(W)

LENGTH

(mm)

CURRENT

(mA)

SPEED

(r/min)

CURRENT

(mA)

SPEED

(r/min)
BPM-80JBX+76ZYT-01 24 1250 842 7480 699 1.5 4.29 1 113 169
BPM-80JBX+76ZYT-02 24 1250 698 7480 579 1.9 5.18 1 113 169
BPM-80JBX+76ZYT-03 24 1250 535 7480 444 2.4 6.75 1 113 169
BPM-80JBX+76ZYT-04 24 1390 201 7480 167 5.8 18 2 102 190
BPM-80JBX+76ZYT-05 24 1390 125 7480 103 9.4 29 2 102 190
BPM-80JBX+76ZYT-06 24 1390 103 7480 86 11.3 35 2 102 190
BPM-80JBX+76ZYT-07 24 1540 46 7480 38 12.1 79 3 92 212
BPM-80JBX+76ZYT-08 24 1540 24 7480 20 43.8 150 3 92 212
BPM-80JBX+76ZYT-09 24 1540 15 7480 13 68.9 236 3 92 212
BPM-80JBX+76ZYT-10 24 1730 7 7480 6 138.1 531 4 82 233
BPM-80JBX+76ZYT-11 24 1730 4 7480 4 217.4 836 4 82 233
Model

VOLTAGE

(VDC)
NO LOAD RATED LOAD

TORQUE

(Nm)
EMF constant Torque constant

Power

(W)

LENGTH

(mm)

CURRENT

(mA)

SPEED

(r/min)

CURRENT

(mA)

SPEED

(r/min)
BPM--76ZYT 24 1120 3614 7480 3000 0.4 0.0065887 0.0629 126 115

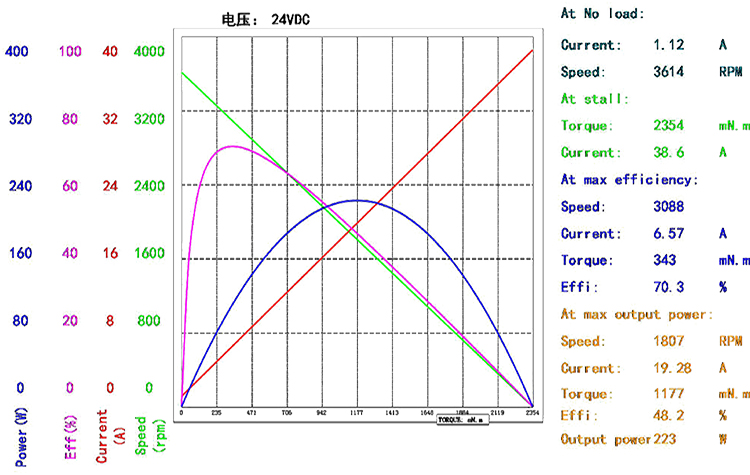

Performance Curve

BMM-80JBX+76ZYT(官网曲线图)

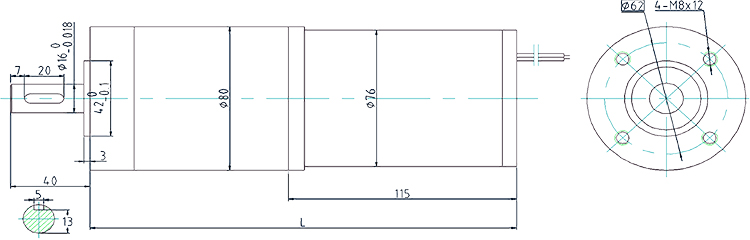

Outline Drawing

BMM-80JBX+76ZYT(官网外形图)


Packing & Shipping


We use reliable packaging and logistics, for customer to receive the products in good condition. Also, we could customize according to your requirements.


Packaging
