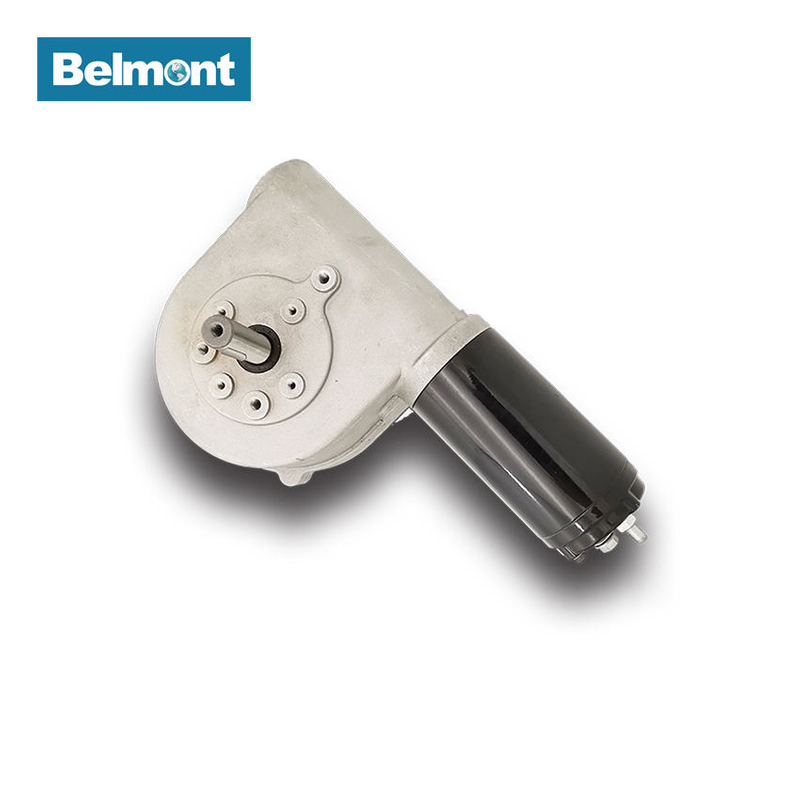

12V 24V High Torque Worm Gear DC Motor
Product Application: Outdoor advertising, medical equipment, logistics transmission, mechanical equipment, solar tracking device, precision equipment etc.
Customized manufacturing available
| VOLTAGE (VDC) | NO LOAD | RATED LOAD | TORQUE (Nm) | Max. peak torque | LENGTH (mm) |
CURRENT (mA) | SPEED (r/min) | CURRENT (mA) | SPEED (r/min) |
BMM-DSM90-1 | 12 | 20 | 38 | 150 | 25 | 135 | 200 | 317 |
BMM-DSM90-2 | 24 | 10 | 38 | 75 | 25 | 135 | 200 | 317 |
BMM-DSM90-3 | 12 | 15 | 30 | 80 | 20 | 80 | 150 | 317 |
We use reliable packaging and logistics, for customer to receive the products in good condition. Also, we could customize according to your requirements.
